Wiring Diagram; Load Capacity - F&F FW-STR1D Manual

Roller-blind controller 230 v ac

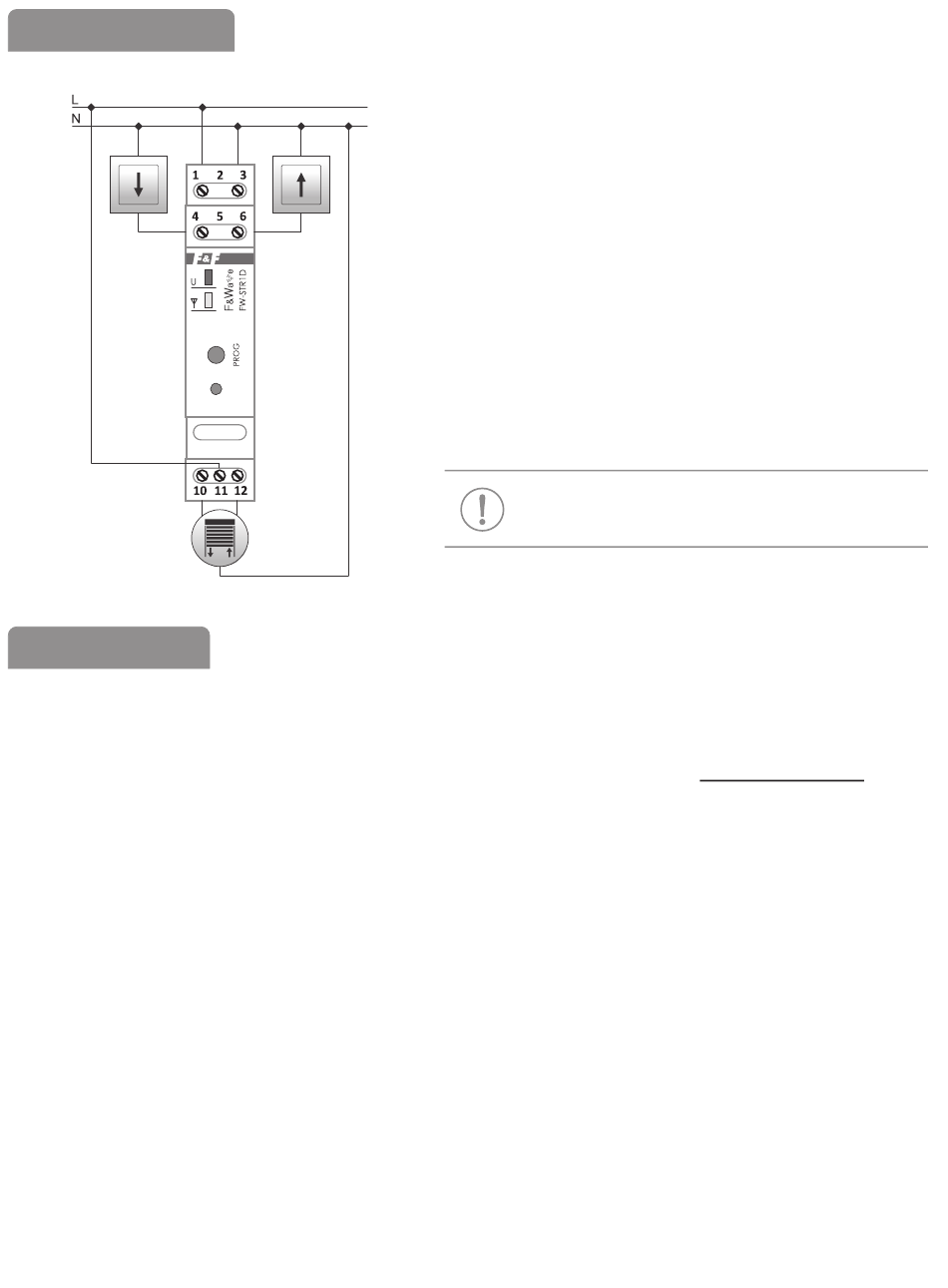

Wiring diagram

1.5 A/250 V (AC-3)

1 - L power supply

3 - N power supply

4 - control input triggered with level L

or N - direction DOWN

6 - control input triggered with level L

or N - direction UP

10 - output - direction DOWN

11 - motor power supply

12 - output - direction UP

Control inputs do not cooperate

with backlighted buttons.

The actual maximum load depends on the

nature and design of the receiver.

For more information visit: www.fif.com.pl.
