F&F STR-2 Quick Start Manual

Konstantynowska 79/81 95-200 Pabianice
phone/fax: (+48 42) 215 23 83 / 227 09 71 POLAND
http://www.fif.com.pl e-mail: biuro@fif.com.pl
ROLLER BLIND CONTROLLER
one-button type
WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealer or directly with us. More informa-
tion how to make a compliant can be
found on the website:
www.fif.com.pl/reklamacje 5 9 0 8 3 1 2
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the
occasion of the purchase of new equipment (in accordance with the principle
of old-for-new, regardless of brand). Electro thrown in the trash or abandoned
in nature, pose a threat to the environment and human health.
Purpose

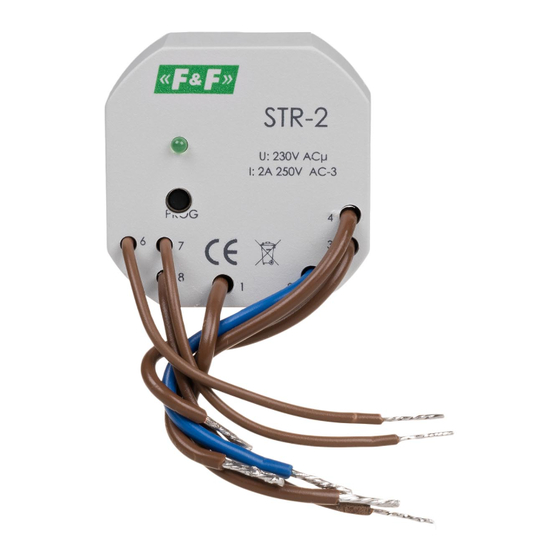

The roller blind controller STR-2 is designed for controlling roller blinds
(up and down movement) or other devices (for example, gates) that
are driven by a single-phase AC electric motor and operated by means
of momentary switches (for example, bell-pushes). The controller can
operate as an independent unit (designated for opening/closing one
roller blind) as well as the controllers can be combined into groups that
enable the central controlling of many roller blinds
STR
LOCAL
CONTROL
CENTRAL
CONTROL
Wiring diagram
1 2 3 4 6
M
L N L/N
Description of connection:
1 - 2 supply 230V (L - N)
3 supply of motor - output in to direction „UPWARDS"
4 supply of motor - output in to direction „DOWNWARDS"
6 local control - to direction „DOWNWARDS/UPWARDS"
7 local control - to direction „UPWARDS"
8 local control - to direction „DAWNWARDS"
Control inputs could be supplied from a phase cable (L) or
neutral cable (N). Make a choose of one control option for all
inputs.
- 3 -
F&F Filipowski sp. j.
STR-2
5 9 3 3 2 4
STR
LOCAL
CONTROL
7 8
L/N L/N
"
"
"?
""
""
Functioning
Supplied the relay is to sigal by shine of green LED U. The roller blind
motor is activated by the momentary switching of a current pulse (L or
N) to one of the control inputs. The motor is activated at a time
programmed previously by the user. The activation time programmed
enables the complete lifting or lowering of the roller blind. Also, there
is a possibility of stopping the rolled blind activated at a level selected
by the user (non-complete opening or closing of the roller blind).
Control inputs of relay:
Local control - buttons connected to contact 6 and control one roller
blind
Ź -upwards (opening); - downwards (closing). 
Pressing the local control push-button activates the movement of the
roller blind in a selected direction. If the roller blind is already moving,
pressing the local control push-button will stop the roller blind.
Central control - a common group of push-buttons which are connect
to contact 7 and 8 for many controllers (minimum two controllers) that
controls all roller blinds included in the central control system
Ź Ź 
- all upwards; - all downwards.
Pressing the central control push-button activates the movement of
the roller blinds in a selected direction. If one of the roller blinds is
already moving in the same direction, its movement will be continued.
If one of the roller blinds is moving in the opposite direction, this roller
blind will be first stopped and then its movement will be activated in
the direction in accordance with the command sent to the central
input.
ATTENTION! The central control enables only activating the movement
of the roller blinds in a selected direction. The roller blind will be
stopped after the programmed movement time or when any of the
local control push-buttons is pressed.
