Summary of Contents for PPI LCOPM 3

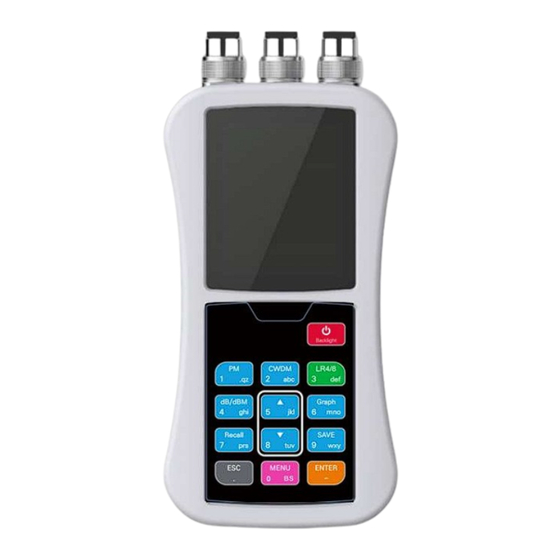

- Page 1 LCOPM 3 Optical Power Meter Operating Manual - 1-...
-
Page 2: Table Of Contents
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea content 1. Introduction ··········································································································· 1.1 Special Features ····························································································· 1.2 Accessories ···································································································· 1.3 Optical Standards ··························································································· 1.4 Specifications ································································································ 1.5 Charge Method ····························································································· 1.6 Safety information ························································································... -
Page 3: Introduction
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 1. Introduction 1.1 Special Features -Automatic wavelength and power measurement - Convenient size and weight to carry -Easy to handle - 1500 measurement data can be stored in the internal memory... -
Page 4: Accessories
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 1.2 Accessories item quantity Main unit 1 unit Rubber Case 1 piece USB Data Cable 5-pin charger (optional) operating instructions Part 1 1.3 Optical Standards... - Page 5 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 235.87 ~ 225.24 Channel 1271.00 ~ 1331.00 Channel Spacing Central Wavelength 1271.00/1291.00/1311.00/1331.00 Number of Channels wavelength 850/1310/1550 -power Parameters unit spec Measurement range...
-
Page 6: Specifications
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 1.4 Specifications -Power : 1900mAh 3.7v -Current consumption : Max. 0.25A -Power Consumption : Max. 0.925W -Weight : 260g -Width : 85.2mm -Length : 186.7mm -Display size : 2.8 inch... -
Page 7: Usage Notes
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 1.6 Usage Notes Please read the following precautions carefully and use the product correctly. If the p roduct malfunctions due to improper use without following the precautions, we will not be able to provide after-sales service for the product. -
Page 8: How To Operate
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 2. How To Operate 2.1 Explanation of Operating Keys function Power On/Off Auto/Manual Power Meter Value Display CWDM Wavelength Measurement L R4/8 Scan wavelength and display value Each time you press the button, the display switches between dB and dBm values for that wavelength. -
Page 9: Screen Information
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea Managing your settings and data 2.2 Screen Information 1) Power On/Off - With the power off Press the button for 2 seconds or more to turn the power... - Page 10 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea You can change the dB/dBm of the selected wavelength . 3 ) CWDM - CWDM function The moment you press the button, it scans the incoming light source and This function displays one wavelength at a time.
- Page 11 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 4) LR4/8 - The LR4/8 button is a function that measures the power of eight wavelengths of lig ht at once. -You can choose between Repeat Scan and Single Scan from the SCAN Type menu...
- Page 12 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 6) Graph -Press the button and then the button to display the dB/dBm values of th e scanned wavelengths in a graph, as shown below .
- Page 13 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea -On the LR8 Scan screen Press to scan CWDM4 . -On each LR8, CWDM4 Scan screen When you press the button, the Graph screen will be displayed.
- Page 14 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea -Use the arrow keys to select the data you want to check. When you press th e button, You can check the details of the saved data.
-
Page 15: Menu
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea Example) Data 1 -To cancel saving: Please press the button (when on F screen ) . 2.3 Menu When you press the button, LCOPM3 The settings related items will be display... - Page 16 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 1) Offset - Click Offset and the screen below will appear. -The reference value is 0.00dBm . -The offset can be set within the range of ±25.99 dBm .
- Page 17 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea -User can input desired Auto Power Off value and then Press the button to sa - Auto Power Off will be saved for a minimum of 5 minutes and a maximum of 600 minutes.
- Page 18 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 4) File Delete Press 'Data Delete' to erase the data stored in the device. When you press this, t he saved data will appear as shown above.
-
Page 19: System Info
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea data as shown above. -Press button if you want to erase all data or button if you want to cancel 6) System Info - You can check the product information of LCOPM3. -
Page 20: Scan Display
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea You can select it with the button. 8) Scan Display - 'Scan Display' allows you to select the wavelength to be 'Displayed' by pressing the button . -
Page 21: Graph Color
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 9) Threshold - You can change the reference line on the graph screen using 'Threshold'. You can turn the Threshold setting on or off by selecting Turn On or Turn Off . -
Page 22: Display Unit
PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.0 345, Cheomdan gwagi-ro, Buk-gu, Gwangju, Korea 11) Display Unit -This function displays the wavelength of the input light as a frequency. After changing with the button button to select.
