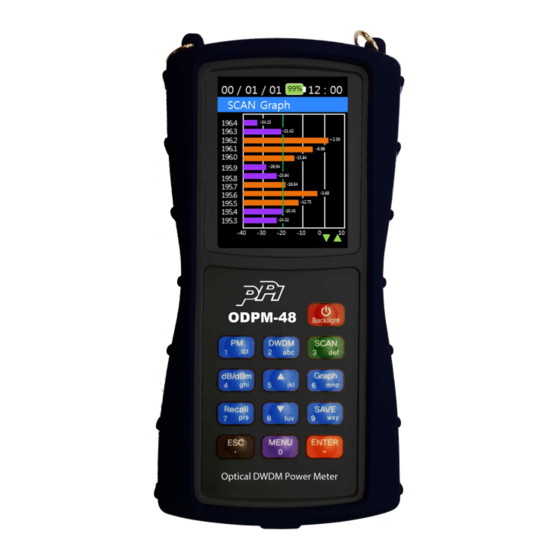

PPI ODPM-48 Operating Manual

Optical dwdm power meter
Hide thumbs Also See for ODPM-48:
Table of Contents

Advertisement

Quick Links

Download this manual
ODPM-48
Optical DWDM Power Meter
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODPM-48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PPI ODPM-48

Summary of Contents for PPI ODPM-48

  • Page 1 ODPM-48 Optical DWDM Power Meter Operating Manual...

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ····························································································· 4 1.1 Special Features ············································································· 4 1.2 Accessories ······················································································ 5 1.3 Optical Standards ··········································································· 6 1.4 Specifications ·················································································· 7 1.5 Charge Method ··············································································· 8 1.6 Safety Information ·········································································· 9 2. Getting Started ···················································································· 10 2.1 Explanation of Operating Keys ················································ 10 2.2 Screen Information ·······································································...

  • Page 4: Introduction

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1. Introduction 1.1 Special Features - Automatic wavelength & Power detection - Compact size and light weight for portable - Easy for hand operating...

  • Page 5: Accessories

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1.2 Accessories Description Quantity Body 1 EA Body Rubber Case 1 EA USB Data cable 1 EA Typical 5pin charger 1 EA User’s Manual 1 EA PPI Inc.

  • Page 6: Optical Standards

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1.3 Optical Standards - Wavelength Parameter Unit Specification Number of Channels Channel Spacing 196.4 ~ 191.7 Measurement Ranger 1526.44 ~ 1563.86 - Optical Power...

  • Page 7: Specifications

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1.4 Specifications - Input voltage : 1800mAh 3.7v - Current consumption : MAX 0.25A - Electric consumption : MAX 0.925W - Weight : 300g - Width : 77.9mm...

  • Page 8: Charge Method

    MOI (Ministry of Information) and Communication standard 5 pin charger phot. Connect the connecting point to the top of the ODPM-48 after the included cable is connected to the charger. Standard 5pin charger ※This charger is subject to change...

  • Page 9: Safety Information

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1.6 Safety Information Be sure to read this manual, and please use your equipment. The safety of the equipment is directly affected the life and performance.

  • Page 10: Getting Started

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 2. Getting Started 2.1 Explanation of Operating Keys Buttons Function Backlight Power On/Off Power display Scanned dBm value of the wavelength is represented DWDM as a data.

  • Page 11: Screen Information

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 2.2 Screen Information 1) Power ON / OFF To turn on and off. - If you press the (Backlight) button more than 2 seconds, the logo shown below appears and it moves to ‘Power Meter’...
  • Page 12 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 2) Power Meter - Power Measurement is divided into ‘Auto’ and ‘Manual’. If you select 'Auto', the instrument automatically scans the optical input and displays the wavelength which has been detected with the highest level of power.
  • Page 13 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 3) DWDM - Press the (DWDM) button, then the display will show as the figure below. - The moment you click on the (DWDM) button, the light source is scanned only once in Manual mode.
  • Page 14 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 4) SCAN - Press the (SCAN) button, the light source is scanned and the dBm value is displayed. You can select the page using PPI Inc.
  • Page 15 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 5) dB/dBm - The light source is based the moment you press the (dB/dBm) button. In other words, the light source is 0.00 dB.
  • Page 16 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 6) Graph - If you press the (Graph) button after scanning, a graph shows like the below. - If you press the (Graph) button again it returns to text mode.
  • Page 17 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 7) Recall - Press the (Recall) button, you will recall the data which you have measured and saved. - Press the (Enter) button to select the data you want, the screen display stored data.
  • Page 18 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 8) Save - When you press the (save) button, the following message shows and asks the name of the data, and the data based on the current data and time is saved if you press the (Enter) button.

  • Page 19: Menu

    PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 2.3 Menu If you press the (Menu) button, it changes to a screen where you can configure the operating environment of ODPM-48. - The menu consists of ‘SCAN SET’, ‘Off Set’, ‘Auto Power Off’, ‘Time Set’, ‘Data Delete’, ‘Data Format’, ‘System Info’, ‘Scan Display’, ‘PM SCAN...
  • Page 20 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 1) Scan Set - When you choose the SCAN Set, ‘All Scan’, ‘Selected’, ‘Odd chan.’ and ‘Even chan.’ are displayed. - ‘All Scan’ is registered 48 wavelength.
  • Page 21 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 2) Offset If you press the (Enter) button after selecting ‘Off Set’, you can set up dBm value and the optical power value on the screen.
  • Page 22 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 3) Auto Power Off - The power automatically goes off if the user does not input any key in the determined time. If you press the (Enter) button after selecting ‘Auto Power OFF’, you...
  • Page 23 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 4) Time Set If you press the (Enter) button after selecting ‘Time Set’, you can the today date and current time. - You can set the time by pressing the number key and (Enter) button.
  • Page 24 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 5) Data Delete If you press the (Enter) button after selecting ‘Delete Data’, you can delete the data. - If you press the (Enter) key after choosing the data you want to delete, the message appears on the scree to confirm to delete or not.
  • Page 25 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 6) Data Format - You can delete all saved files by formatting the transportable memory. - If you press the (Enter) key after ‘Data Format’, message appears on the screen to confirm.
  • Page 26 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 7) System Info General information about the equipment. PN(Product number), SN(Serial number), HW(Hardware version), FW(Firmware version). PPI Inc. Proprietary Print date : September. 17. 2014...
  • Page 27 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 8) Scan Display - ‘Scan Display’ consists of ‘All’ and ‘Measured’. This can be selected using - If you choose the ‘All’, from 1526.43nm to 1563.86nm values of 48 wavelengths are output.
  • Page 28 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 9) PM Scan Mode - The ‘Scan Mode’ consists of the ‘Auto’ and ‘Manual’. This can be selected using - If you choose the ‘Auto’, when selecting ‘DWDM’, shows the real time changing values​​...
  • Page 29 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 10) Threshold - You can change the baseline. - ‘–30.00dBm’ is the default setting. If you press the (Enter) button after selecting ‘Threshold’, you can the baseline.
  • Page 30 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 11) Display Unit - You can change the unit. - The ‘Display unit’ consists of the ‘Wavelength’ and ‘Frequency’. This can be selected using - If you choose the ‘Frequency’, shows the below screen.​...
  • Page 31 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea PPI Inc. Proprietary Print date : September. 17. 2014...
  • Page 32 PPI Inc. http://www.ppitek.com. TEL : +82-62-972-0116, FAX : +82-62-972-0117 Rev. 1.9 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea 12) Below Threshold - You can make the value of the 'Below threshold' either visible or invisible by choosing 'Visible' or 'Invisible'. PPI Inc. Proprietary...
  • Page 34 광주광역시 북구 첨단과기로 345 (우) 500-470 전화 : +82-62-972-0116 팩스 : +82-62-972-0117 홈페이지 : http://www.ppitek.com. 메일주소 : sales@ppitek.com 345, Cheomdangwagi-ro, Buk-gu, Gwangju, Korea TEL : +82-62-972-0116 FAX : +82-62-972-0117 Website : http://www.ppitek.com. E-mail : sales@ppitek.com...
