Merrytek MSA035 Z1 User Manual page 6

MSA050 Z1

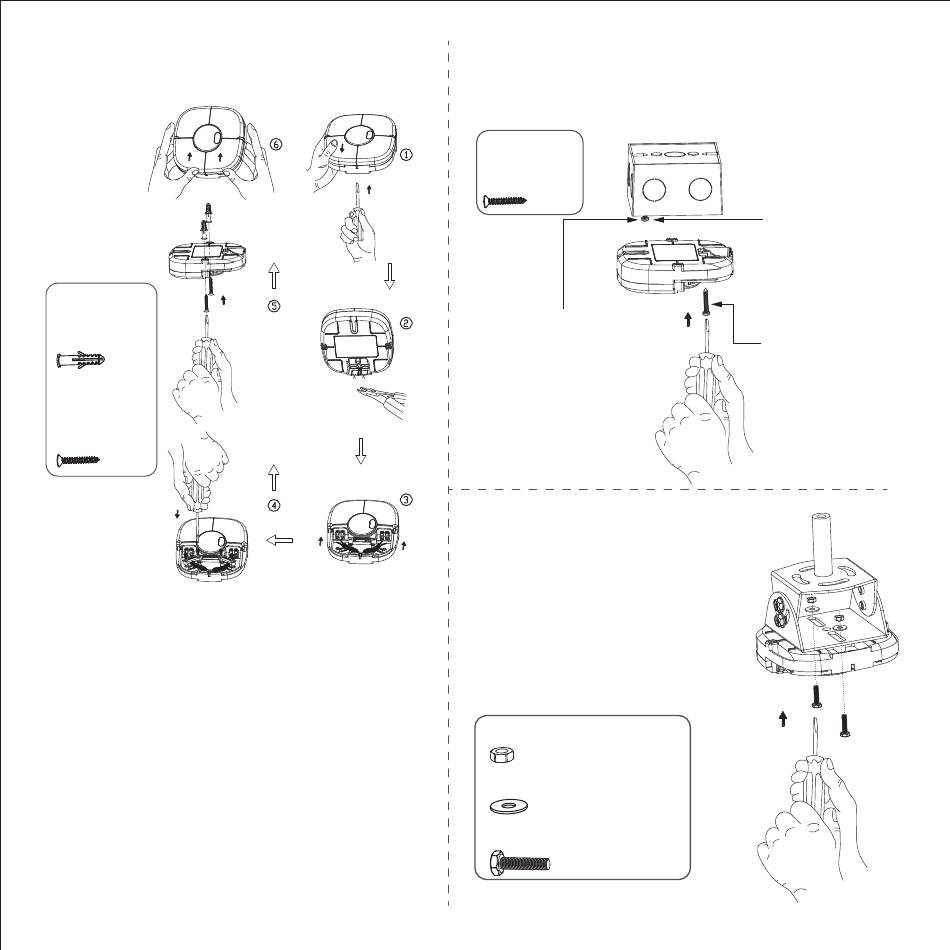

Ceiling Mounted
Plastic wall
plug:
M6x28mm
X2
Self-tapping
screws:
M3.5x25mm
X2
1. Open the corresponding position of the
wiring cover by a screw.
2. Use tools to cut off the thin wall of the
lower shell and use it as the outlet.
3. Slide off the connection cover to the
appropriate position.
4. Complete wiring and setting, and fix the
wire pressing device on the lower shell
with screws to ensure reliable and
orderly wiring.
5. Use 4mm screws to fix the product on
the required mounting surface.
6. After making sure, slide the wiring cover
on the assembly by hand.
Bottom Case Mounted
To dig a groove on the installation
surface to embed the bottom case first:
Self-tapping
screws:
M3.5x25mm
X2
A
1.
Lock a screw
A on the
cassette (the
screw should
not be too
tight).
Suspending Mounted
The suspension bracket are
non-standard accessories,
if necessary, please
contact the manufacturer
or distributor to provide.
Nut M7.5x2.8mm
X2
Spacer φ4.5xφ12x0.8mm
X2
Screw M4x16mm
X2
2.
Catch the
concealed
screw chute of
the product to
the nut of
screw A and
push it to the
end.
Remove the
3.
wiring cover
assembly and
tighten the last
screw.
