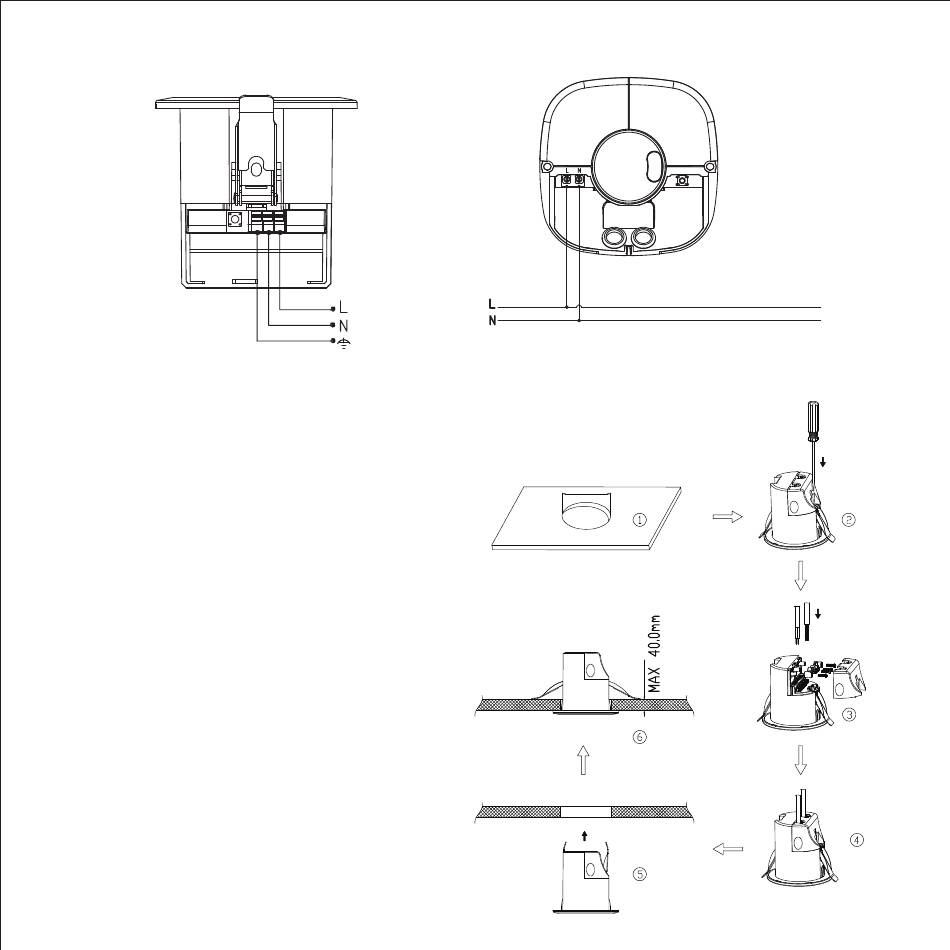

Wiring
MSA035 Z1
Remarks: Ground wire can
be left unconnected
Installation Instruction
MSA035 Z1
1. Cut a hole of 70-80mm on
the ceiling.
2. Open cover by small straight
screw.
3. Loosing clamp and wiring.
4. Screw clamp and put the
cover.
5. Open spring clip outward and
install.
6. Adjust and make sensor flat
with ceiling.
MSA050 Z1
70mm
