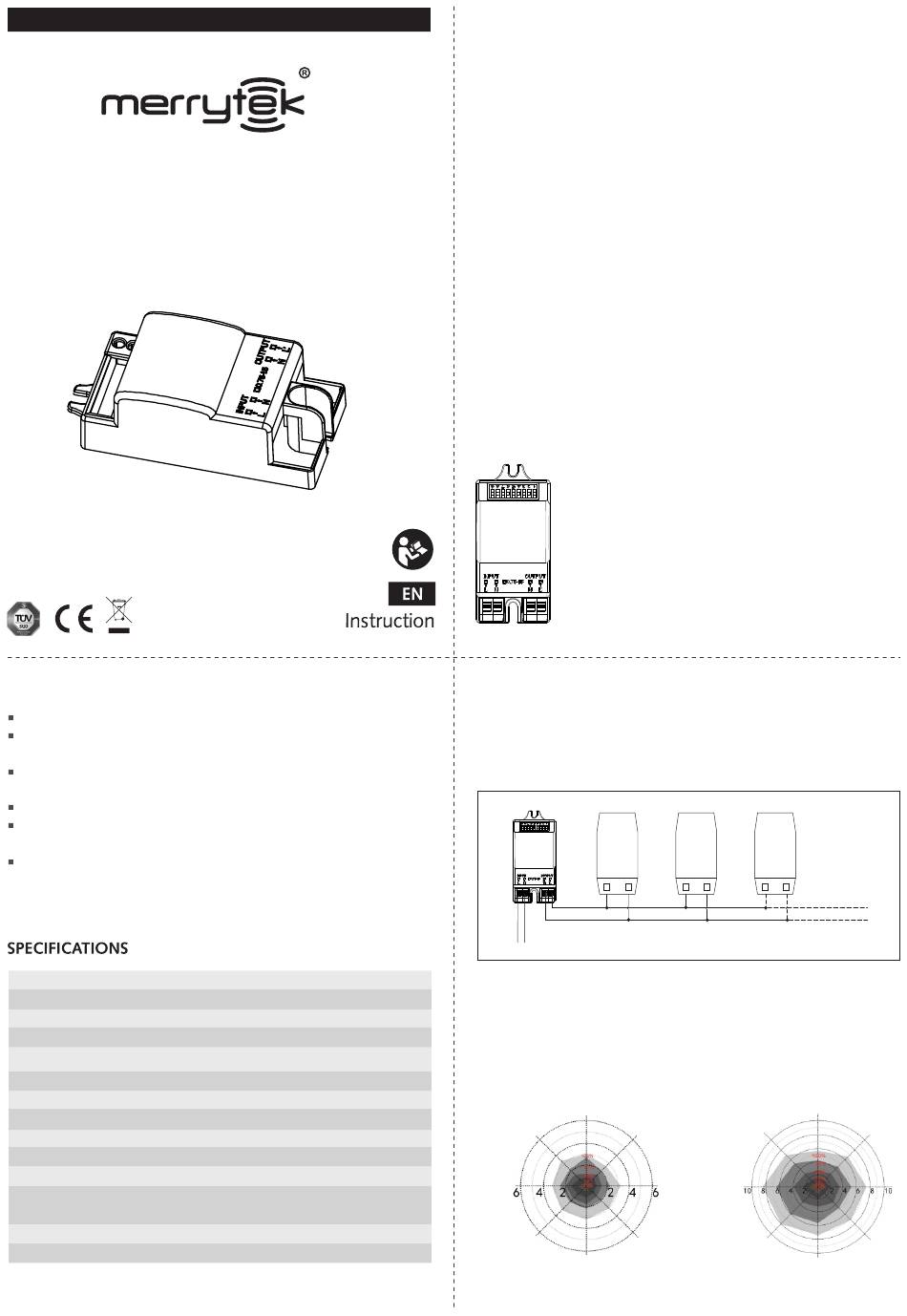

Merrytek MC030S User Manual

MC030S
MICROWAVE MOTION SENSOR USER'S MANUAL
Model No.: MC030S
FEATURES
Automatic switching based on motion and light level.
Zero-crossing point operation helps protect the sensor against in-
rush current.
Super Compact size makes it suitable to fix within most
luminaires.
4-pole press-in terminal (L, N, N, L'), easy assembly.
Detection area, time delay and daylight threshold can be precisely
set via DIP switch.
Wide detection area, range up to 12m in diameter.
Operating voltage 220~240Vac, 50Hz
Rated load 400W(inductive), 800W (resistive)
HF system 5.8GHz±75MHz, ISM wave band
Transmitting power 1mW Max


≤0.5W(standby)
Power consumption
Detection zone Max.(D x H): 12m x 6m
Detection sensitivity 10% / 25% / 50% / 75% / 100%
Hold time 5s / 30s / 90s / 3min / 20min / 30min
Daylight sensor 2lux / 10lux / 25lux / 50lux / Disable
Mounting height 6m Max.
Motion detection 0.5~3m/s
Detection angle 150°(wall installation)
360°(ceiling installation)
Operating temperature -20℃~60℃
IP rating IP20
GENERALGUIDELINESFORINSTALLATION
1, The sensor should be installed by a qualified electrician. And ensure
that the electricity supply is switched off before installing or servicing
the product.
2, The sensor should not be modified in any way. Any modifications
made for this product will immediately invalidate any warranties issued.
3, The company does not accept responsibility for any consequences
resulting from unauthorized modification of the product.
4, The sensor should be connected to a stable power supply of 220-
240Vac 50Hz/60Hz.
5, Microwaves cannot pass through metal or brick walls if thicker than
20cm. They will pass through thinner walls but there will be some
attenuation.
6, Installation inside a glass or plastic housing will result in a reduction of
detection sensitivity. Expect a reduction of approximately 20% for every
3mm of thickness.
INSTALLATION & WIRING
The sensor has 4-position terminal block as Pic 1:
L(Phase) N(Neutral) L' (Switched phase / control)
The sensor is designed for installation at 3-12m in height.
Pic 1
Wiring scheme
WIRING SCHEME
FOR ON/OFF FUNCTION :
Connect to normal control gears (normal LED drivers or ballasts), the wiring as
following:
Control gear
L L N N
L N
DETECTION PATTERN
Ceiling mounted height: 3m
Sensitivity:100%/75%/50%/25% /10%
Normal moving (Speed:1m/s)
Control gear Control gear
Max. 400W
L L N N L L N N
Slow moving (Speed 0.3m/s)
