Merrytek MC070S User Manual

V MC070S
MICROWAVE MOTION SENSOR USER'S
MANUAL Model No.: MC070S
FEATURES
Automatic switching based on motion and light level. Zero-crossing point operation helps protect the sensor against in-rush current.
Super Compact size makes it suitable to fix within most luminaires.
4-pole press-in terminal (L, N, N, L'), easy assembly. Detection area, time delay and daylight threshold can be precisely set via DIP switch.V
SPECIFICATIONS ...
Operating Voltage 220-240VAC 50/60Hz
Voltage Range 198-264VAC
Stand-by Power ≤0.5W
Load Type ≤400W (Inductive) ≤800W（Resistive）
Hold Time 5s/1min/3min/10min (or 5s/1min/5min/15min)
Sensing Range 50%/100%
Daylight Sensor 25lux/disable
Mounting Height Ceiling Mounting:3-6m
Detection Area 4-7m (Mounting Height: 3m)
Operating Frequency 5.8 GHz ±75 MHz
Operating Temperature -20℃~+60℃
IP Rating IP20 (Built-in)
FCC Warnning:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
GENERAL GUIDELINES FOR INSTALLATION
1, The sensor should be installed by a qualified electrician. And ensure that the electricity supply is switched off before installing or servicing the product.
2, The sensor should not be modified in any way. Any modifications made for this product will immediately invalidate any warranties issued.
3, The company does not accept responsibility for any consequences resulting from unauthorized modification of the product.
4, The sensor should be connected to a stable power supply of 220-240Vac 50Hz/60Hz.
5, Microwaves cannot pass through metal or brick walls if thicker than 20cm. They will pass through thinner walls but there will be some attenuation.
6, Installation inside a glass or plastic housing will result in a reduction of detection sensitivity. Expect a reduction of approximately 20% for every 3mm of thickness.

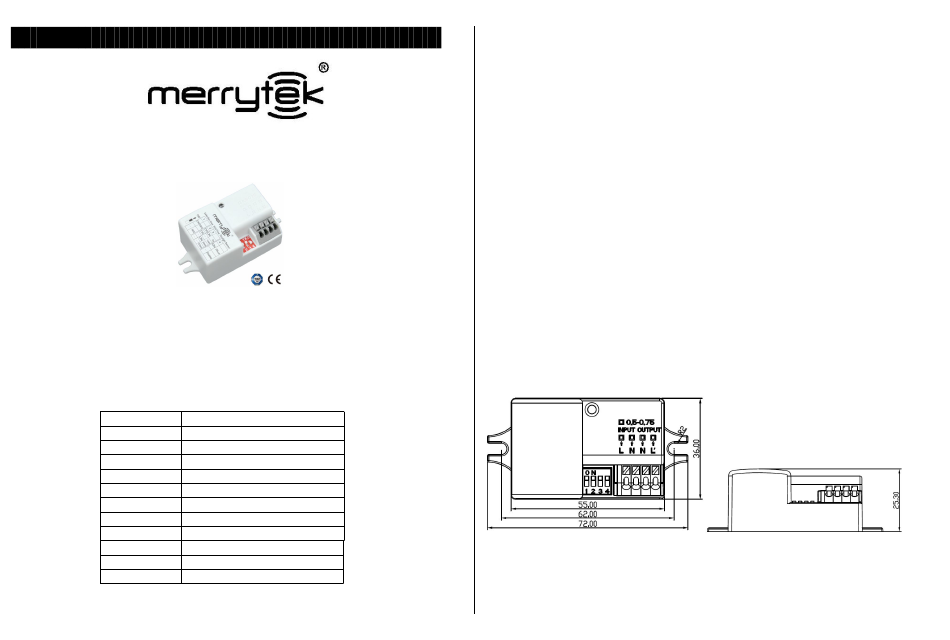

Dimension （Unit：mm）
