lunenburg
media cabinet
style # TGLNBGTVGY
dpci # 249-10-2251
tcin # 54158118
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lunenburg media cabinet TGLNBGTVGY and is the answer not in the manual?

Questions and answers

Summary of Contents for Target Lunenburg media cabinet TGLNBGTVGY

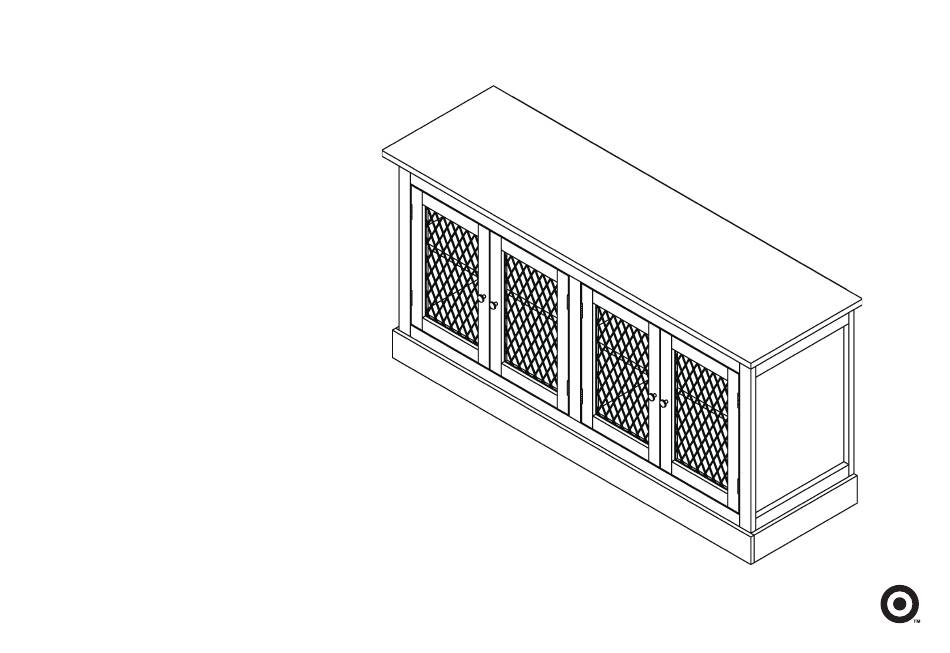

  • Page 1 # TGLNBGTVGY dpci # 249-10-2251 tcin # 54158118 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-18 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4 hardware (H1) x 27 (H2) x 28 (H3) x 28 (H4) x 4 (H5) x 4 wooden dowel cam bolt knob knob bolt (H6) x 8 (H7) x 25 (H8) x 24 (H9) x2 (H10) x 2 shelf support 15mm pan head screw flat head scew magnet 22mm pan head screw...
  • Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel bottom front rail bottom rear rail back panel upper front rail shelf partition partition rail left door right door...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
  • Page 7 step 1: attach magnets to upper front rail (H7) x 4 (H9) x 2 15mm pan magnet head screw 1.1. Align 15mm pan head screws with pre-drilled holes to attach magnet to upper front rail. Do not over tighten screws.
  • Page 8 step 2: attach rails to partition and bottom panel (H1) x 8 (H2) x 10 (H2) x 10 (H3) x 10 (H3) x 10 wooden dowel wooden dowel cam bolt cam bolt 2.1. Carefully tap small wooden dowels into place in partition rail, bottom front rail, and bottom rear rail. Leave 1/2” of the dowels sticking out. 2.2.
  • Page 9 step 3: attach partition to bottom panel (H1) x 1 (H2) x 2 (H3) x 2 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place in bottom panel. Leave 1/2” of the dowels sticking out. 3.2. Screw-In cam bolts must be screwed down flush in bottom panel. 3.3.
  • Page 10 step 4: attach left side panel (H1) x 6 (H1) x 6 (H2) x 3 (H2) x 3 (H3) x 3 (H3) x 3 wooden dowel wooden dowel cam bolt cam bolt 4.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 4.2.
  • Page 11 step 5: attach right side panel (H1) x 6 (H1) x 6 (H2) x 3 (H2) x 3 (H3) x 3 (H3) x 3 wooden dowel wooden dowel cam bolt cam bolt 5.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 5.2.
  • Page 12 step 6: secure bottom front rail to left and right side panels (H10) x 2 22mm pan head screw 6.1. Align 22mm pan head screws with pre-drilled holes to attach bottom front rail to left and right side panels. Do not over tighten screws.
  • Page 13 step 7: attach top panel (H1) x 6 (H2) x 10 (H2) x 10 (H3) x 10 (H3) x 10 wooden dowel wooden dowel cam bolt cam bolt 7.1. Carefully tap small wooden dowels into place in top panel. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place in top panel.
  • Page 14 step 8: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** hole for anti-tip pre-drilled holes Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
  • Page 15 step 9: attach knobs to left door and right door (H4) x 4 (H5) x 4 knob knob bolt 9.1. Align knob bolt with pre-drilled holes to attach knob to door. Do not over tighten bolt.
  • Page 16 step 10: attach door to cabinet (H8) x 24 flat head screw 10.1 Align flat head screws with pre-drilled holes to attach door to cabinet. Do not over tighten screws.
  • Page 17 step 11: install adjustable shelf (H6) x 8 shelf support finished edge 11.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 11.2. Angle shelf to fit between the rails and set on top of shelf supports.
  • Page 18 step 12: install anti-tip kit (H14) (H12) Position against wall Mark position of strap hole on wall Mark position of strap hole on wall (H11) Drill 1/4” hole (H13) Tap in wall anchor (H13) (H15) Fasten anti-tip strap with wall screw provided (H11) x 1 (H12) x 1...
  • Page 19 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
  • Page 20 1. WARNING - Death or serious injury may occur when children climb on audio and/ or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child. 2.
  • Page 21 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
