carson

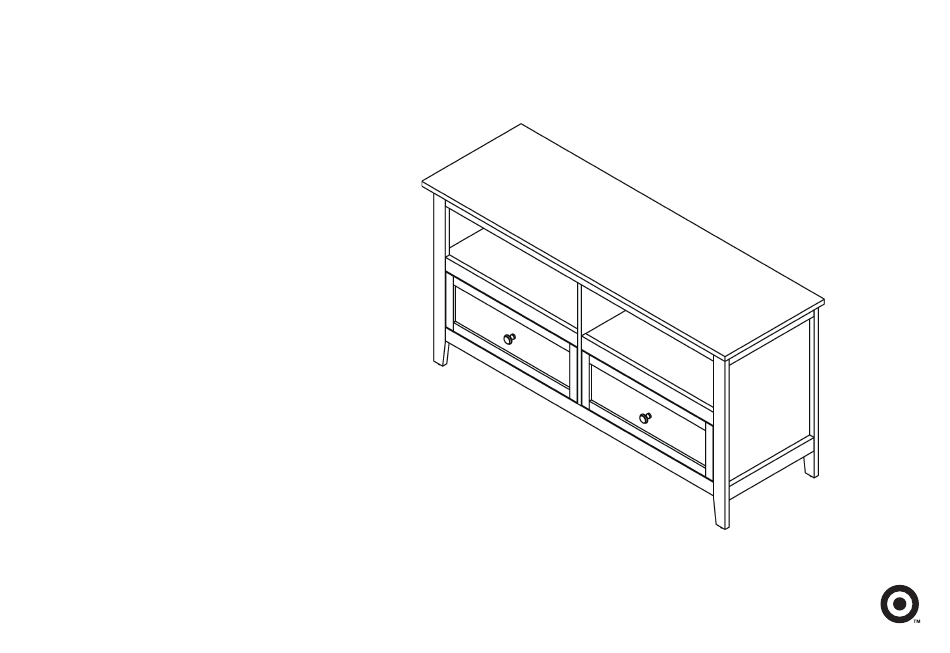

large tv stand
style CAMEDIWDEB (black)
dpci 249-10-2021
style CAMEDIWDES (espresso)
dpci 249-10-2022
style CAMEDIWDGY (grey)
dpci 249-10-2023
style CAMEDIWDBR (rustic)
dpci 249-10-2024
style CAMEDIWDWL (walnut)
dpci 249-10-2025
style CAMEDIWDWH (white)
dpci 249-10-2026
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Target carson CAMEDIWDEB
Summary of Contents for Target carson CAMEDIWDEB
- Page 1 249-10-2022 style CAMEDIWDGY (grey) dpci 249-10-2023 style CAMEDIWDBR (rustic) dpci 249-10-2024 style CAMEDIWDWL (walnut) dpci 249-10-2025 style CAMEDIWDWH (white) dpci 249-10-2026 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-18 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 46 (H2) x 50 (H3) x 50 (H4) x 20 (H5) x 2 wooden dowel cam bolt short pan head screw knob (H6) x 2 (H8) x 2 (H9) x 1 (H10) x 1 (H7) x 8 knob bolt flat head screw washer...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel bottom front rail bottom rear rail back panel upper front rail upper rear rail partition panel fixed shelf front shelf rail rear shelf rail drawer front left drawer side right drawer side drawer back...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
- Page 7 step 1: attach bottom front rail and bottom rear rail to bottom panel front (H1) x 4 (H2) x 6 (H3) x 6 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in bottom front rail and bottom rear rail. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach front shelf rail and rear shelf rail to fixed shelf (H1) x 8 (H2) x 8 (H2) x 8 (H3) x 8 (H3) x 8 wooden dowel cam bolt cam bolt 2.1. Carefully tap small wooden dowels into place in front shelf rail and rear shelf rail. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach fixed shelves to partition panel finished edge (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place in partition panel. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach bottom panel front (H1) x 2 (H1) x 2 (H2) x 2 (H2) x 2 (H3) x 2 (H3) x 2 wooden dowel wooden dowel cam bolt cam bolt 4.1. Carefully tap small wooden dowels into place in bottom panel. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: attach right side panel front (H1) x 4 (H1) x 4 (H2) x 6 (H2) x 6 (H3) x 4 (H3) x 4 wooden dowel wooden dowel cam bolt cam bolt 5.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 5.1.
- Page 12 step 6: attach upper front rail and upper rear rail (H1) x 2 (H3) x 2 wooden dowel 6.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 6.2. Refer to page 6 for instructions on how to use the cam lock system. 6.3.
- Page 13 step 7: attach left side panel (H1) x 6 (H1) x 6 (H2) x 6 (H2) x 6 (H3) x 6 (H3) x 6 wooden dowel wooden dowel cam bolt cam bolt 7.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 7.2.
- Page 14 step 8: attach top panel front front (H1) x 12 (H1) x 12 (H2) x 10 (H2) x 10 (H3) x 10 (H3) x 10 wooden dowel wooden dowel cam bolt cam bolt 8.1. Carefully tap small wooden dowels into place in top panel. Leave 1/2” of the dowels sticking out. 8.1.
- Page 15 step 9: attach back panel hole for anti-tip Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) If not, apply gentle pressure to the diagonally opposite...
- Page 16 step 10: assemble drawer box (H1) x 4 (H2) x 8 (H3) x 8 (H7) x 8 wooden dowel cam bolt flat head screw 10.1. Carefully tap small wooden dowels into place in drawer front. Leave 1/2” of the dowels sticking out. 10.2.
- Page 17 step 11: attach knobs and install drawers (H5) x 2 (H6) x 2 knob knob bolt 11.1. Align knob bolts with pre-drilled holes to attach knob to drawer front. Do not over tighten bolts. 11.2. Carefully align glides on drawer sides with glides on cabinet to install drawer.
- Page 18 step 12: install anti-tip kit (H9) Position against wall (H12) Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole (H8) Tap in wall anchor (H10) (H8) (H11) Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
- Page 19 WARNING WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: For use with flat panel televisions Install tip-over restraint provided. • weighing 50 pounds (22. 7 kg) or less. Place heaviest items in the lowest drawers. •...
- Page 20 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
