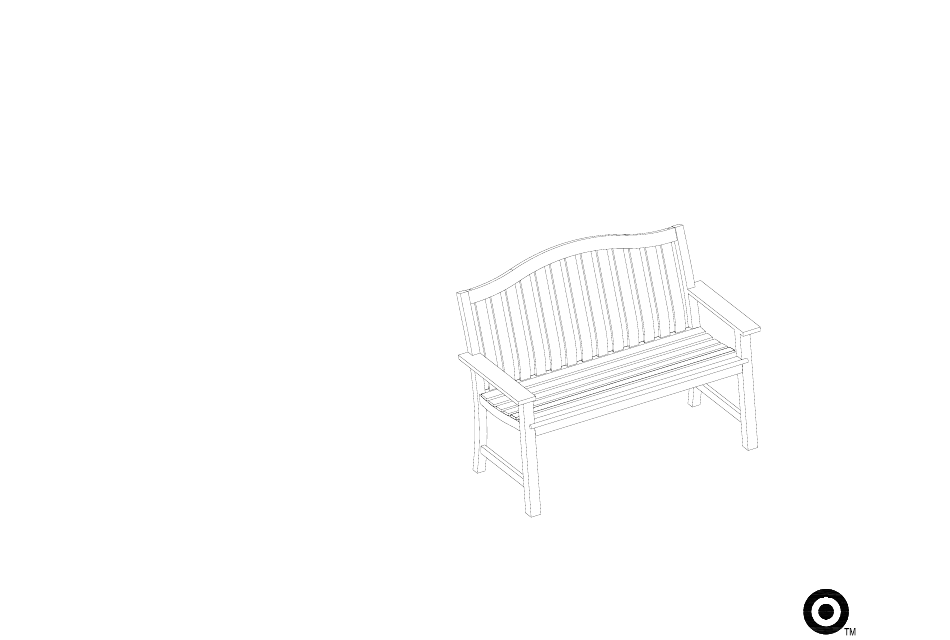

- Page 1 bench style # LPB100PAL1 dpci # 084-09-0442 >>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents ………………………………………………………... introduction hardware parts list assembly Just call 1-866-578-6569 for parts and service. For faster service, have the style number and DPCI number ready when calling. QUESTIONS ?
- Page 4 hardware ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． (H1) x 11 (H2) x 11 (H3) x 11...
- Page 5 ITEM DESCRPTION QUANTITY ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． left armrest B right armrest...
- Page 6 step 1: Attach left armrest (A) and right armrest (B) to seat (D) separately by using bolts (H1) and washers (H2) (H3). Do not fasten bolts (H1) tightly. (H1) x 8 (H3) M6*35mm bolt (H2) (H2) x 8 M6 spring washer (H3) x 8 M6 washer...
- Page 7 step 2: Attach left armrest (A) and right armrest (B) to backrest (C) (as shown in Fig.1). Fig.1 Fig.2...
- Page 8 step 3: Connect backrest (C) with seat (D) by using bolts (H1) and washers (H2) (H3) (as shown in Fig.2). Do not over tighten. Fasten all the bolts. (H1) x 3 M6*35mm bolt (H3) (H2) Fig.1 (H2) x 3 M6 spring washer Fig.2 (H3) x 3 M6 washer...
- Page 9 Care & Maintenance: 1. Before using, clean the bench completely with a soft dry towel. 2. Do not place your bench in wet conditions where there is a risk of rust developing. 3. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners.
