INSTRUCTIONS FOR USE
OF AN UPRIGHT FREEZER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN619EABK6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gorenje FN619EABK6

Summary of Contents for Gorenje FN619EABK6

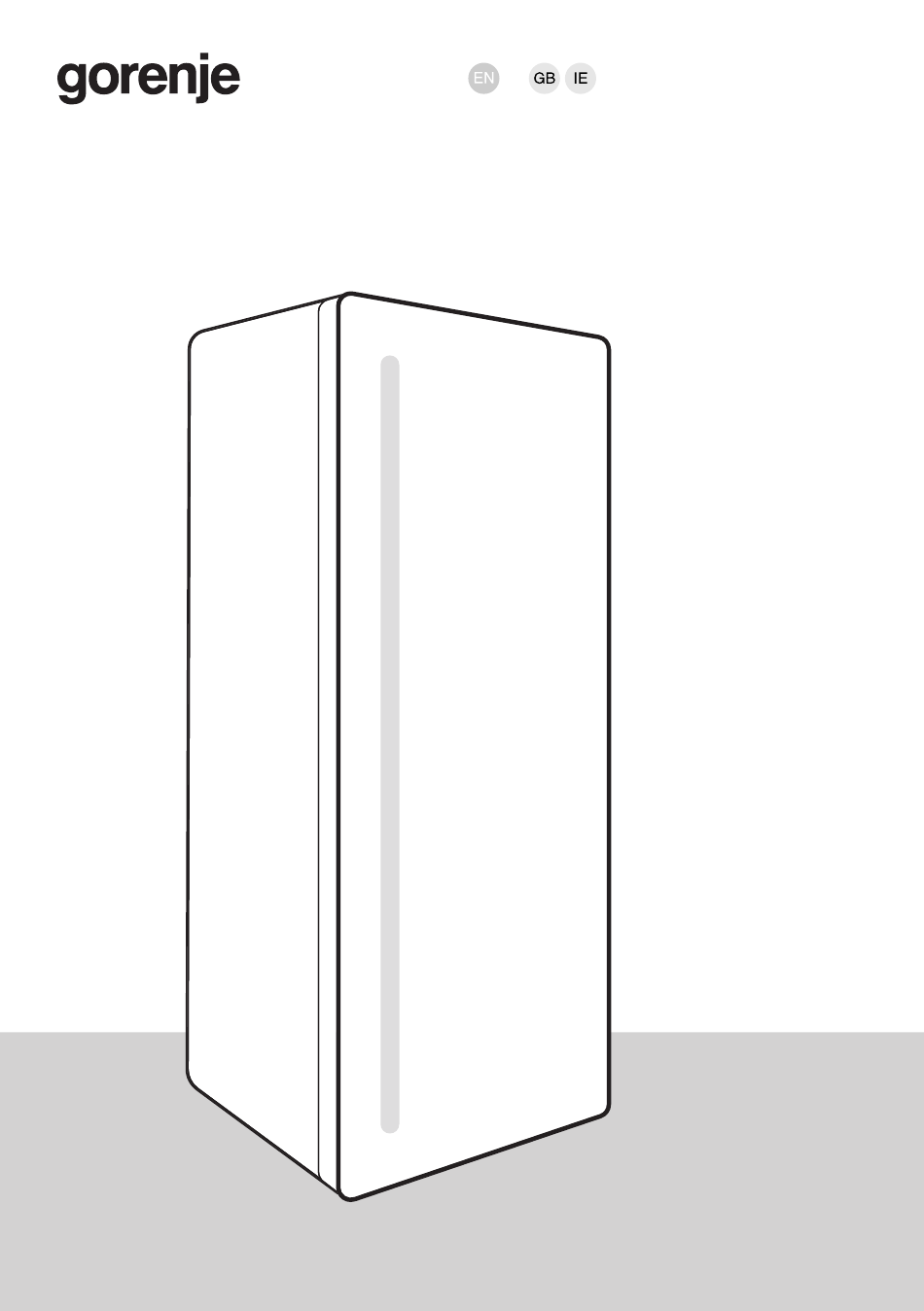

  • Page 1 INSTRUCTIONS FOR USE OF AN UPRIGHT FREEZER...
  • Page 2 Link to the EU EPREL database The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database.

  • Page 3: Table Of Contents

    Contents Important notes and precautions ..................Before using the appliance for the first time ................Important safety instructions ....................Important information on the use of appliance ................. Environment protection ......................Advice for saving power with refrigeration appliances ............Installation and connection ....................Selecting the room ........................

  • Page 4: Important Notes And Precautions

    Important notes and precautions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;...
  • Page 5 ELECTRIC SHOCK! WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. ELECTRIC SHOCK! If LED lighting does not work, call a service technician. Do not attempt a repair of the LED lighting yourself, as there is danger of contact with high voltage! WARNING! WARNING! Do not use electrical appliances inside the food...
  • Page 6 Safety of children and vulnerable persons The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 7: Important Information On The Use Of Appliance

    Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.
  • Page 8 WARNING! WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

  • Page 9: Environment Protection

    Environment protection Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. Removing an obsolete appliance To protect the environment, take the obsolete appliance to an authorized home appliance collection centre.

  • Page 10: Installation And Connection

    Installation and connection Selecting the room • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specified in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. Ambient temperature range Description Class...

  • Page 11: Appliance Placement

    Appliance placement Appliance installation should be carried out by at least two persons to avoid any personal injury or damage to the appliance. • The appliance must stand level or tilted slightly to the back. It should be stable and placed a solid base.

  • Page 12: Connecting The Appliance

    • Take into account the space or clearance required to open the appliance door, in order to allow the drawers and shelves to be pulled out or removed (see installation diagram). * depending on the model ** model with integrated handle *** model with external/protruding handle INFORMATION! Note: When placing the appliance on a plinth with a depth of less than 625 mm, it is recommended...

  • Page 13: Reversing The Door Opening Direction

    Reversing the door opening direction The direction in which the appliance door opens can be reversed. Note: Disconnect the appliance from the power mains before reversing the door opening direction. Tools required: Socket wrench No. 8, Cross-point screwdriver Flat screwdriver Spanner No.
  • Page 14 Remove the door from the bottom hinge by carefully lifting the door straight up. Lay the door onto a smooth surface. Take the (right) cap/cover (4) from the bag and place it on the spot from which the top hinge was removed. Remove and save the cap/cover from the other side (5) to which the hinge will be relocated.
  • Page 15 7. Tilt the appliance backwards and remove the adjustable foot (11). Undo the three screws on the bottom hinge (14) and remove it. Remove the extra foot (12) from the bottom hinge pin (13). Unscrew the pin (13) from the bottom hinge and screw it onto the opposite side of the hinge, complete with the extra foot (12).
  • Page 16 Note: If your model has a handle, then move it to the opposite side by following the instructions below. Remove the caps (1) and undo the two screws (2) as shown in the figure. Rotate the handle (3) by 180° and replace it on the opposite side. Then, fasten the screws (2) and replace the caps (1). Replacement of the hinged handle (only with some models) Note: If your model has a hinged handle, then move it to the opposite side by following the instructions below:...

  • Page 17: Description Of The Appliance

    Description of the appliance Appliance interior equipment may change according to the appliance model. This product contains a light source of energy efficiency class E. 1. Control panel 2. LED lighting of freezer interior 3. NoFrost freezer unit (cooling unit, fan ...) 4.

  • Page 18: Operating The Appliance

    Operating the appliance Appliance on/off key Temperature setting key Set temperature display Intensive freezing (fast freeze) on/off key Intensive freezing (fast freeze) function indicator Eco function on/off key Eco function indicator...

  • Page 19: Switching The Appliance On/Off

    Switching the appliance on/off When you connect the appliance to the power mains for the first time, the appliance will be in standby mode (switched off, but powered). Switching on the appliance: to switch on the appliance, press the A key.

  • Page 20: Eco Function

    To activate: press the D key to activate intensive freezing (fast freeze). You will hear a beep, will light up on the display unit, and FF will light up on the display unit C. To deactivate: to deactivate the intensive freezing (fast freeze) function, press the D key again. You will hear a beep and will no longer be lit up.

  • Page 21: Child Lock

    Child Lock To activate: to activate the child lock, press and hold (for 3 seconds) the E key. A beep will be sounded, and CL will briefly appear on the B display. The function will lock all keys except the E key. To deactivate: to deactivate the function, press the E key again.

  • Page 22: Power Outage/Power Supply Failure Alarm

    INFORMATION! If you leave the door open for more than 10 minutes, the alarm will no longer be sounded. Appliance operation will switch to safe mode in order to provide sufficient cooling and prevent food spoilage despite the open door. Power outage/power supply failure alarm If the temperature in the appliance increased to alarm level during a power outage (power supply failure), then the power failure alarm will be...

  • Page 23: Appliance Interior Equipment

    Appliance interior equipment ( * Equipment depends on the model) Ice cube tray * To make ice cubes, fill the tray with water and lay it horizontally in the freezer. Pull-out tray (EasyTray) * Some models have a pull-out tray instead of a drawer. The pull-out tray improves the view and allows easy access to frozen food.

  • Page 24: Important Warnings On Freezing

    Important warnings on freezing INFORMATION! Only use the freezer to freeze food appropriate for freezing. Always use quality and fresh food. Select the most suitable packaging for the food and use the packaging correctly. Make sure the packaging is air and water tight so that the food does not dry out and loose its vitamins.
  • Page 25 • Use partially or completely thawed food as quickly as possible. The bacteria in thawed food are reactivated and the food will spoil rapidly. This applies in particular to fruit, vegetables and ready-made food. • Do not refreeze partially or completely thawed food.

  • Page 26: Defrosting The Appliance

    Defrosting the appliance Defrosting a NoFrost freezer • The NoFrost freezer will defrost automatically. Any frost layer that may build up occasionally will disappear automatically. Manual defrosting of the NoFrost freezer • A layer of frost could build up on the appliance walls despite the NoFrost feature. This is usually a result of abnormal use of the appliance, such as too frequent door opening, leaving the door open for too long, poor door seal etc.

  • Page 27: Cleaning The Appliance

    Cleaning the appliance WARNING! Before cleaning, unplug the appliance from the power mains switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface.

  • Page 28: Troubleshooting

    Troubleshooting Problem: Cause or remedy: Appliance is connected to • Make sure there is voltage in the power outlet and that the the power mains but it does appliance is switched on. not work. Cooling system operates • Too high environment temperature. continuously for a long •...

  • Page 29: Information About Appliance Noise

    Table continued from last page Problem: Cause or remedy: E4 appears on the display • Compartment fan failure. Call a service centre for repair. The unit: appliance cannot operate normally. Transfer the food to a cool place and switch off the appliance. E9 appears on the display •...
  • Page 30 GORENJE gospodinjski aparati, d.o.o. Address: Partizanska 12, 3320 Velenje, Slovenia Phone: +386 (0)3 899 10 00 Fax: +386 (0)3 899 28 00 www.gorenje.com 880163-a4 We reserve the right to changes that do not affect the appliance functionality.
