REAR-PANEL CONFIGURATION

SETUP REAR PANEL CONFIG
The REAR PANEL CONFIG option is used to configure the analog audio input connectors as eight (Left/Right) stereo connectors, five (Left/Right)
stereo connectors and one 5.1-channel configuration (Front L/R, Center, Subwoofer, Side L/R), or as two stereo connectors and two 5.1-channel
configurations.
8 STEREO INPUTS
SETUP REAR PANEL CONFIG
Select the 8 STEREO INPUTS option to configure the analog audio
input connectors as eight stereo connectors.

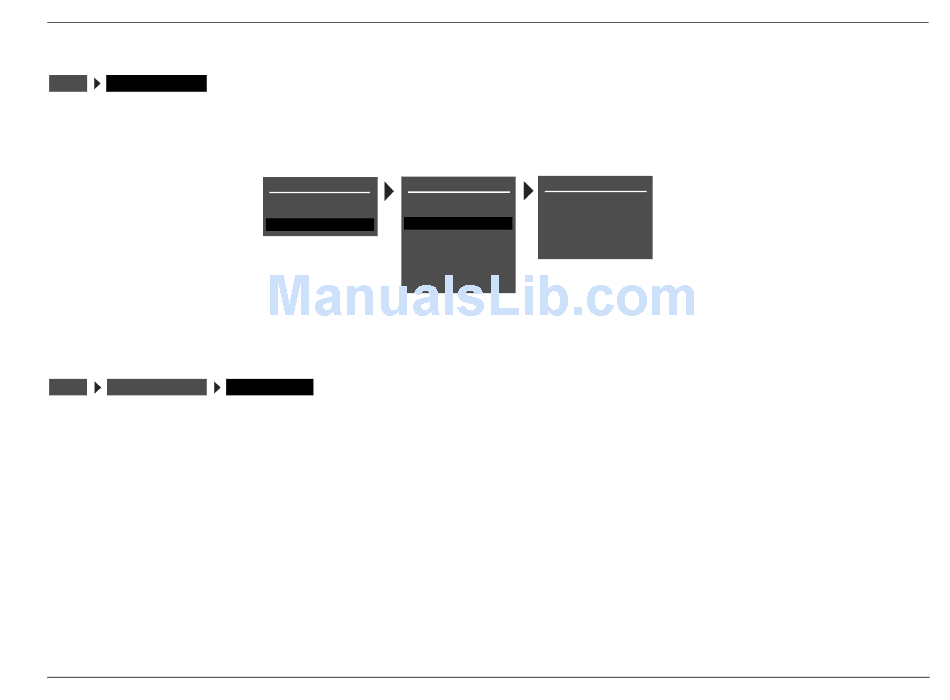

SETUP
MAIN MENU
INPUTS
MODE ADJUST
SPEAKERS
AUDIO CONTROLS
REAR PANEL CONFIG
SETUP
DISPLAYS
VOLUME CONTROLS
TRIGGERS
LOCK OPTIONS
LIVE! CALIBRATION
8 STEREO INPUTS
REAR PANEL CONFIG
8 STEREO INPUTS
OR
5 ST. & 5.1 ANLG
OR
2 ST. & (2) 5.1 ANLG
When 8 STEREO INPUTS is selected:
• All analog audio input connectors are configured as stereo
connectors.
• The 5.1-channel connector is not available.
• Input sources that were assigned to the 5.1 ANLG (3-5) and 5.1
ANLG (6-8) are reassigned to the stereo connectors labeled 3
and 6, respectively.
Setup
3-59
