SETUP SPEAKERS SET CROSSOVERS

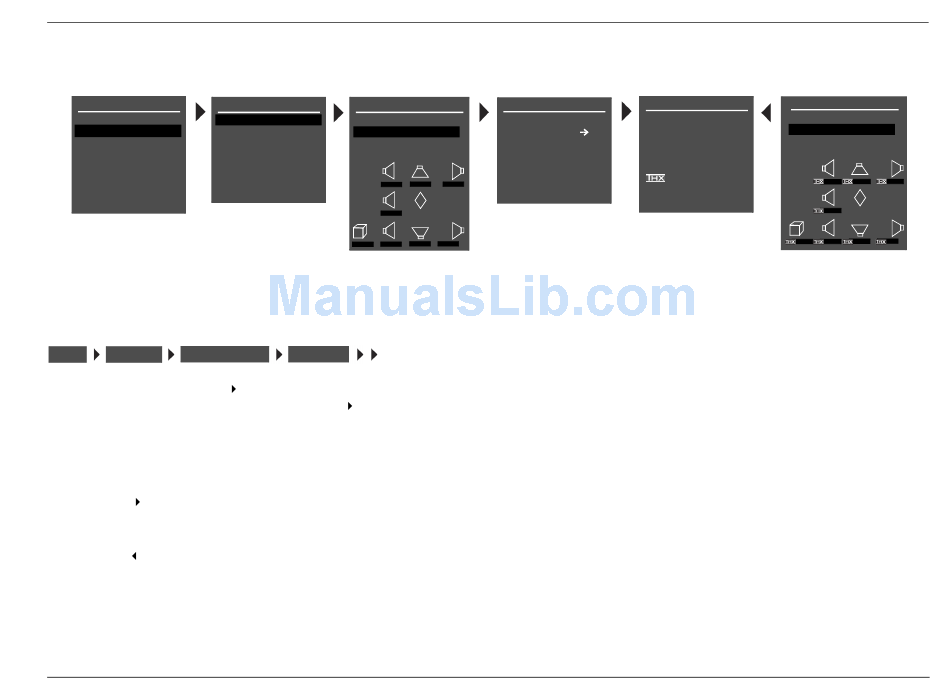

Selecting CROSSOVER SETUP THX SETUP opens the THX SPEAKER
SETUP screen, which indicates that pressing the
automatically configure the Main Zone audio output connectors for a
THX speaker setup. Use THX-certified speakers in a THX speaker setup.
When the THX SPEAKER SETUP screen opens:
• Press the arrow button to configure the Main Zone audio
output connectors for a THX speaker setup. The THX SETUP
menu will open on the in-screen display.
• Press the arrow button to close the message without config-
uring the Main Zone audio output connectors for a THX
speaker setup.
CUSTOM SETUP CROSSOVER SETUP
CUSTOM SETUP
THX SETUP
R
SET CROSSOVERS
80Hz
C
80Hz
M
L
SUB
80Hz 80Hz
THX SETUP
arrow button will
THX SPEAKER SETUP
!CAUTION!
40 Hz
60 Hz PRESSING THE
60 Hz
BUTTON WILL
60 Hz
AUTOMATICALLY CHANGE
40 Hz THE OUTPUTS TO A THX
SR RR
OFF SPEAKER
80Hz
80Hz
N/A CONFIGURATION
APART
SL RL
80Hz 80Hz
When a THX speaker setup is selected, the MC-8 applies a THX 80Hz
crossover point with a 12dB-per-octave filter to the Front L/R, Center,
Side L/R and Rear L/R output connectors. The MC-8 applies a THX
80Hz crossover point with a 24dB-per-octave filter to the Subwoofer
output connector.
Notes:
• A THX speaker setup is not required to activate THX listening
modes.
• In the THX SETUP menu, only the REAR L/R, THX ULTRA2 SUB,
BGC and ASA parameters can be changed.
CUSTOM SETUP CROSSOVER SETUP
THX SETUP
CUSTOM SETUP
FRONT L/R* THX 80Hz
THX SETUP
CENTER* THX 80Hz
SIDE L/R* THX 80Hz
REAR L/R THX 80Hz
SUBWOOFER* THX 80Hz
ULTRA2 SUB OFF
BGC N/A
ASA APART
* These parameters cannot be
adjusted. SUB
80Hz
Setup
40 Hz
60 Hz
60 Hz
60 Hz
40 Hz
R SR RR
OFF
80Hz 80Hz 80Hz
N/A
C
APART
80Hz
M
L SL RL
80Hz 80Hz 80Hz
