Setup
SETTING CROSSOVER POINTS
High-Pass Filter

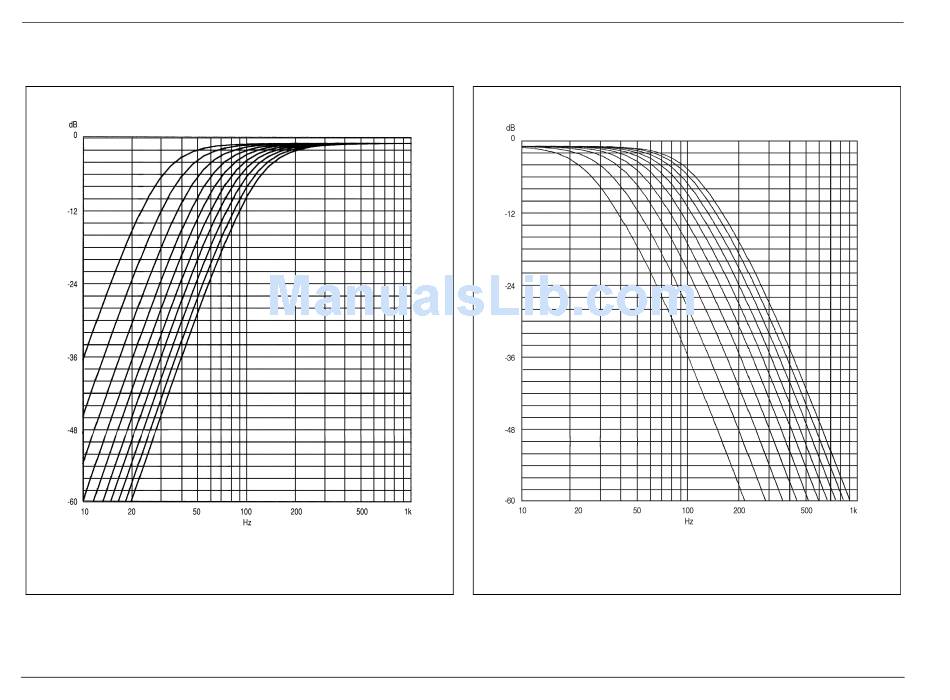

High-pass filters attenuate low frequencies at 24dB per octave. The curves in the graph
above indicate the frequency response of each crossover setting. From left to right, the
curves represent crossover settings from 30Hz to 120Hz. The graph above does not
show the THX 80Hz crossover point, which is 12dB per octave.
3-24
(continued)
Low-Pass Filter
Low-pass filters attenuate high frequencies at 24dB per octave. The curves in the graph
above indicate the frequency response of each crossover setting. From left to right, the
curves represent crossover settings from 30Hz to 120Hz.
