Setup
ASSIGNING AUDIO and VIDEO INPUT CONNECTORS
SETUP
MAIN MENU
INPUTS
MODE ADJUST
SPEAKERS
AUDIO CONTROLS
REAR PANEL CONFIG
SETUP
DISPLAYS
VOLUME CONTROLS
TRIGGER
LOCK OPTIONS
LIVE! CALIBRATION
ANALOG IN
ANALOG-1 to 8, 5.1 ANLG (3-5) or (6-8), LIVE!, NONE

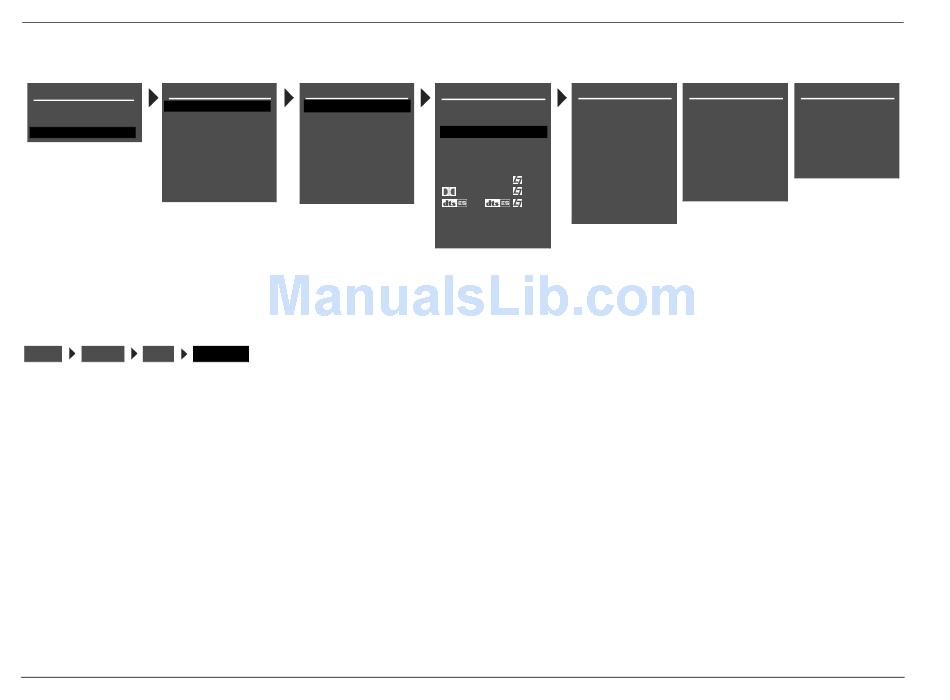

SETUP INPUTS DVD1 ANALOG IN
Opens the ANALOG IN menu, which is used to assign an analog
audio input connector for the selected input. The MC-8 has eight
configurable inputs, each of which can be assigned to any of its eight
analog audio input connectors.
The appearance of the ANALOG IN menu depends on the configu-
ration of the analog audio input connectors.
• The ANALOG IN menu (A above) appears when the REAR PANEL
CONFIG menu 8 STEREO INPUTS option is selected (3-59).
• The ANALOG IN menu (B above) appears when the REAR PANEL
CONFIG menu 5 ST. & 5.1 ANLG option is selected (3-60).
• The ANALOG IN menu labeled (C above) appears when the
REAR PANEL CONFIG menu 2 ST. & (2) 5.1 ANLG option is
selected (3-60).
3-8
(continued)
INPUT SETUP DVD1 INPUT SETUP
DVD1
NAME
DVD2
DIGITAL IN
SAT
ANALOG IN
VCR
ANLG IN LVL
TV
VIDEO IN
CD
COMPONENT IN
TUNER 2-CH
AUX
D
MIC
MAIN ADVANCED
ZONE2 IN
DVD1 ANALOG IN
DVD1 ANALOG-1
COAX-1 ANALOG-2
NONE ANALOG-3
AUTO
ANALOG-4
S-Video-1
ANALOG-5
1
ANALOG-6
FILM
ANALOG-7
5.1 FILM
ANALOG-8
FILM NONE
LIVE! MED
LIVE!
A
DIGITAL
Please note the following:
• When no analog audio input connector is assigned, the MC-8
will automatically set the MAIN ADV menu INPUT SELECT
parameter to DIGITAL (3-17).
• An analog audio input connector must be assigned when no
digital audio input connector is assigned. Refer to the previous
page for information about assigning a digital audio input
connector.
• LIVE! cannot be selected until LIVE! CALIBRATION is run. When
the ANALOG IN selection is LIVE!, no other analog inputs (1-8)
or digital inputs can be selected for that input.
Lexicon
DVD1 ANALOG IN DVD1 ANALOG IN
ANALOG-1 ANALOG-1
ANALOG-2 ANALOG-2
ANALOG-3 5.1 ANLG (3-5)
ANALOG-4 5.1 ANLG (6-8)
ANALOG-5 NONE
5.1 ANLG (6-8) LIVE!
NONE
C
LIVE!
B
