Basic Operation

STATUS MENU DESCRIPTIONS

The table beneath each description lists the possible settings for
each parameter.

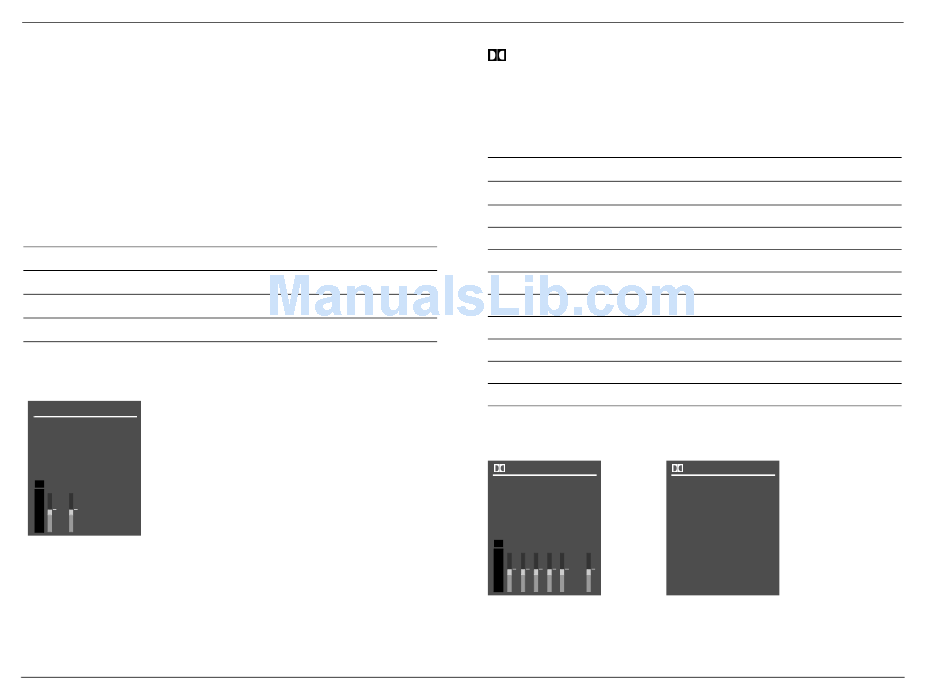

2CH STATUS
Provides information about 2-channel input sources. Features L and
R level meters.
Parameter Possible Settings
INPUT The current input
MODE The current listening mode
INPUT TYPE ANLG, PCM
SAMPLE RATE 44.1kHz, 48kHz, 88.2kHz, 96kHz
See "STATUS Menu Parameter Descriptions" on page 2-24 for detailed information.
2CH STATUS
INPUT
MODE
INPUT TYPE
SAMPLE RATE
d B L R
0
- 6
- 1 5
- 3 0
- 4 5
2-20
D STATUS
Provides information about Dolby Digital input sources. Features
L, C, R, SL, SR and LFE level meters.
Parameter Possible Settings
INPUT The current input
MODE The current listening mode
CHANNELS 3/2.1, 3/2, 3/1, 2/2, 2/1, 2/0, 1/0
BIT RATE 32 to 640kbps
EX ENCODED YES, NO
SAMPLE RATE 48kHz
2.0 ENCODING MATRIX, NONE
DIALOG OFFSET –27 to +4dB
MIX ROOM SMALL, LARGE
CENTER MIX LVL –3.0dB, –4.5dB, –6.0dB
SURR MIX LVL +0.0dB, –3.0dB, –6.0dB
See "STATUS Menu Parameter Descriptions" on page 2-24 for detailed information.
D STATUS
PG1
INPUT
MODE
CHANNELS
BIT RATE
EX ENCODED
d B L C R SL SR LFE
0
- 6
- 1 5
- 3 0
- 4 5
D STATUS
PG2
SAMPLE RATE
2.0 ENCODING
DIALOG OFFSET
MIX ROOM
CENTER MIX LVL
SURR MIX LVL
