Basic Operation

REAR-PANEL OVERVIEW

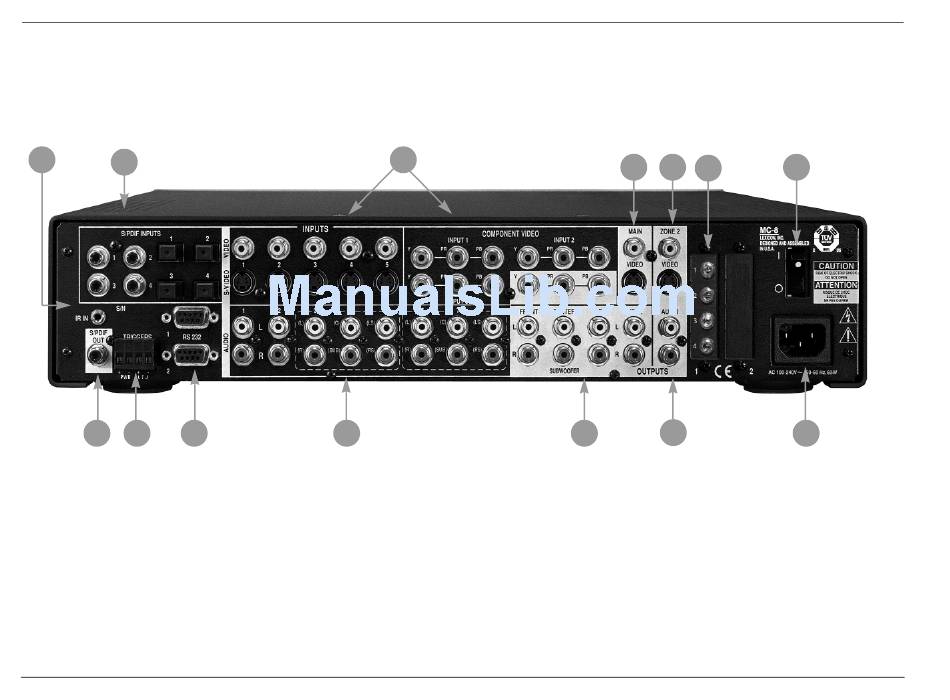

The MC-8 is shown below. The MC-8 Balanced, shown on page 2-8, includes balanced audio output connectors for the Main Zone and Zone
2. Otherwise, both models are identical. The numbers in the rear-panel illustrations correspond with the numbered items in the text.
1
2
14 13 12
CAUTION!
Never make or break connections to the MC-8 unless the MC-8 and all associated components are powered off.
1 IR IN CONNECTOR
Accepts input of IR signals from infrared distribution equipment.
One 3.5mm jack that accepts a stereo plug (Tip/Ring/Sleeve
connection) or mono plug (Tip/Sleeve connection) is available.
2-6
3
11
2 DIGITAL AUDIO INPUT CONNECTORS
(S/PDIF)
Provide digital audio input in the Main Zone and Zone 2. Four S/PDIF
coaxial and four S/PDIF optical input connectors are available.
Connectors are compatible with PCM (44.1, 48, 88.2 and 96kHz),
Dolby Digital and DTS(-ES) sources.
4 6
5
9
10
