MC-8
POSITIONING THE MICROPHONES FOR LIVE!
Refer to the microphone placement examples below to position the microphones for LIVE!
PROPER
microphone positioning for LIVE!
Position the microphones:
3 On or near opposite side walls
3 Approximately halfway between the front and
side speakers
3 At an approximate height between the waist and
head of a standing person
3 In a location unobstructed by furniture and other
fixtures
3 At least 2 feet (0.61m) from all speakers
Note:
LIVE! can potentially create feedback in the system. The
processing is designed to prevent this, but you should
avoid placing the microphones too close to speakers.

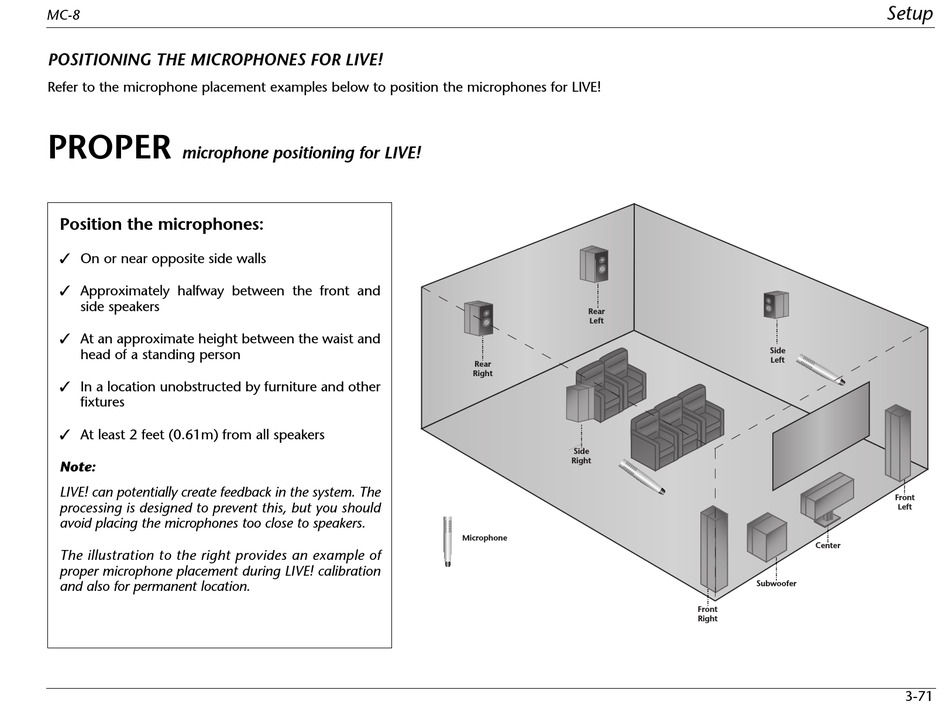

The illustration to the right provides an example of
proper microphone placement during LIVE! calibration
and also for permanent location.
Rear
Left
Rear
Right
Side
Right
Microphone
Side
Left
Center
Subwoofer
Front
Right
Setup
Front
Left
3-71
