Open the Security folder, and then the Port Access Entity folder, and then the PAE System Control
folder. Finally click on the Reauthenticate Port(s) link:
This window displays the following information:
Parameter
Unit
From/To
Port
MAC Address
Auth State
Backend_State
OperDir
PortStatus
LevelOne GSW-1290 Gigabit Layer2 SNMP Switch

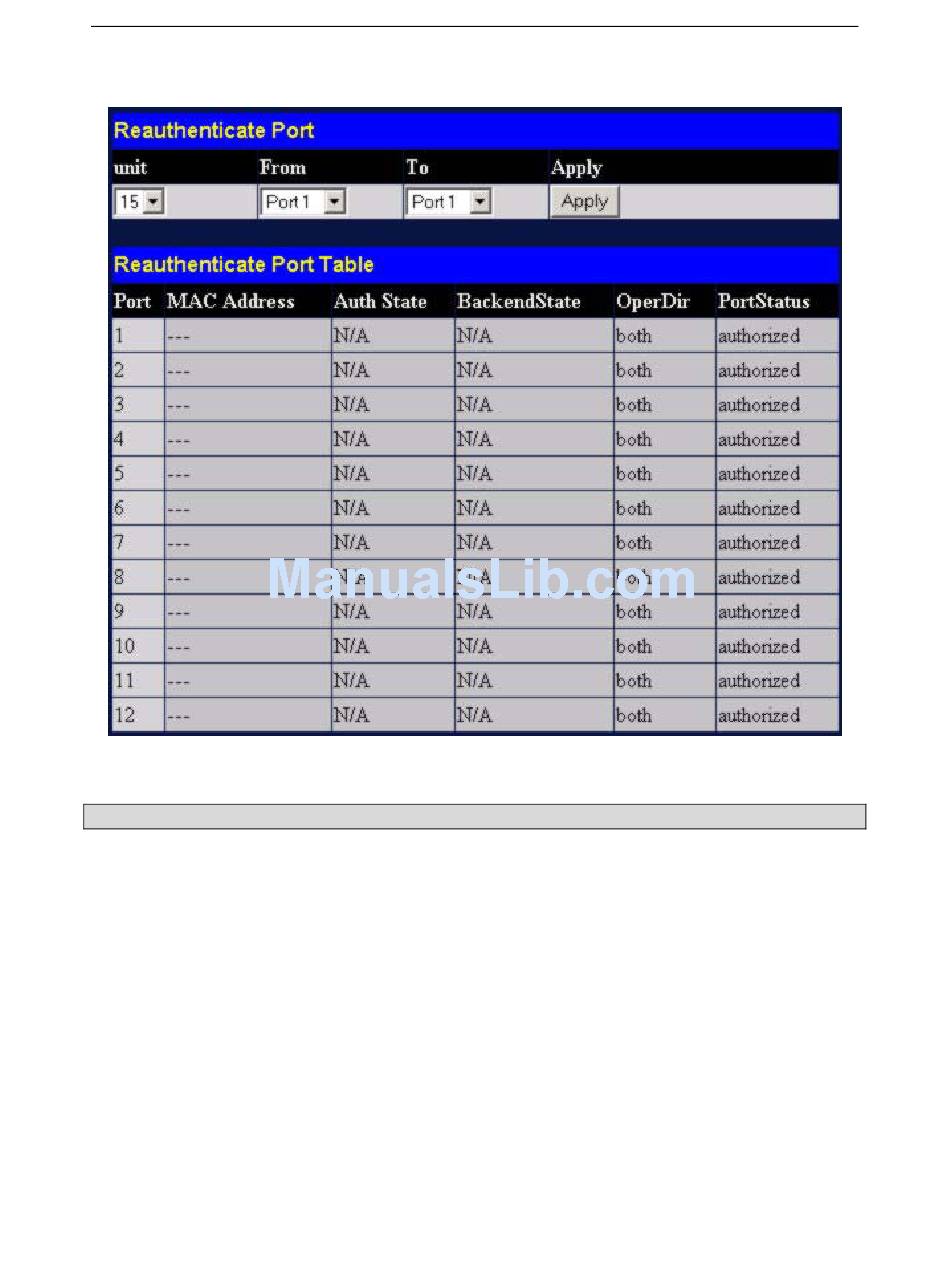

Figure 4- 52. Reauthenticate Port window
Description
Allows you to specify a Switch in a switch stack using that Switch's Unit ID.
The number 15 indicates a Switch in standalone mode.
A consecutive group of ports may be configured starting with the selected
port.
The port number.
The MAC address of the switch where the port resides
The Authenticator State will display one of the following: Initialize,
Disconnected, Connecting, Authenticating, Authenticated, Aborting, Held,
ForceAuth, ForceUnauth, and N/A.
The Backend State will display one of the following: Request, Response,
Success, Fail, Timeout, Idle, Initialize, and N/A.
The Operational Controlled Directions are both and in.
The status of the controlled port can be authorized, unauthorized, or N/A.
