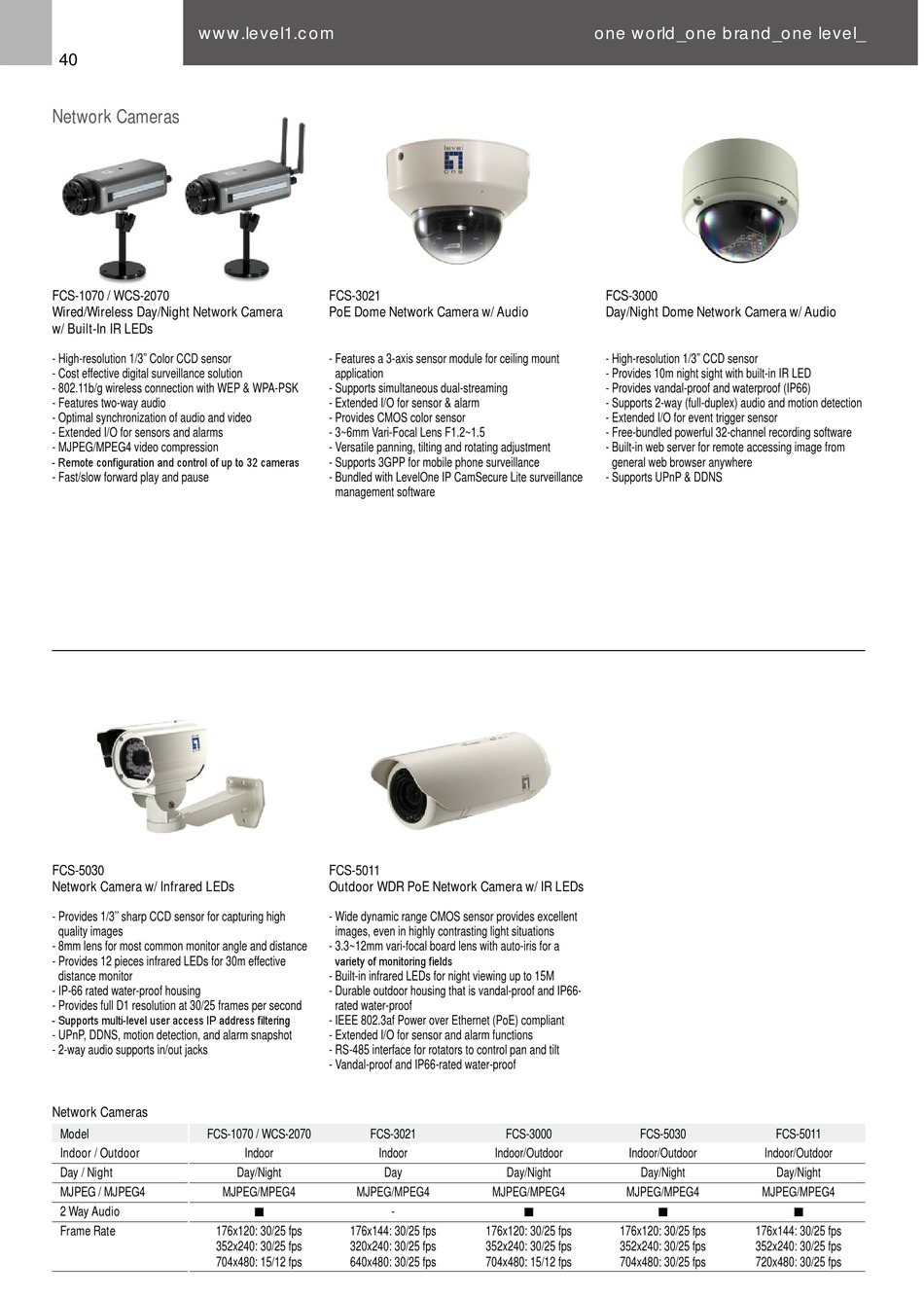

LevelOne ProCon FSW-1609TFX Brochure page 41

www.level1.com
40
Network Cameras
FCS-1070 / WCS-2070
Wired/Wireless Day/Night Network Camera
w/ Built-In IR LEDs
- High-resolution 1/3" Color CCD sensor
- Cost effective digital surveillance solution
- 802.11b/g wireless connection with WEP & WPA-PSK
- Features two-way audio
- Optimal synchronization of audio and video
- Extended I/O for sensors and alarms
- MJPEG/MPEG4 video compression
- Remote configuration and control of up to 32 cameras
- Fast/slow forward play and pause
FCS-5030
Network Camera w/ Infrared LEDs
- Provides 1/3'' sharp CCD sensor for capturing high
quality images
- 8mm lens for most common monitor angle and distance
- Provides 12 pieces infrared LEDs for 30m effective
distance monitor
- IP-66 rated water-proof housing
- Provides full D1 resolution at 30/25 frames per second
- Supports multi-level user access IP address filtering
- UPnP, DDNS, motion detection, and alarm snapshot
- 2-way audio supports in/out jacks
Network Cameras
Model FCS-1070 / WCS-2070
Indoor / Outdoor
Day / Night
MJPEG / MJPEG4 MJPEG/MPEG4
2 Way Audio
Frame Rate 176x120: 30/25 fps
352x240: 30/25 fps
704x480: 15/12 fps
FCS-3021
PoE Dome Network Camera w/ Audio
- Features a 3-axis sensor module for ceiling mount
application
- Supports simultaneous dual-streaming
- Extended I/O for sensor & alarm
- Provides CMOS color sensor
- 3~6mm Vari-Focal Lens F1.2~1.5
- Versatile panning, tilting and rotating adjustment
- Supports 3GPP for mobile phone surveillance
- Bundled with LevelOne IP CamSecure Lite surveillance
management software
FCS-5011
Outdoor WDR PoE Network Camera w/ IR LEDs
- Wide dynamic range CMOS sensor provides excellent
images, even in highly contrasting light situations
- 3.3~12mm vari-focal board lens with auto-iris for a
variety of monitoring fields
- Built-in infrared LEDs for night viewing up to 15M
- Durable outdoor housing that is vandal-proof and IP66-
rated water-proof
- IEEE 802.3af Power over Ethernet (PoE) compliant
- Extended I/O for sensor and alarm functions
- RS-485 interface for rotators to control pan and tilt
- Vandal-proof and IP66-rated water-proof
FCS-3021
Indoor Indoor
Day/Night Day
MJPEG/MPEG4
-
n
176x144: 30/25 fps
320x240: 30/25 fps
640x480: 30/25 fps
one world_one brand_one level_
FCS-3000
Day/Night Dome Network Camera w/ Audio
- High-resolution 1/3" CCD sensor
- Provides 10m night sight with built-in IR LED
- Provides vandal-proof and waterproof (IP66)
- Supports 2-way (full-duplex) audio and motion detection
- Extended I/O for event trigger sensor
- Free-bundled powerful 32-channel recording software
- Built-in web server for remote accessing image from
general web browser anywhere
- Supports UPnP & DDNS
FCS-3000 FCS-5030
Indoor/Outdoor Indoor/Outdoor
Day/Night Day/Night
MJPEG/MPEG4 MJPEG/MPEG4
n n
176x120: 30/25 fps 176x120: 30/25 fps
352x240: 30/25 fps 352x240: 30/25 fps
704x480: 15/12 fps 704x480: 30/25 fps
FCS-5011
Indoor/Outdoor
Day/Night
MJPEG/MPEG4
n
176x144: 30/25 fps
352x240: 30/25 fps
720x480: 30/25 fps
