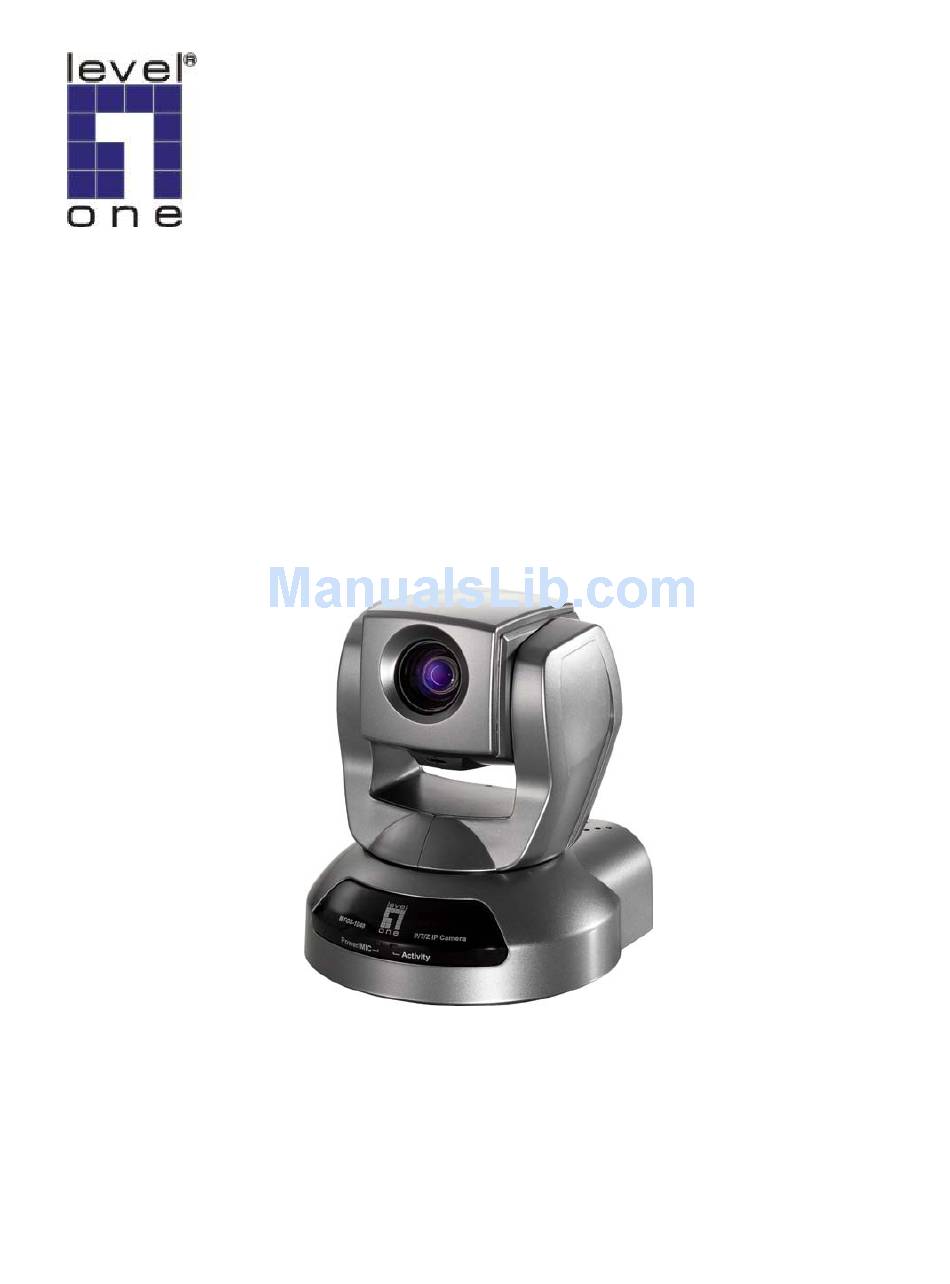

  • Page 1 LevelOne FCS-1040 Pan/Tile/Zoom IP Network Camera User’s Manual V1.0-0504...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents .................... 1 Before You Use This Product..............4 Warning Before Install................5 Package Contents ..................7 Hardware Installation ................9 Software installation................10 Using Installation Wizard..............15 User Interface ................15 Action buttons................16 Function buttons ................17 Setup ..................
  • Page 3 Fine-tuning for Best Performance ............ 31 For Best Real-time Video Images..........31 Only Quality Images Will Do ............. 32 Somewhere Between Real-time and Clear Images ....... 32 Select for Motion JPEG ............. 33 Opening Accounts for New Users ............ 34 Protect Network Camera by Passwords ........
  • Page 4 Application Setup ................65 Weekly Schedule ................65 Event Operation ................65 Sequential Operation ..............66 Viewing System Log ................68 Viewing System Parameters ..............68 Factory Default .................. 68 Appendix ....................69 A. Troubleshooting ................69 B. Cleaning the Lens................73 C.

  • Page 5: Before You Use This Product

    Before You Use This Product The use of surveillance devices may be prohibited in your country by law. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

  • Page 6: Warning Before Install

    Warning Before Install - 5 -...
  • Page 7 - 6 -...

  • Page 8: Package Contents

    Package Contents - 7 -...
  • Page 9 Installation - 8 -...

  • Page 10: Hardware Installation

    Hardware Installation Please verify that your product package contains all the accessories listed in the foregoing Package Contents. Depending on the user’s application, an Ethernet cable may be needed. The Ethernet cable should meet the specs of UTP Category 5 and not exceed 100 meters in length.

  • Page 11: Software Installation

    The following are steps for the software installation. Note: The default user name is root. The default password is the MAC address of your own FCS-1040, which marks at the bottom label of each device. Please enter the MAC address with capital letters.
  • Page 12 STEP 2 There are links on this page, including Install Software, User’s Manual and Customer Homepage. Click on “Install Software” to enter Install Software page. - 11 -...
  • Page 13 STEP 3 There are links on this page, including Installation Wizard, User’s Manual and Surveillance Software. Click on “Installation Wizard” to launch the setup program. - 12 -...
  • Page 14 STEP 4 Select the installation directory for this application software and click on “Next”. You can also change the installation directory from the default directory by clicking on “Browse…” - 13 -...
  • Page 15 STEP 5 Select a program folder to install the application software into and then click on “Next”. STEP 6 Click on “Finish” to finish installation. This completes the installation. - 14 -...

  • Page 16: Using Installation Wizard

    Using Installation Wizard User Interface Once you run the Installation Wizard, you will see the user interface. You can click on the device list to select a device. The three buttons (Setup, Upgrade, and Reset to default) won’t be enabled until you select at least one device. Installation wizard allows you to setup or upgrade multiple devices (of the same model) at the same time.

  • Page 17: Action Buttons

    Action buttons Click on this button to clean up the device list and search all devices on the within the same subnet again. It will take about 5 seconds. To setup or upgrade the devices which can not be found by Installation Wizard, please click on this button to add them manually.

  • Page 18: Function Buttons

    The default password is the MAC address of your own FCS-1040, which marks at the bottom label of each device. Please enter the MAC address with capital letters.

  • Page 19: System Setting

    System Setting After connected to the selected device(s), it will switch to system setting page. Click on this button to back to the previous page or main page Click on this button to keep the settings and go to the next page. Click on this button to discard the settings of the current page and go to the next page.

  • Page 20: Change Root Password

    Change root password To change the administrator’s password, type the new password in both root password and confirm password text boxes identically. What is typed will be displayed as asterisks for security purposes. The maximum password is 14 characters. Adjust date and time There are three ways to adjust system date and time.

  • Page 21: Network Setting

    Network Setting In this page, you can change the server’s IP address, subnet mask, default router, primary dns, and secondary dns. Fix the IP address Check "Reset IP address at next boot" will force Network Camera to reconfigure its IP address whenever it reboot. If you want the Network Camera to use a fixed IP, please uncheck the "Reset IP address at next boot"...

  • Page 22: Basic Network Settings

    If the authentication is failed, it will popup a dialog to ask for the correct password and http port number. The default password is the MAC address of your own FCS-1040, which marks at the bottom label of each device.

  • Page 23: Package Information

    Package Information The package information will show the information about the file that you selected. Firmware version: The version number of the selected firmware. Supported script version: The maximum script version that firmware can support. Web page version: The version number of the web page. - 22 -...

  • Page 24: File Selection

    Script version: Script version used by web page and server script. Viewer plugin version: The version number of the viewer plugin. Upgrade plugin version: The version number of the upgrade plugin Supported language: The language that the selected file supports. File Selection You can use the file combolist to browse the file that you want upgrade onto the selected device(s).

  • Page 25: How To Use

    After successful linkage, the authentication window should pop up. The default user name is root. The default password is the MAC address of your own FCS-1040, which marks at the bottom label of each device. Please enter the MAC address with capital letters.
  • Page 26 - 25 -...

  • Page 27: Primary User's Capabilities

    Primary User’s Capabilities Main Screen with Camera View The main page layout has three parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. Pan/Tilt/Zoom control buttons: These buttons provide a command interface to control the aim of the camera.

  • Page 28: The Configuration

    The Configuration: “Digital Output” Clicking on the “On” or “Off” button turns the digital output to either on or off status. “Snapshot” Clicking on the “Snapshot” can get a JPEG format image of the current camera view in another window. “Client Settings”...

  • Page 29: The Ccd Control Buttons

    “Tilt speed” This selection box sets the moving range of the “Up” and “Down” commands. “Zoom speed” This selection box sets the moving range of the “zoom in” and “zoom out” commands. “Auto pan” This button commands the camera to pan from the current position to the left-most and then to the right-most position.

  • Page 30: Client Settings

    Client Settings There are four settings for the client side. Media Options - For the User to determine whether to receive video, audio or both. Protocol Options – Which allows choosing on connection protocol between client and server. There are two protocol choices to optimize your usage – UDP and HTTP. The UDP protocol allows for more real-time audio and video streams.
  • Page 31 client periodic update the JPEG image from server according to the “Frame rate” settings. Talk Button Control Style – For the User to determine whether to “click once and talk” or “push to talk”. - 30 -...

  • Page 32: Administrator's Capabilities

    Administrator’s Capabilities Fine-tuning for Best Performance There are a few choices the Administrator is allowed to maximize the capabilities of the Network Camera. Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The six factors, “Size”, “Maximum frame rate”, “Video codec type”, “Key frame interval”, “Fix bit rate”, and “Fix quality”...

  • Page 33: Only Quality Images Will Do

    broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, or set “Fix quality” at the highest quality. The maximum frame rate is 25 fps in a 50Hz system and 30 fps in a 60Hz system. If your network bandwidth is more than 384Kbps, you can fix the bit rate according to your bandwidth and set the maximum frame rate to 25 fps or 30 fps.

  • Page 34: Select For Motion Jpeg

    Select for Motion JPEG The Network Camera with Pan/Tilt/Zoom is a camera with dual video codec, they’re MPEG4 and MJPEG. If MJPEG is selected, the camera will transmit video data in JPEG format. Therefore, it requires higher bandwidth to view smooth video. General speaking, each normal sized JPEG image would be 3k~12k bytes, depending on the selected video quality and contents.

  • Page 35: Opening Accounts For New Users

    Opening Accounts for New Users Protect Network Camera by Passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended to be accessed by others.

  • Page 36: More Flexible Options For Viewers

    the server. You may edit or delete some users from the third field. More Flexible Options for Viewers If you want to have a guest account for viewers only, you just need to add a user without password and disable all the privileges. Share the account to your friends to access your camera.
  • Page 37 will remain constant. 1. Click on “Configuration” on the homepage, 2. Click on “Mail & FTP” in the left column, 3. Fill in the FTP related settings including server, server port, user name and password, as well as the upload path if it is specified by the web space, - 36 -...

  • Page 38: If The Web Space Has No Ftp Service

    4. Click on “Save”, 5. Click on “Application” in the left column, 6. Select the day or days of the week in “Weekly schedule” you want to upload the pictures, 7. Select “Sequential operation” and set the interval, 8. Unselect “FTP put snapshots with date and time suffix” as the upload method and click on “Save”, 9.
  • Page 39 Example of an auto-refresh web page: <html> <head> <title>Example - auto refresh</title> </head> <body> <p align=left> <font size="7" face="Comic Sans MS" color="#FF0000"> MiniAVServer Demo </font> </p> <p align=left> <!-- Begin of scripts to auto refresh the image. Change the IP address in the image URL and refreshrate if necessary.

  • Page 40: Build A Security Application

    Build a Security Application The Administrator can combine options on the application page to perform many useful security applications. There trigger sources coming from attached devices, such as for motion detection. There are also two kinds of actions responding such events, including uploading snapshots over the...

  • Page 41: Send Snapshots When Motion Is Detected

    Send Snapshots When Motion is Detected If no external sensor is available, the Administrator can use the built-in motion detection to monitor any movement and send snapshots via emails for security check. 6. Click on “Motion detection” in the left column, 7.

  • Page 42: Definitions In Configuration

    Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration.

  • Page 43: System Parameters

    System Parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED on the rear. It can prevent the camera’s operation being noticed. "Keep current date and time"...

  • Page 44: User Group Administration

    User Group Administration “Root password” Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing , the web browser will ask the Administrator for the new password for access.
  • Page 45 <url> http://<Network Camera>/setup/security.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 44 -...

  • Page 46: Edit User

    Edit User Type the new password, change the privilege and press to modify the account. <url> http://<Network Camera>/setup/edituser.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 45 -...

  • Page 47: Network Settings

    Network Settings Any changes made on this page will need to restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on "Get IP address automatically" & “Use fixed IP address” The default status is “Get IP address automatically”. This can be tedious having to perform software installation whenever the Network Camera starts.

  • Page 48: Streaming

    when the Administrator changes the HTTP port of the Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the User must type in the web browser “http://192.168.0.100:8080” instead of “http://192.168.0.100”. Streaming “UDP Audio channel port” This can be something other than the default port 5002 in order to work with the port opened by the firewall.

  • Page 49: Ddns & Upnp

    DDNS & UPnP “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges. “Host Name” If the User wants to use DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server.
  • Page 50 <url> http://<Network Camera>/setup/ddnsupnp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 49 -...

  • Page 51: Mail & Ftp

    Mail & FTP SMTP “1st SMTP (mail) server” The domain name or IP address of the external email server. “1st SMTP account name” Granted account name on the email server. “1st SMTP password” Granted password on the email server. “1st recipient email address” The email address of recipients for snapshots or log file.
  • Page 52 “1st FTP passive mode” The Network Camera is located inside the network protected by a firewall, data connection for FTP may be prohibited. By selecting passive mode, the FTP can bypass the rule and allow snapshot upload to proceed. If the passive mode is selected, the Network Camera can automatically attempt for active mode, if the external FTP server does not support passive mode.
  • Page 53 <url> http://<Network Camera>/setup/mailftp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 52 -...

  • Page 54: Video Codec Parameters

    Video Codec Parameters “Text on video” The text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from date and time of the Network Camera that is maintained by a built-in real-time clock. “Color”...

  • Page 55: Image Settings

    established. <url> http://<Network Camera>/setup/video.vspx <Network Camera> is the domain name or original IP address of the Network Camera. Image Settings Click on “Image Settings” to pop up another window for tuning "Brightness", “Contrast”, “Hue” and "Saturation" for video compensation. - 54 -...

  • Page 56: Ccd Settings

    Each field eleven levels ranged from -5 to +5. The User may press “Preview” to fine-tune the image. When the image is O.K., press “Save” to set the image settings. Click “Restore” to recall the original settings without incorporating the changes.
  • Page 57 There are several selectable items for AES. Faster electronic shutter helps seeing fast moving objects more clearly. Checking “Low lux mode” helps seeing object in poor illuminative environment. Turning on “Auto switch to B/W in low lux mode” together with “Low lux mode”...
  • Page 58 The picture illustrates the corresponding areas of the selecting window in the real video. “Select All” will check all the areas in the windows and “Clear All” will do vice versa. “Save” button can set the selected areas for BLC. In the CCD settings window, click on “Preview”...

  • Page 59: Audio

    Audio “Transmission mode” There are five options to select. For all the modes, only one client can talk to the server at the same time. “Full-duplex (Talk and listen simultaneously)” In this mode, the User can talk to the server while listening sound from the server simultaneously. “Half-duplex (Talk or listen, not at the same time)”...
  • Page 60 <url> http://<Network Camera>/setup/audio.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 59 -...

  • Page 61: Motion Detection

    Motion Detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold and drag the window frame to resize or the title bar to move.
  • Page 62 <url> http://<Network Camera>/setup/motion.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 61 -...

  • Page 63: Camera Control

    Camera Control On the Camera Control page, there are two main function control areas: Camera control area The pan and tilt functions can be controlled with these buttons. The “Left” button aims the camera to the left; the “Right”, “Up”, and “Down” buttons aim the camera accordingly.
  • Page 64 Camera is doing auto panning. “Enable IR control” Checking this box allows the Administrator to enable the IR controller to move the aim of the camera. To allow controls only through URL commands or web pages, leave this box unchecked. “Zoom times display”...
  • Page 65 Camera control area Preset function area <url> http://<Network Camera>/setup/camctrl.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 64 -...

  • Page 66: Application Setup

    Application Setup Weekly Schedule “Sun” ~ “Sat” Select the days of the week to perform the following operations. “Snapshots begin at” Set the time to start operations. “Snapshots stop at” Set the time to stop operations. Setting identical begin time and stop time means 24-hour operation.

  • Page 67: Sequential Operation

    is open. Either email or FTP can be used to command uploading snapshots. The snapshot names will be “videopre.jpg”, “videotrg.jpg”, and “videopos.jpg”, respectively. They stand for the snapshots, before event, right upon event, and after event. The date and time suffix may also be added as an option. Confirm the external mail or FTP server settings in the network configuration.
  • Page 68 <url> http://<Network Camera>/setup/app.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 67 -...

  • Page 69: Viewing System Log

    Viewing System Log Click on the link on the configuration page to view the system log file. The content of the file provides useful information about configuration and connections after system boot-up. Viewing System Parameters Click on this link on the configuration page to view the entire system’s parameter set. The content is the same as those in CONFIG.INI.

  • Page 70: Appendix

    Appendix A. Troubleshooting Status LED After powering up, the Network Camera performs a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general. In case of any fatal error, the LED will blink in a pattern other than those below. Condition LED color During self-diagnostic after power on...
  • Page 71 B. Frequently Asked Questions Q What if I forget my password? A After the Administrator's password has been assigned, every access to the Network Camera needs authentication. If you are one of the managed users, you have to ask the Administrator for the password. If you are the Administrator, there is no way to recover the root password except by restoring the factory default settings.
  • Page 72 Q Can I install it on ceiling? A Yes. There are flip and mirror options in video configuration page to correct the images for upside down installation. Q The image is not clear enough. A Rotate the lens to adjust the focus after the Network Camera has been installed in the proper position.
  • Page 73 Q How fast is the video rate of the Network Camera? A The MPEG4 codec engine can process up to 30 frames per second internally. However the total performance is subject to many coefficients such as: 1. Network throughput, 2. Bandwidth share, 3.

  • Page 74: Cleaning The Lens

    B. Cleaning the Lens The Network Camera with Pan/Tilt/Zoom is a network camera with high quality lens. When it is necessary to clean the lens, please follow these instructions: Prepare cotton swabs and alcohol. Moisten the cotton swab with alcohol. Slightly clean the lens.

  • Page 75: Overview

    Overview This section specifies the external HTTP based application programming interface. The HTTP based camera interface provides the functionality to request a single image, to control camera functions (PTZ, output relay etc.) and to get and set internal parameter values. The image and CGI-requests are handled by the built in Web server. Style Convention In URL syntax and in descriptions of CGI parameters, a text in italic within angle brackets denotes a content that is to be replaced with either a value or a string.

  • Page 76: General Cgi Url Syntax And Parameters

    Example: request a single snapshot image http://mywebserver/cgi-bin/video.jpg General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, the internal parameters must be written exactly as they are named in the camera or video server.

  • Page 77: Set Server Parameter Values

    Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] <length> is the actual length of content. Example: request IP address and it’s response Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Set Server Parameter Values Note: This request require administrator access Method: GET/POST Syntax:...

  • Page 78: Available Parameters On The Server

    (note: this parameter must be put at begin of parameter list) <group>_<name>. value to assigned Assign <value> parameter <group>_<name>.. <return page> Redirect to the page <return page> after the return parameter is assigned. The <return page> can be a full URL path or relative path according the the current path.
  • Page 79 <auto> Using sync date/time automatically <domain name or IP NTP server (r/w) address> timezone -12 ~ 12 time zone, 8 means GMT +8:00 (r/w) updateinterval 0 ~ 2147483 0 to Disable automatic time adjustment, (r/w) otherwise, means seconds between NTP automatic update interval. serialnumber <mac address>...
  • Page 80 (r/w) userattr_<1~1 [dido][|talk][|listen][|c change user’s privilege. The privilege can be 0> amctrl][|conf] the combination of (r/w) dido – Permit I/O access talk – Permit to talk to server listen – Permit to listen from server camctrl – Permit to do camera control conf –...
  • Page 81 (r/w) mailuser1> smtp2 <domain name secondary SMTP server, max 40 characters (r/w) address> mailto2 <text string shorter than mail recipient address, max 80 characters (r/w) 80 characters> mailuser2 <user account name on mail recipient address, max 63 characters (r/w) smtp server> mailpass2 <user password...
  • Page 82 (r/w) server> 40 characters ftppassmode2 Enable passive mode of primary FTP server (r/w) Disable passive mode of primary FTP server httpport <number less than HTTP port (r/w) (restart) 65535> videoport <number less than video Channel port for UDP (r/w) 65535> audioport <number less...
  • Page 83 512000 set bit rate to 512K bps 768000 set bit rate to 768K bps 1000000 set bit rate to 1000K bps 1200000 set bit rate to 1200K bps maxframe set maximum frame rate to 1 fps (r/w) set maximum frame rate to 2 fps set maximum frame rate to 3 fps set maximum frame rate to 5 fps set maximum frame rate to 10 fps...
  • Page 84 lowbandwidth Disable low bandwidth environment support (r/w) Improve in low bandwidth environment enableaec Disable (r/w) Group: Image NAME VALUE DESCRIPTION brightness <-5 ~ 5> Adjust brightness of image according to (r/w) mode settings. saturation <-5 ~ 5> Adjust saturation of image according to (r/w) mode settings.
  • Page 85 win<1~3>_height 0 ~ 288 for PAL Height of motion detection window. (r/w) 0 ~ 240 for NTSC & CMOS update Update the above motion detection settings to take effect Group: DDNS NAME VALUE DESCRIPTION enable 0, 1 Enable or disable the dynamic dns. (r/w) provider 1 ~ 4...
  • Page 86 (r/w) -5 ~ 5 Zoom speed zoomspeed (r/w) autospeed -5 ~ 5 Auto pan speed (r/w) dwelling 0 ~ 9999 Time to dwelling when patrol (r/w) enableir 0, 1 Enable or disable the IR control (r/w) presetname_<0~9> Text string shorter than The name of preset location (r/w) 30 characters.

  • Page 87: Drive The Digital Output

    blcarea(0) 0~255 First row in BLC area. 0 to indicate (r/w) disabling all sub windows. 255 to indicate enabling all sub windows. blcarea(1) 0~255 Second row in BLC area. (r/w) blcarea(2) 0~255 Third row in BLC area. (r/w) blcarea(3) 0~255 Fourth row in BLC area.

  • Page 88: Query Status Of The Digital Input

    a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page. Example: Drive the digital output 1 to high and redirect to an empty page http://myserver/cgi-bin/setdo.cgi?do1=H Query Status of the Digital Input Note: This request requires the privilege of I/O access control.

  • Page 89: Capture Single Snapshot

    Content-Type: image/jpeg\r\n Content-Length: 7\r\n \r\n di1=H\r\n Capture Single Snapshot Note: This request require normal user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/video.jpg Server will return the most up-to-date snapshot in JPEG format. The size and quality of image will be set according to the JPEG settings on the server. Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n...

  • Page 90: System Logs

    parameter value description method Add an account to server. When using this method, “username” field is necessary. It will use default value of other fields if not specified. delete Remove an account from server. When using this method, “username” field is necessary, and others are ignored.

  • Page 91: Configuration File

    Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Configuration File Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/configfile.cgi Server will return the up-to-date configuration file. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n...

  • Page 92: Upload File (Firmware)

    Upload File (firmware) Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upload.cgi Post data: file=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be stored on the flash as “flash.bin” and return with <return page> if indicated. Camera Control Note: This request requires camera control access privilege Method: GET/POST...

  • Page 93: Recall

    right Move camera right speedpan -5 ~ 5 Set the pan speed speedtilt -5 ~ 5 Set the tilt speed speedzoom -5 ~ 5 Set the zoom speed speedapp -5 ~ 5 Set the auto pan/patrol speed auto Auto pan patrol Auto patrol stop...

  • Page 94: System Information

    parameter value description recall Text string less One of the present positions to recall. than 30 characters return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path.

  • Page 95: Preset Locations

    Where the <PTZ status> is a 32-bits integer, each bit can be set separately as follows: Bit 0 => Support camera control function 0(not support), 1(support) Bit 1 => Build-in or external camera. 0(external), 1(build-in) Bit 2 => Support pan operation. 0(not support), 1(support) Bit 3 =>...

  • Page 96: Technical Specifications

    D. Technical Specifications - System - Audio CPU: Trimedia PNX1300 32Kbps, 24Kbps, 8Kbps RAM: 16MB SDRAM Acoustic echo cancellation ROM: 4MB FLASH ROM Full duplex audio communication - Networking - Microphone Protocol Omni-directional TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS UPnP, Frequency: 20 –...
