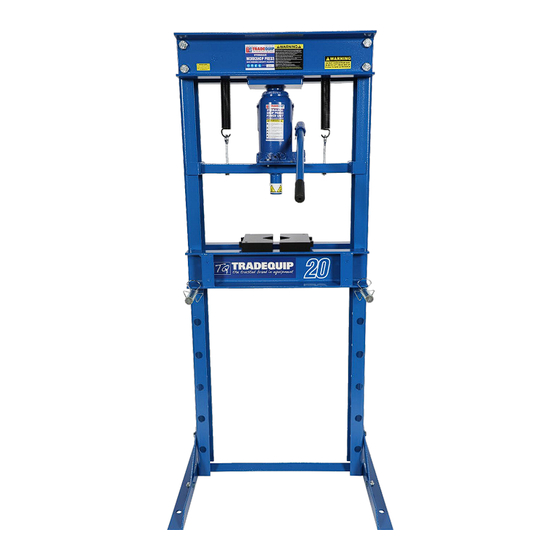

HYDRAULIC PRESS
1061T Specifications:
• Safe Working Capacity: 20,000kg
• Working Range: 63-783mm
• Overall Height: 1503mm
• Overall Width: 700mm
• Overall Depth: 660mm
• Bed Width: 504mm
• Piston Ram Stroke: 160mm
• Nett Weight: 89kg
1062T Specifications:
• Safe Working Capacity: 30,000kg
• Working Range: 50 - 710mm
• Overall Height: 1605mm
• Overall Width: 743mm
• Overall Depth: 660mm
• Bed Width: 638mm
• Piston Ram Stroke: 165mm
• Nett Weight: 112kg
With
proven
and
Product Code: 1061T/1062T
trusted "Made
for
the
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TradeQuip 1061T
Summary of Contents for TradeQuip 1061T
- Page 1 • Overall Depth: 660mm • Bed Width: 638mm • Piston Ram Stroke: 165mm • Nett Weight: 112kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made...
-
Page 2: Table Of Contents
Product Code: 1061T/1062T WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works. -
Page 3: Standard Operating Procedure
Only use this device for the purpose for which it has been designed. • When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty. • Use the right product for the job. There are certain applications for which the Hydraulic Workshop Press was designed. Do •... -
Page 4: Assembly, Operation, Preventitive Maintenance
1. FEATURES This TradeQuip "Made for the Trade" Hydraulic Workshop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. The polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals. -
Page 5: Maintenance
Product Code: 1061T/1062T Note: Always keep the piston fully retracted after use to avoid corrosion 5. STORAGE This Hydraulic Workshop Press should always be stored in a dry location with the ram and piston fully retracted on a level surface. - Page 6 Product Code: 1061T/1062T PARTS LIST - 1061T Part# Description Part# Description Upper Lock Washer Frame Washer Lock Support Washer Bolt Handle Lower Frame Cover Handle Bed Frame Cover Bolt Steel Block Upright Washer Beam For Bottle Bolt Jack Eye Bolt...
- Page 7 Product Code: 1061T/1062T PARTS LIST - 1062T Part Description Steel Block Bed Frame Bolt Bolt Support Washer Lock Washer Upright Lower Frame Beam Washer Eye Bolt Spring Pressure Gauge Screw Upper Frame Bolt Washer Lock Washer Handle Handle Cover Made in China to TQB Brands Pty Ltd specifications...
-
Page 8: Trouble Shooting
Product Code: 1061T/1062T TROUBLE SHOOTING PROBLEM SYMPTOM CAUSE CONCLUSION SOLUTION Press Jack will not Pump has resistance Release valve not Bypass through Ensure Release tightly Build Pressure but no ram force tightly closed release valve closed Pump has no Air in Hydraulic system... -
Page 9: Warranty
WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
