TradeQuip 2037T Owner's Manual

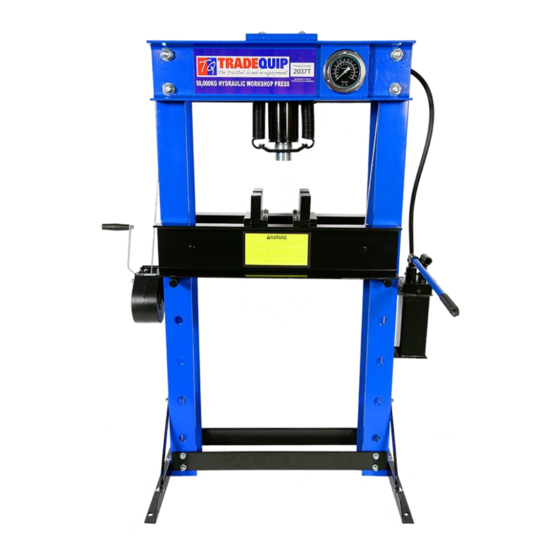

Hydraulic press
Hide thumbs

Advertisement

Table of Contents

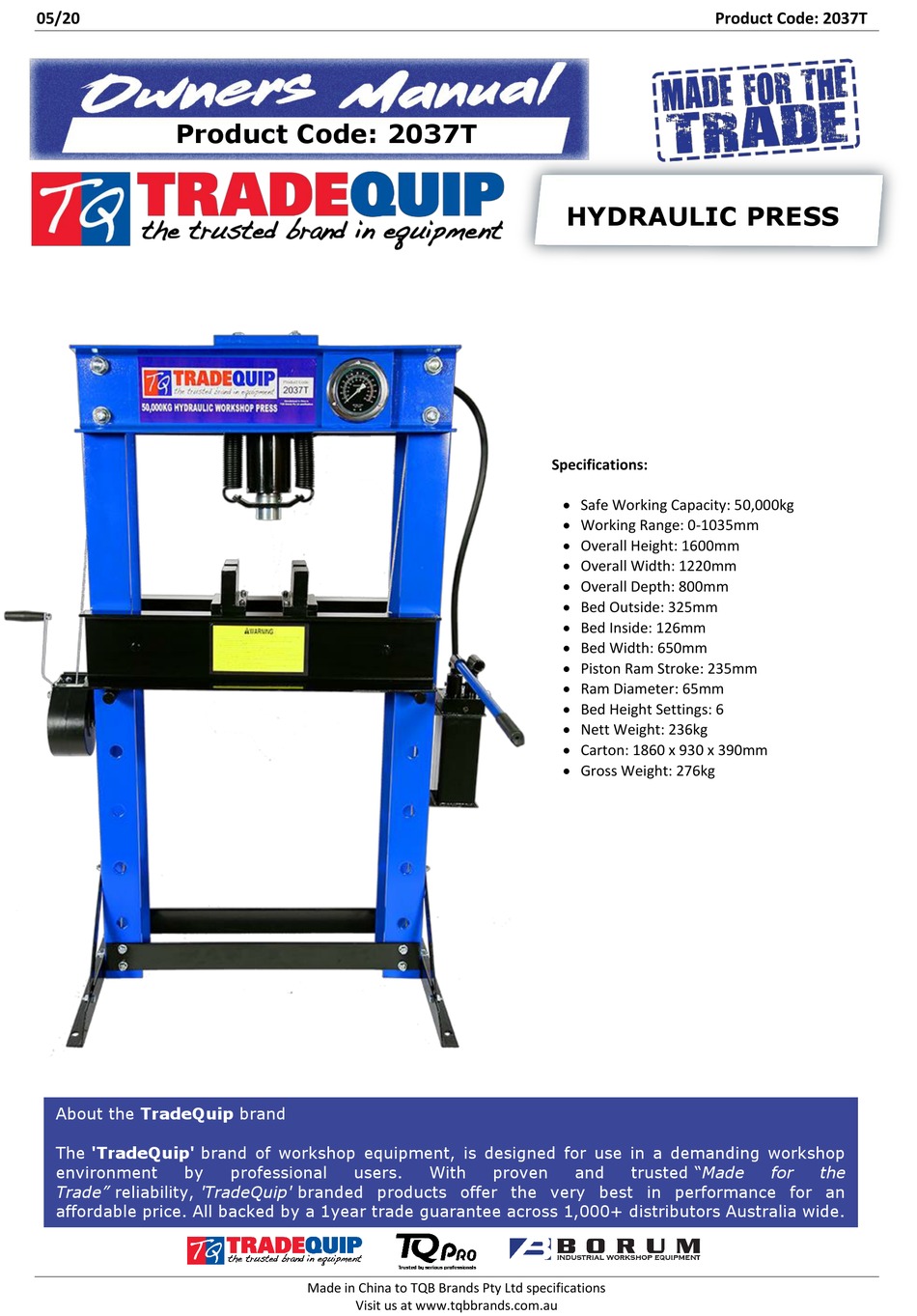

05/20
Product Code: 2037T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
professional
users.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
HYDRAULIC PRESS
Specifications:
 Safe Working Capacity: 50,000kg
 Working Range: 0-1035mm
 Overall Height: 1600mm
 Overall Width: 1220mm
 Overall Depth: 800mm
 Bed Outside: 325mm
 Bed Inside: 126mm
 Bed Width: 650mm
 Piston Ram Stroke: 235mm
 Ram Diameter: 65mm
 Bed Height Settings: 6
 Nett Weight: 236kg
 Carton: 1860 x 930 x 390mm
 Gross Weight: 276kg
With
proven
and
Product Code: 2037T
trusted "Made
for
the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2037T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TradeQuip 2037T

Summary of Contents for TradeQuip 2037T

  • Page 1  Bed Height Settings: 6  Nett Weight: 236kg  Carton: 1860 x 930 x 390mm  Gross Weight: 276kg About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made...

  • Page 2: Table Of Contents

    Product Code: 2037T WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works.

  • Page 3: Standard Operating Procedure

    Only use this device for the purpose for which it has been designed.  When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty.  Use the right product for the job. There are certain applications for which the Hydraulic workshop press was designed. Do not modify the Hydraulic workshop press and do not use the Hydraulic workshop press for a purpose for which it was not intended.

  • Page 4: Assembly, Operation, Preventitive Maintenance

    ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES The TradeQuip Hydraulic Workshop Press is a heavy duty hydraulic press. It is ideal for a variety of workshop applications and in particular suited to automotive, agricultural or industrial use. Jobs such as straightening, bending, folding, punching, removing bolts and bearings etc are some of tasks that may be accomplished by your Hydraulic Workshop Press.

  • Page 5: Parts List

    Product Code: 2037T 6. MAINTENANCE  Check all fittings are tight before each use.  Lubricate all joints and moving parts with light oil at regular intervals.  Always keep the press clean, dry, and protected from harsh conditions. ...
  • Page 6 Product Code: 2037T Part # Description Knob Pin 5x24 Release Valve O-ring Ball Valve Handle Bracket Joint Pole Pole Seat Piston J-Ring Pump Housing Base Bolt M8x12 Spring Ball Valve Ball Seat Spring Safety Valve Screw Safety Nut MB Cover...

  • Page 7: Warranty

    WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
