Product Code: 1063T
About the TradeQuip brand
The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop
environment
by
Trade" reliability, 'TradeQuip' branded products offer the very best in performance for an
affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
professional
users.
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au

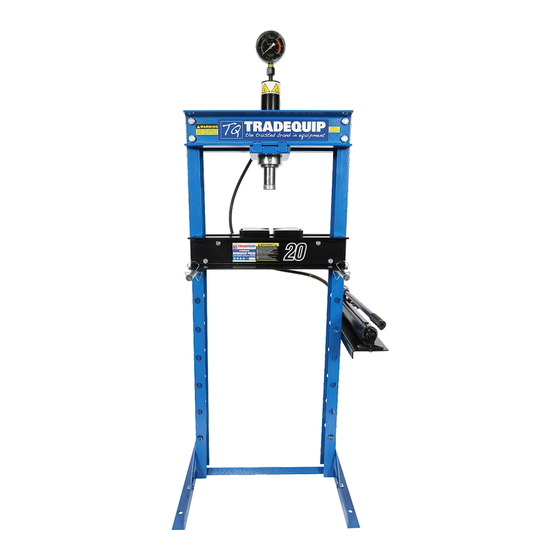

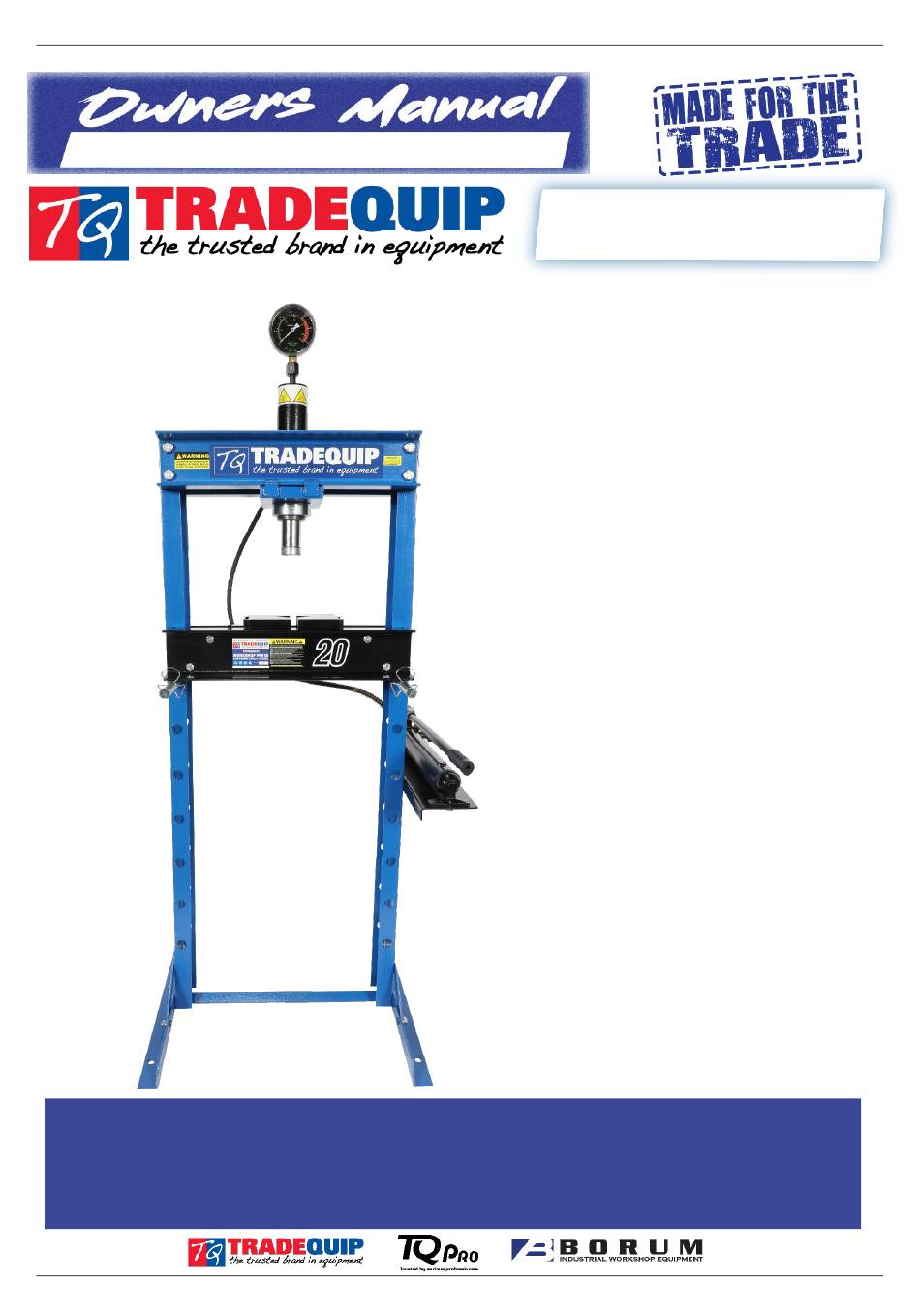

HYDRAULIC PRESS
Specifications:
•
Safe Working Capacity: 20,000kg
•
Working Range: 30 - 870mm
•
Overall Height: 1795mm
•
Overall Width: 780mm
•
Overall Depth: 655mm
•
Bed Width: 505mm
Piston Ram Stroke: 185mm
•
With
proven
and
Product Code: 1063T
trusted "Made
for
the
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TradeQuip 1063T
Summary of Contents for TradeQuip 1063T
- Page 1 • Overall Depth: 655mm • Bed Width: 505mm Piston Ram Stroke: 185mm • About the TradeQuip brand The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment professional users. With proven trusted “Made Trade” reliability, 'TradeQuip' branded products offer the very best in performance for an affordable price.
-
Page 2: Table Of Contents
Product Code: 1063T WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works. -
Page 3: Standard Operating Procedure
• • When servicing, use only TradeQuip identical replacement parts. Use of any other parts will void the warranty. • Use the right product for the job. There are certain applications for which the Hydraulic Workshop Press was designed. Do not modify the Hydraulic Workshop Press and do not use the Hydraulic Workshop Press for a purpose for which it was not intended. -
Page 4: Assembly, Operation, Preventitive Maintenance
1. FEATURES This TradeQuip "Made for the Trade" Hydraulic Workshop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. The polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals. - Page 5 Product Code: 1063T • When work is complete release the pressure back to fully closed position using the release valve and the piston/ram head will retract automatically. Note: Always keep the piston fully retracted after use to avoid corrosion 5. STORAGE This Hydraulic Workshop Press should always be stored in a dry location with the ram and piston fully retracted on a level surface.
-
Page 6: Parts List
Product Code: 1063T PARTS LIST – 1063T 1063T Made in China to TQB Brands Pty Ltd specifications Page 6 Visit us at www.tqbbrands.com.au... - Page 7 Product Code: 1063T PARTS LIST – 1063T Made in China to TQB Brands Pty Ltd specifications Page 7 Visit us at www.tqbbrands.com.au...
- Page 8 Product Code: 1063T PARTS LIST – 1063T Part # Description Part # Description Steel Ball Screw Seat O-Ring Spring Screw O-Ring O-Ring Pulling Rod Screw Oil Tank Red Cap Screw O-Ring Release Filter Valve Pump Base Oil Hose Steel Ball...
-
Page 9: Trouble Shooting
Product Code: 1063T TROUBLE SHOOTING PROBLEM SYMPTOM CAUSE CONCLUSION SOLUTION Ram will not Build Pump has resistance Release valve not Bypass through Ensure Release tightly Pressure but no ram force tightly closed release valve closed Pump has no Air in Hydraulic system... -
Page 10: Warranty
WARRANTY TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
