MM-10XP SUBWOOFER

The MM-10XP is powered by a Meyer Sound external
48 V DC power supply, eliminating the need for wiring
conduits while still preserving the advantages of self-
powered loudspeaker systems. The unit's onboard amplifier
and signal-processing circuits were designed to store DC
power and tolerate voltage drops, thereby accommodating
light-gauge cables and lengthy cable runs.

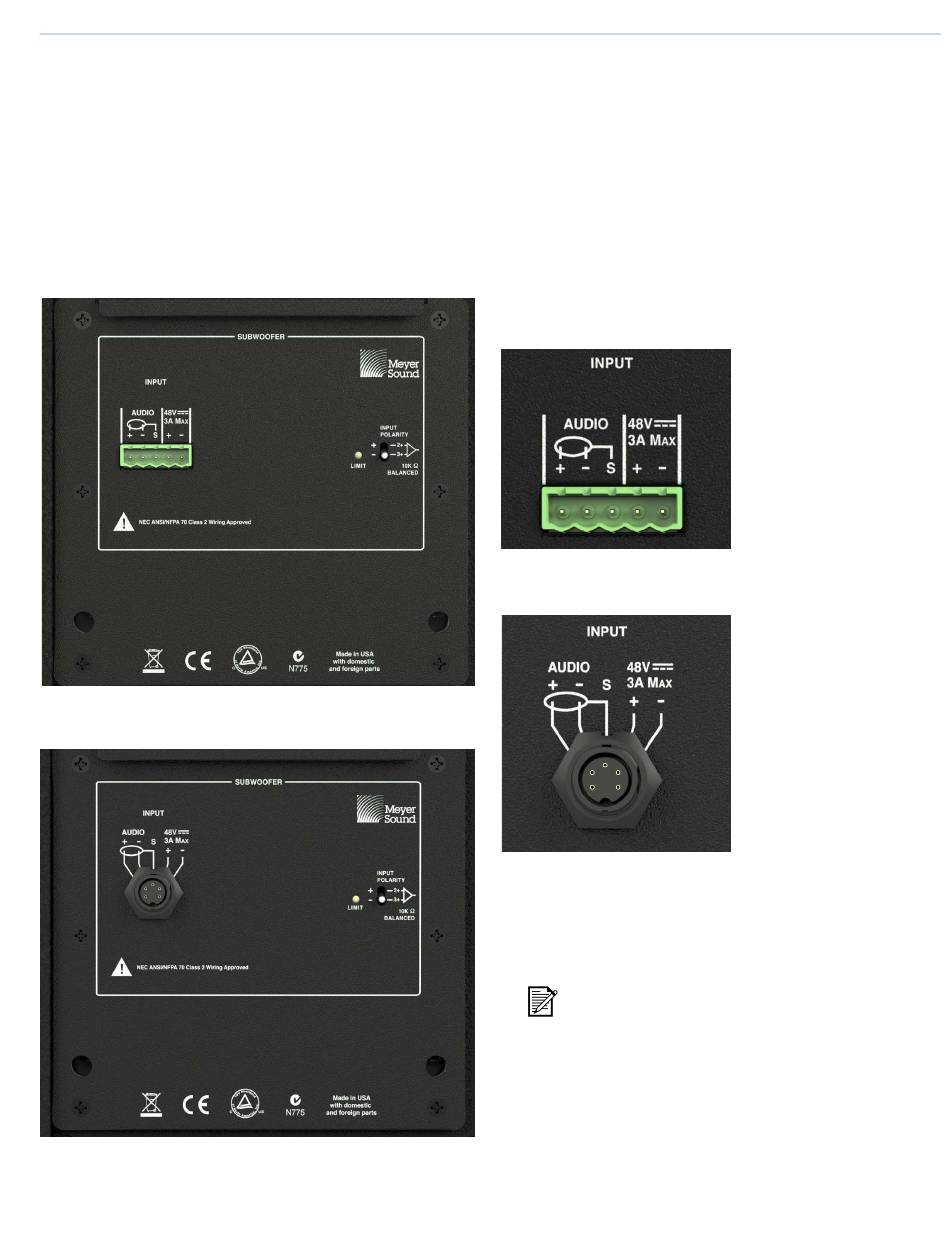

MM-10XP Rear Panel, Phoenix Connector
MM-10XP Rear Panel, EN3 Connector

MM-10XP INPUT CONNECTOR

The MM-10XP subwoofer is available with either a Phoenix
5-pin male or SwitchCraft EN3 5-pin male connector for
receiving DC power and balanced audio. The connectors'
five pins include two for DC power (negative and positive)
and three for balanced audio (shield, negative, and positive).
These pins are clearly labeled on the MM-10XP rear panel.
To function properly, the MM-10XP requires 48 V of DC
power.
Phoenix 5-Pin Male Connector
EN3 5-Pin Male Connector
Depending on the subwoofer's connector, the MM-10XP
ships with either a single Phoenix cable connector or an
EN3-to-pigtail cable for constructing loudspeaker cables.
NOTE: The pin outputs for the MM-10XP EN3
connector is identical to that of the MM-4XP.
However, the MM-10XP EN3 connector has
been rotated to accommodate the unit's internal
connections.
