Meyer Sound UMS-1P Datasheet

D ATASHEET
UMS-1P :

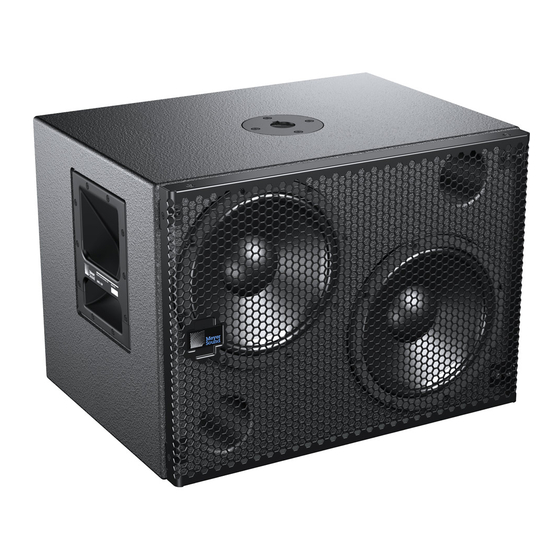

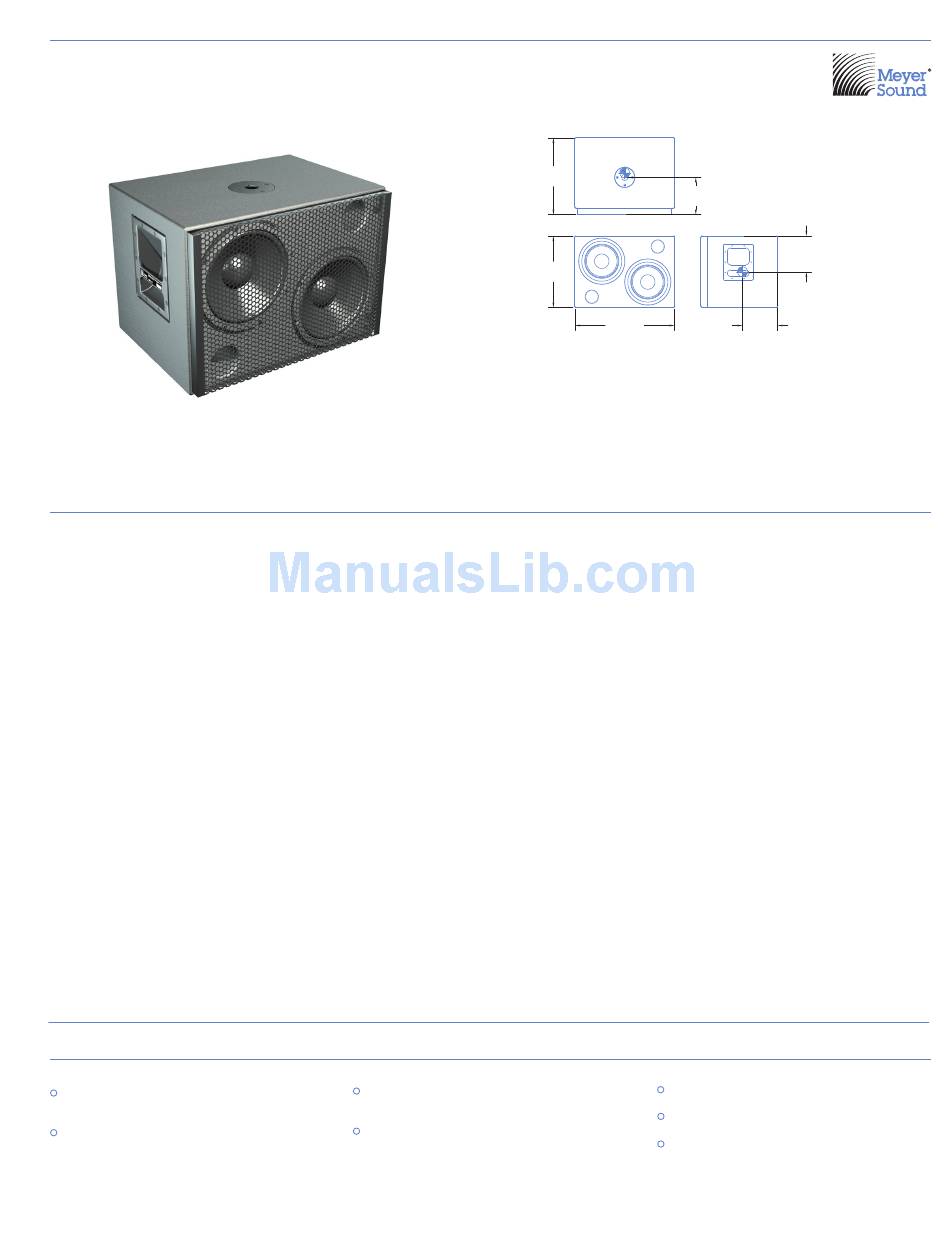

Ultra-Compact Subwoofer
An extremely compact, self-powered sys-
tem, the UMS-1P ultra-compact subwoofer
provides powerful low-frequency exten-
sion in applications where both excellent
audio quality and an unobtrusive cabinet
size are required. The system's output is
127 dB peak SPL within its operating range
of 25 Hz to 160 Hz. Although designed pri-
marily as a companion for Meyer Sound's
UPM-1P wide coverage and UPM-2P narrow
coverage ultra-compact loudspeakers, the
UMS-1P is equally adaptable for use with
other Meyer Sound models such as the HD-1
high-definition studio monitor. The UMS-1P
may be used singly or stacked to provide
even greater low-frequency output.
The tuned bass-reflex enclosure houses
two 10-inch cone drivers, each powered
by a dedicated channel of an integral class
AB/bridged power amplifier with comple-
mentary MOSFET output stages. Total peak
power is 450 watts. Each channel incor-
porates a limiter that prevents driver over-
excursion and regulates the voice coil tem-
features & benefits
Powerful, extended low-frequency
response in a very compact cabinet
Linear driver excursion ensures
exceptionally clean bass response with
very low distortion
Protective Grille
perature. A smooth limiting characteristic
effectively protects the drivers without the
compression effects imposed by typical
limiters, allowing high output levels across
the drivers' entire frequency range.
The internal electronics also provide active
signal processing, including phase correc-
tion circuitry that delivers flat frequency
and phase response over the entire oper-
ating range. Integrating a built-in low-pass
crossover while accepting a full-range sig-
nal, the UMS-1P's input allows for simple
daisy-chain signal distribution and elimi-
nates the need for external crossovers.
Field-replaceable audio input modules ac-
commodate a range of applications. The
standard version offers looping XLR input
and output connectors, while an enhanced
looping version adds polarity switching
(the looping output is not affected) and
input attenuation (0 dB to -18 dB). A sum-
ming mono version with two inputs is also
available.
Adaptable to complement the UPM and
HD-1 systems
Flat, phase-corrected response ensures
maximum fidelity
17.51"
[445 mm]
8.51"
[216 mm]
16.30"
[414 mm]
22.75"
[578 mm]
Dimensions 22.75" w x 16.30" h x 17.51" d (16" without grille)
(578 mm x 414 mm x 445 mm; 406 mm without grille)
Weight 62 lbs (28.10 kg)
Enclosure
Premium birch plywood
Finish
Black textured (other options available)
Powder-coated hex-stamped steel, foam covering
The standard UMS-1P is switchable between
the 115 V AC and 230 V AC ranges. A 100
V AC version is also available. The inte-
gral power supply suppresses high-voltage
transients and also provides EMI filtering.
Dual locking PowerCon connectors facili-
tate AC looping.
The UMS-1P's durable enclosure is con-
structed from premium birch plywood and
is covered with a black textured hard-shell
finish. A hex-stamped steel grille and a
charcoal grey foam cover are included. A
pole mount for supporting a UPM-1P or
UPM-2P is fitted as standard. Options in-
clude custom color finishes, and cabinets
with no handles for fixed applications re-
quiring specific cosmetics.
The UMS-1P is compatible with the RMS™
remote monitoring system, which offers
comprehensive monitoring of system pa-
rameters on a Windows
applications
Mix suites
Small theatre and audio-visual
Houses of worship
U LT RAS ERI ES
8.17"
[208 mm]
8.00"
[203 mm]
-based network.
®
