MM-10 OPERATING INSTRUCTIONS
MM-10XP Subwoofer
The MM-10XP is powered by an external 48 V DC power
supply (see meyersound.com/product/mps
eliminating the need for wiring conduits while still preserving
the advantages of self-powered loudspeaker systems. The
unit's onboard amplifier and signal-processing circuits were
designed to store DC power and tolerate voltage drops,
thereby accommodating light-gauge cables and lengthy
cable runs. The MM-10XP is available with either a
Phoenix™ 5-pin male or SwitchCraft
connector for receiving balanced audio and DC power.
Meyer Sound IntelligentDC External Power Supply
MM-10XPs require a Meyer Sound IntelligentDC external
power supply. The MPS-488HP single-space 19-inch rack
unit receives balanced audio from its XLR female inputs and
routes the audio, along with 48 V of DC power, to its channel
outputs. The channel outputs—equipped with either
Phoenix 5-pin male connectors (MPS-488HP
female connectors (MPS-488HP
up to eight MM-10XP subwoofers. The smaller, 1RU,
half-rack MPS-482HP unit provides power and audio to two
loudspeakers via its two Phoenix 5-pin male connectors.
Meyer Sound IntelligentDC Power Supply
Cable lengths up to 150 feet for DC power are possible
when using 18-AWG wire, with just 1 dB of loss in peak
SPL. Longer cable runs are possible for moderate
applications that do not drive the subwoofers to maximum
output, or for installations with heavier wire gauges.
The use of composite multiconductor cables (such as
Belden 1502) allows a single cable to carry both DC power
®
and balanced audio to the MM-10XPs.
MM-10AC Subwoofer
The MM-10AC is ideal for fixed installations and portable
applications where AC power is readily available to power
the unit. The MM-10AC includes an internal power supply
and locking PowerCON connectors for AC input and AC
loop output (for powering additional MM-10AC subwoofers).
The MM-10AC receives audio from an XLR female input,
and also includes an XLR male loop output for
daisy-chaining audio signals.
10
for details),
EN3™ male
®
) or EN3 5-pin
P
)—can deliver DC power to
E
MM-10ACX Subwoofer
The MM-10ACX model includes onboard DC power and
audio routing for driving a pair of MM-4XP miniature
loudspeakers, effectively placing the MM-10ACX at the
heart of an extremely capable compact, full-range
loudspeaker system.
Three XLR female inputs are included for receiving audio for
the subwoofer and two satellite loudspeakers. The
MM-10ACX is available with either Phoenix 5-Pin male or EN3
5-pin female satellite outputs. A two-channel stereo signal
can be patched to the satellite inputs and summed and routed
to the subwoofer if necessary.

MM-10 OPTIONS

Additional options for the MM-10 include the MUB-MM10
U-bracket for mounting the subwoofer on ceilings and walls;
weather protection, complete with a rain hood, for outdoor
all-weather use; and custom color finishes for installations
and applications with specific cosmetic requirements.

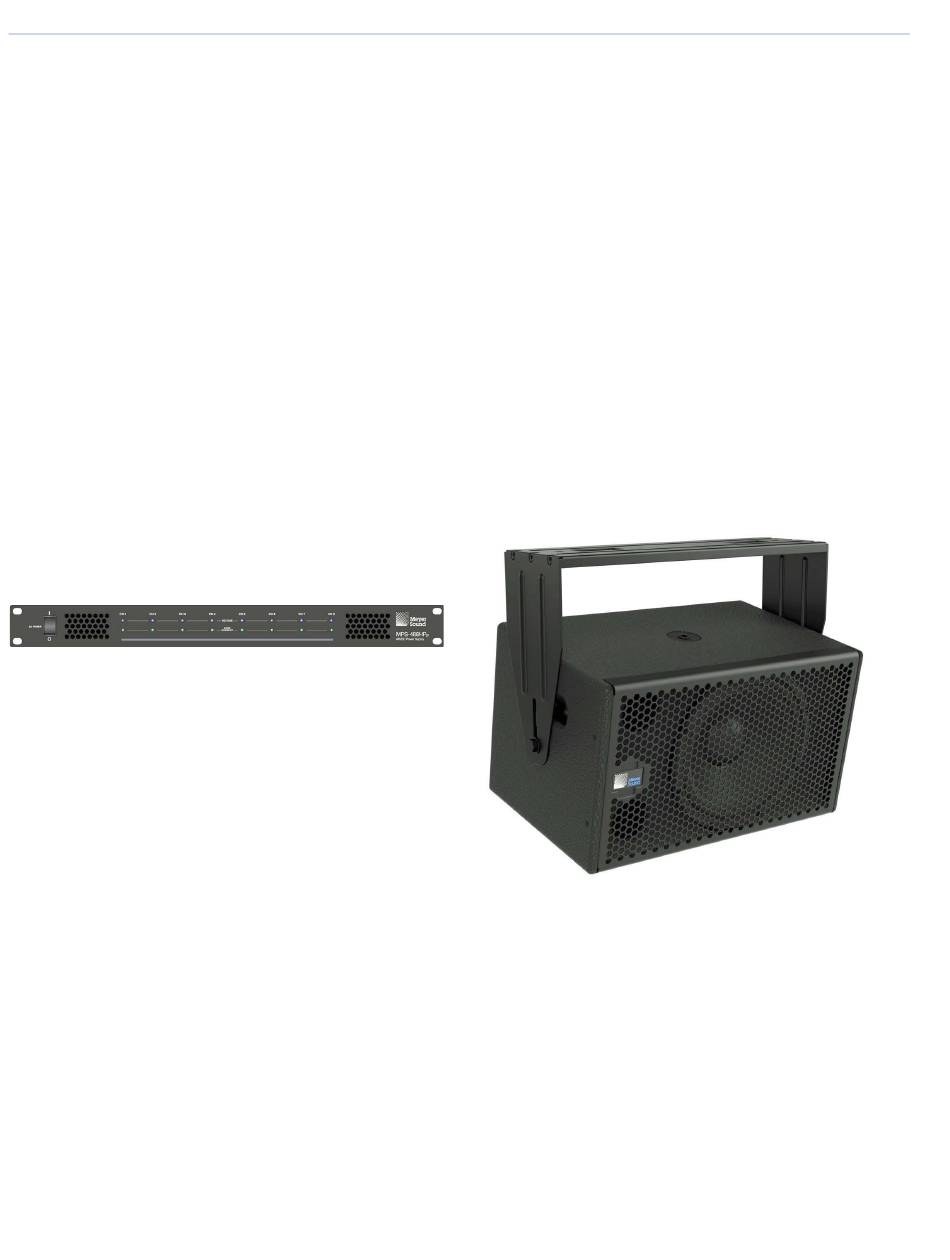

MM-10 with MUB-MM10 U-Bracket
