Meyer Sound PSW-4 Specification Sheet

Meyer Sound PSW-4 Specification Sheet

Self-powered reinforcement subwoofer

Advertisement

FEATURES
P
High-power
Extremely low distortion
Reliable and durable
R
Arrayable
Intelligent AC
Integrated control
electronics and amplifiers
TruPower
Limiting (TPL)
Compatible with the
Remote Monitoring
System
(RMS)
Superior
engineering
for the art
and science
of sound.
Meyer
Sound
PSW-4
Self-Powered Reinforcement Subwoofer

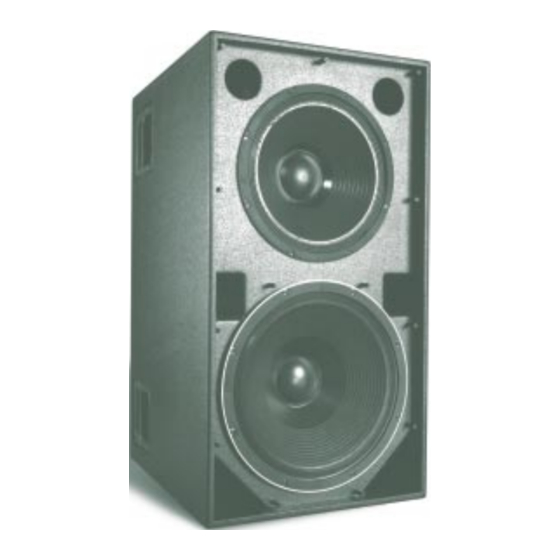

The PSW-4 is a self-powered,
dual-tuned subwoofer that
incorporates one 15" and one
18" driver, to give a frequency
response of 32 Hz to 160 Hz.
Being self-powered, all of the
amplifier and controller
electronics are contained
within the speaker enclosure.
The unit is an effective
companion to the MTS-4
(whenever additional low
frequency power is needed),
but can be used in any
situation where a high-energy,
easy-to-use, true-sounding
subwoofer is needed.
The PSW-4 incorporates the
Intelligent AC
system, which
performs automatic voltage
selection, EMI filtering, soft
current turn-on, and surge
suppression. Simply apply a
signal source and a power
connection, and the unit is
fully operational.
The amplifier unit
is equipped with TruPower
Limiter technology, which
maximizes speaker protection
reliability and component life.
This breakthrough in speaker
control also results in higher
SPL at all frequencies, and
increased available headroom.
Long term power compression,
typically 3-6 dB in conventional
systems, is less than 1 dB.
Maximum SPL capability
remains constant even during
operation at high levels for
extended periods.
PSW-4 performance can be
supervised using the Remote
Monitoring System
(RMS).
This enables users at a
computer terminal to monitor
such parameters as limiting
activity, power output, voltage,
temperature, fan speed,
and driver status.
The cooling, power supply,
and amplifier subsystems
are all built for maximum
efficiency and reliability. In
the event that servicing is
needed, it is aided by the
PSW-4's modular design; the
entire power/amplifier module
can be accessed and replaced,
if necessary.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSW-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meyer Sound PSW-4

  • Page 1 Arrayable Intelligent AC ™ Integrated control electronics and amplifiers TruPower Limiting (TPL) ™ The PSW-4 is a self-powered, dual-tuned subwoofer that Compatible with the incorporates one 15" and one Remote Monitoring System (RMS) ™ 18" driver, to give a frequency response of 32 Hz to 160 Hz.
  • Page 2: Specifications

    LISTED 3K59 ® COMMERCIAL AUDIO SYSTEM Made by Meyer Sound, Berkeley, CA, USA European Office: Mains circuit Meyer Sound Europe breakers Dalston House 39-49 Hastings Street Mains AC inlet...
