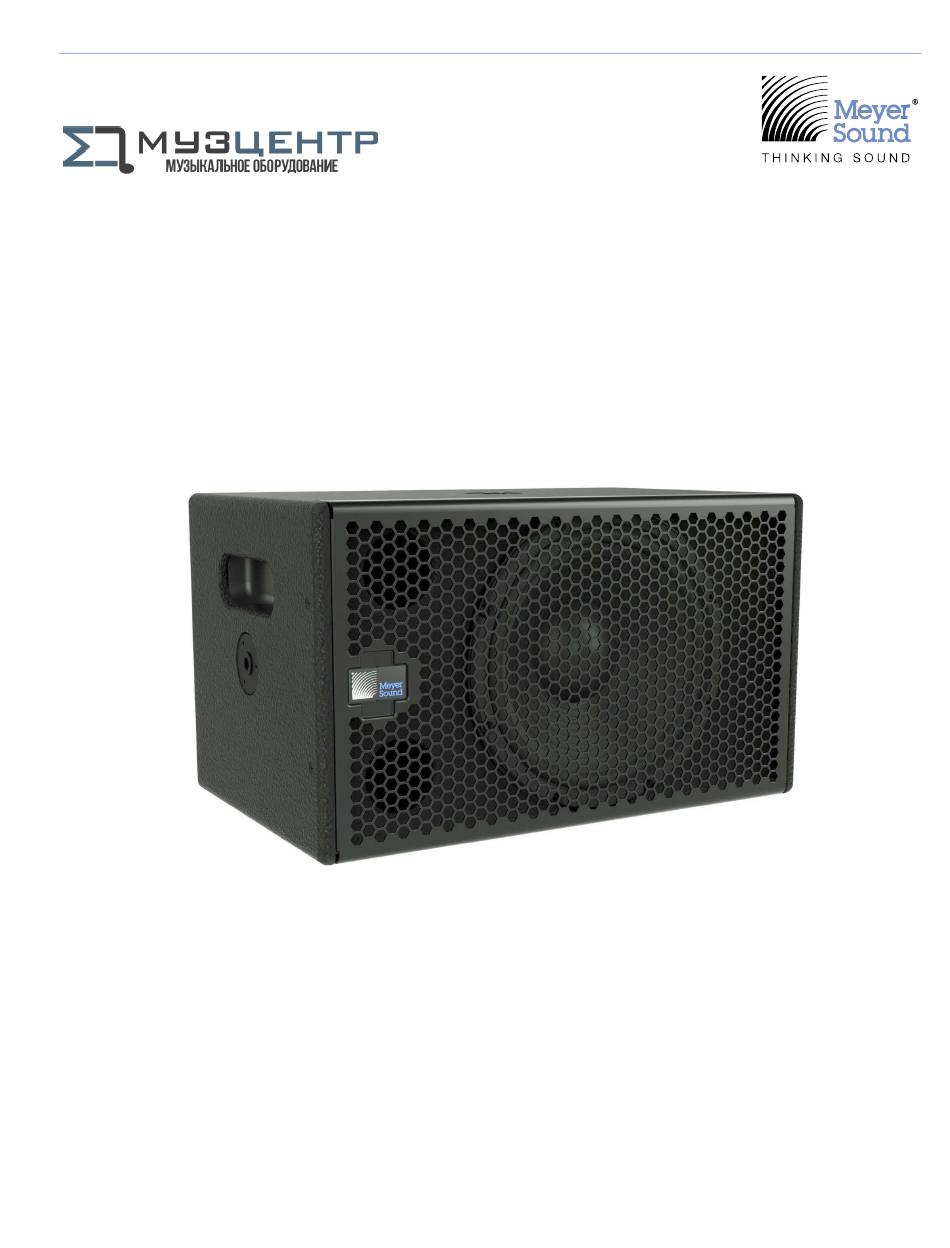

OPERATING INSTRUCTIONS
LF
MM-10 Miniature Subwoofer
https://muzcentre.ru/
Keep these important operating instructions.
Check
meyersound.com
for updates.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MM-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meyer Sound MM-10

Summary of Contents for Meyer Sound MM-10

  • Page 1 OPERATING INSTRUCTIONS MM-10 Miniature Subwoofer https://muzcentre.ru/ Keep these important operating instructions. Check meyersound.com for updates.
  • Page 2 Except as permitted by applicable copyright law, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording or otherwise, without prior written permission from Meyer Sound.

  • Page 3: Important Safety Instructions

    6. Clean only with dry cloth. 12. Use only with the caster rails or rigging specified by 7. Do not block any ventilation openings. Install in accor- Meyer Sound, or sold with the apparatus. Handles are dance with Meyer Sound's installation instructions. for carrying only.
  • Page 4 Wassereinwirkung oder übermäßig hoher Luftfeuchtigkeit ausgesetzt werden könnte, solange es sich WARNING: Class I apparatus shall be connected nicht um ein Produkt handelt, dass mit der Meyer Sound to a mains socket outlet with a protective earthing Weather Protection Option ausgestattet ist. connection.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Ne laissez pas d’eau ou d’objet étranger, quel qu’il soit, • pénétrer à l’intérieur de l’enceinte. Ne posez pas d’objet contenant du liquide sur ou à proximité de l’enceinte. Pour réduire les risques de surchauffe, évitez d’exposer •...
  • Page 6 MM-10 OPERATING INSTRUCTIONS...

  • Page 7: Table Of Contents

    CONTENTS Important Safety Instructions Symbols Used Introduction How to Use This Manual MM-10 Miniature Subwoofer MM-10 Options MM-10XP Subwoofer MM-10XP Input Connector MM-10XP Input Polarity Switch MM-10XP Limit LED MM-10XP Current Draw and Cable Requirements Wiring MM-10XP Loudspeaker Cables with Belden 1502 Cable...
  • Page 8 MM-10 OPERATING INSTRUCTIONS Optional Rain Hoods Installing the Horizontal Rain Hood Installing the Vertical Rain Hood Assembling Loudspeaker Cables Assembling Phoenix-to-Phoenix Loudspeaker Cables Assembling Phoenix-to-EN3 Loudspeaker Cables Assembling EN3-to-EN3 Loudspeaker Cables Specifications MM-10 Specifications (All Models) MM-10 Compliance MM-10 Dimensions viii...

  • Page 9: Introduction

    The MM-10 features an operating frequency range of 33 Hz Updates and supplementary information are available at: to 228 Hz with a linear peak SPL of 118 dB. The MM-10 bass reflex cabinet houses a single 10-inch driver and a meyersound.com/products...

  • Page 10: Mm-10 Options

    MM-10XPs require a Meyer Sound IntelligentDC external MM-10 OPTIONS power supply. The MPS-488HP single-space 19-inch rack Additional options for the MM-10 include the MUB-MM10 unit receives balanced audio from its XLR female inputs and U-bracket for mounting the subwoofer on ceilings and walls;...

  • Page 11: Mm-10Xp Subwoofer

    MM-10XP SUBWOOFER MM-10XP INPUT CONNECTOR The MM-10XP is powered by a Meyer Sound external 48 V DC power supply, eliminating the need for wiring The MM-10XP subwoofer is available with either a Phoenix conduits while still preserving the advantages of self- 5-pin male or SwitchCraft EN3 5-pin male connector for powered loudspeaker systems.

  • Page 12: Mm-10Xp Input Polarity Switch

    Contact Meyer Sound Technical Support. CAUTION: If the Limit LED turns solid red and the MM-10XP continues to output audio, though at reduced levels, the subwoofer’s...

  • Page 13: Mm-10Xp Current Draw And Cable Requirements

    MM-10XP SUBWOOFER Cable Lengths and Cable Gauges for system to achieve the desired SPL without exposing MM-10XPs the subwoofers to excessive levels and possible overheating. When connecting an MM-10XP to an MPS-488HP channel output, you can use cable lengths of up to 150 feet with only 1 dB of peak SPL loss using 18 AWG wire.

  • Page 14: Wiring Mm-10Xp Loudspeaker Cables With Belden 1502 Cable

    WIRING MM-10XP LOUDSPEAKER CABLES NOTE: For a complete list of cables and cable WITH BELDEN 1502 CABLE connectors available from Meyer Sound that can be used with the MM-10XP subwoofer and When wiring MM-10XP loudspeaker cables with Belden MPS-488HP power supply, see “MM-10 1502 or an equivalent cable, use the conventions in Table 3.

  • Page 15: Mm-10Ac Subwoofer

    MM-10AC SUBWOOFER AC Input Connector (Blue) The MM-10AC subwoofer includes an internal power supply and locking AC PowerCON connectors. The MM-10AC The blue AC Input connector supplies power to the receives audio from an XLR female Audio In connector, and MM-10AC.

  • Page 16: Power Connector Wiring

    AC looping cables. Assembled AC looping cables The MM-10AC operates safely and continuously when the are available from Meyer Sound. AC voltage stays within 100–240 V AC at 50 or 60 Hz. The subwoofer allows any combination of voltage to GND...

  • Page 17: Electrical Safety Issues

    MM-10AC SUBWOOFER Ultimate Short-Term Peak Current — A rating for fast- Do not use a ground-lifting adapter or cut the AC cable • • reacting magnetic breakers. ground pin. Inrush Current — The spike of initial current • encountered when powering on. You can use the following table as a guide for selecting cable gauges and circuit breaker ratings for the system’s operating voltage.

  • Page 18: Mm-10Ac Audio Connectors

    MM-10 OPERATING INSTRUCTIONS MM-10AC AUDIO CONNECTORS Audio Loop Out Connector The MM-10AC includes an XLR female Audio In connector The XLR male Audio Loop Out connector allows multiple and XLR male Audio Loop Out connector. MM-10AC subwoofers to be looped from a single audio source.

  • Page 19: Mm-10Ac Input Polarity Switch

    3, resulting in a positive pressure wave and may need to be serviced. Contact Meyer Sound when a positive signal is applied to pin 2. When the switch is Technical Support.
  • Page 20 MM-10 OPERATING INSTRUCTIONS MM-10AC Temperature and Limiting The Limit LED turns solid yellow when its heat sink temperature reaches 65° C (145° F), indicating the unit is reaching its maximum heat dissipation and a reduction in SPL is recommended. While the MM-10AC will continue to...

  • Page 21: Mm-10Acx Subwoofer

    MM-10ACX SUBWOOFER MM-10ACX AC CONNECTORS The MM-10ACX subwoofer includes onboard DC power and audio routing for driving up to two MM-4XPs. Three The MM-10ACX subwoofer combines advanced independent XLR female Audio In connectors are provided loudspeaker technology with equally advanced power for the subwoofer and satellite loudspeakers.

  • Page 22: Power Connector Wiring

    AC looping cables. Assembled AC looping cables cable. The MM-10ACX requires a grounded connec- are available from Meyer Sound. tion. Always use a grounded outlet and plug. It is extremely important that the system be properly...

  • Page 23: Mm-10Acx Current Draw Requirements

    MM-10ACX SUBWOOFER CAUTION: The power source for the You can use the following tables as a guide for selecting MM-10ACX should always operate within the cable gauges and circuit breaker ratings for the system’s required voltage range, at least a few volts from the operating voltage.

  • Page 24: Electrical Safety Issues

    MM-10 OPERATING INSTRUCTIONS ELECTRICAL SAFETY ISSUES MM-10ACX AUDIO IN CONNECTORS Pay close attention to these important electrical and safety The MM-10ACX includes three XLR female Audio In issues. connectors for Satellite 1, Satellite 2, and Subwoofer. The MM-10ACX requires a grounded outlet. Always use •...

  • Page 25: Mm-10Acx Satellite Out Connectors

    MM-10ACX rear panel. A single composite cable (such as accessories available from Meyer Sound, see Belden 1502) wired for both DC power and balanced audio “MM-10 Accessories” on page 35. For can be used to connect to each satellite loudspeaker. information on cable assembly, see “Assembling Loudspeaker Cables”...

  • Page 26: Mm-10Acx Input Select Switch

    MM-10 OPERATING INSTRUCTIONS MM-10ACX INPUT SELECT SWITCH MM-10ACX GAIN KNOB The Input Select switch determines the audio source signal The Gain knob adjust the subwoofer signal from completely for the subwoofer. When the switch is in the down position attenuated to +10 dB and can be used to the balanced the (SUB CH), the source signal is received from the Subwoofer subwoofer output with that of the satellite loudspeakers.

  • Page 27: Mm-10Acx Limit Led

    It has no effect on the solid red after powering up and the audio is Satellite Outs. muted, the subwoofer has encountered a failure and may need to be serviced. Contact Meyer Sound Technical Support. MM-10ACX LIMIT LED CAUTION:...
  • Page 28 MM-10 OPERATING INSTRUCTIONS MM-10ACX Temperature and Limiting The Limit LED turns solid yellow when its heat sink temperature reaches 65° C (145° F), indicating the unit is reaching its maximum heat dissipation and a reduction in SPL is recommended. While the MM-10ACX will continue to...

  • Page 29: Mm-10Acx Satellite Configurations

    MM-10ACX SUBWOOFER MM-10ACX SATELLITE CONFIGURATIONS Single Channel Satellite 1 Out to MM-4XP (Balanced audio, 48 V DC) Balanced audio, single channel, to Audio In Satellite 1 AC power to AC Input MM-10ACX Single-Channel Satellite System (Shown with EN3 Connectors) To configure a single-channel satellite system with one 4.
  • Page 30 MM-10 OPERATING INSTRUCTIONS Dual Channel Satellite 1 Out and Satellite 2 Out to MM-4XPs (Balanced audio, 48 V DC) Balanced audio, dual channels, to Satellite 1 Audio In and Satellite 2 Audio In AC power to AC Input MM-10ACX Dual-Channel Satellite System (Shown with EN3 Connectors) To configure a dual-channel satellite system with one 4.
  • Page 31 MM-10ACX SUBWOOFER Dual Channel + Sub Channel (2.1) Satellite 1 Out and Satellite 2 Out to MM-4XPs (Balanced audio, 48 V DC) Balanced audio, dual channels, to Satellite 1 Audio In and Satellite 2 Audio In Balanced audio, single channel, to Subwoofer Audio In AC power...
  • Page 32 MM-10 OPERATING INSTRUCTIONS...

  • Page 33: Mounting The

    The U-bracket’s adjustment ceilings and walls at adjustable angles. slot lets you adjust how close the MM-10 is located to the mounting surface and at what angle the subwoofer will be positioned. The MUB-MM10 is available in two kits with IMPORTANT SAFETY CONSIDERATIONS either 3/8-inch-16 hardware (PN 40.199.060.01) or M10...
  • Page 34 MM-10 OPERATING INSTRUCTIONS Wall-Mounting with the MUB-MM10 The MUB-MM10 U-bracket lets you mount the MM-10 either vertically or horizontally on a wall. MUB-MM10, Horizontal Wall Mount...

  • Page 35: Mm-10 Accessories

    Only recommended for use with weather-pro- 40.174.015.02 Vertical rain hood kit tected MM-10s. PHOENIX AND EN3 CABLE CONNECTORS AND ADAPTERS The following Phoenix and EN3 cable connectors and adapters are available from Meyer Sound. Phoenix and EN3 Cable Connectors and Adapters Part Number Connector/Adapter 484.053...

  • Page 36: Phoenix And En3 Loudspeaker Cables

    MM-10 OPERATING INSTRUCTIONS PHOENIX AND EN3 LOUDSPEAKER CABLES The following Phoenix and EN3 cables are available from Meyer Sound and can be used to connect MM-10XPs to MPS-488HPs and MPS-482HPs, as well as to connect MM-10ACXs to satellite loudspeakers. NOTE: Phoenix and EN3 loudspeaker cables and bulk cable use Belden 1502R (regular) or Belden 1502P (plenum) cable.

  • Page 37: Optional Rain Hoods

    5.13 in [130 mm] INSTALLING THE VERTICAL RAIN HOOD To install the MM-10 vertical rain hood: 1. Orient the MM-10 vertically with its user panel at the top. 4.22 in 2. Attach any required cables to the subwoofer. [107 mm] 6.25 in...
  • Page 38 MM-10 OPERATING INSTRUCTIONS 4. Attach the rain hood by slipping it under the flange on the right side of the subwoofer, placing it flush against the user panel. Align the rain hood’s holes with those in the panel. 5. Secure the rain hood to the user panel by inserting the lock pins in the two left holes.

  • Page 39: Assembling Loudspeaker Cables

    ASSEMBLING LOUDSPEAKER CABLES CAUTION: When wiring loudspeaker cables, it is extremely important that each pin be wired correctly. Make sure that the 48 V DC from the external power supply is wired directly (and only) to the 48 V DC pins on the loudspeaker connector, and that the polarity is observed (negative to negative, positive to positive) to avoid damage to the loudspeaker.

  • Page 40: Assembling Phoenix-To-En3 Loudspeaker Cables

    MM-10 OPERATING INSTRUCTIONS 4. Repeat the previous steps and attach the other end of the cable to another Phoenix 5-pin female cable mount connector. 5. Verify the wiring polarity is correct for both cable ends. ASSEMBLING PHOENIX-TO-EN3 LOUDSPEAKER CABLES When connecting loudspeakers equipped with EN3 connectors to power supplies equipped with Phoenix connectors, a Phoenix 5-pin female to EN3 5-pin female cable is required.
  • Page 41 ASSEMBLING LOUDSPEAKER CABLES 4. If the other (EN3) end of the cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and white wires 0.275 inch. 5. Disassemble the EN3 5-pin female connector and feed the stripped cable through the boot, cable clamp housing, and coupling ring.

  • Page 42: Assembling En3-To-En3 Loudspeaker Cables

    NOTE: Cable mount connectors cannot connect to other cable mount connectors. Cable mount connectors can only connect to panel mount connectors (like those on the MM-10 and MPS-488 ) or inline connectors. To extend cables with EN3 connectors on both ends you can use an EN3 5-pin female-to-male cable coupler.
  • Page 43 ASSEMBLING LOUDSPEAKER CABLES 2. If the cable has not yet been stripped, strip one end of the cable. Strip the outer shielding by 1 inch and then strip the black, red, blue, and white wires by 0.275 inch. 1 inch 0.275 inch 3.
  • Page 44 MM-10 OPERATING INSTRUCTIONS 5. Repeat the previous steps to attach the EN3 5-pin female connector to the other end of the cable. Dimple identifies Pin #1 Pin #5, White, Pin #5, White, Pin #1, Black, audio (+) audio (+) 48 V DC (–)

  • Page 45: Specifications

    M-noise at the onset of limiting, 2-hour duration, and 50-degree C ambient temperature is <2 dB. M-noise is a full bandwidth, (10 Hz–22.5 kHz) test signal developed by Meyer Sound to better measure the loudspeaker’s music performance. It has a constant instantaneous peak level in octave bands, a crest factor that increases with frequency, and a full bandwidth Peak to RMS ratio of 18 dB.
  • Page 46 Reverses audio input polarity between pins 4 and 5 Displays loudspeaker status MM-10XP DC POWER Safety Agency Rated 48 V DC (Meyer Sound Intelligent DC Power Supply required (see meyersound.com/product/mps) Operating Range Note: Tolerates voltage drops up to 30% with long cable runs. MM-10XP CURRENT DRAW Idle Current 0.16 A rms...
  • Page 47 SPECIFICATIONS MM-10AC Specifications MM-10AC Specifications MM-10AC REAR PANEL Audio Connectors 3-pin XLR female input with XLR male loop output Pin 1: Chassis/earth through 220 k, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies Pin 2: Signal + Pin 3: Signal –...

  • Page 48: Mm-10 Compliance

    MM-10 OPERATING INSTRUCTIONS MM-10ACX Specifications Satellite Loudspeaker Connectors Two XLR female inputs Two Phoenix 5-pin male or EN3 5-pin female outputs (two pins for DC power, there pins for balanced audio) Note: Satellite loudspeaker connectors only included on the MM-10ACX model.

  • Page 49: Mm-10 Dimensions

    SPECIFICATIONS MM-10 DIMENSIONS 6.50 in 19.00 in [165 mm] [483 mm] 5.00 in [127 mm] 11.00 in [279 mm] 12.00 in [305 mm] MM-10 Dimensions...
  • Page 50 MM-10 OPERATING INSTRUCTIONS...
  • Page 52 Meyer Sound Laboratories, Incorporated. 2832 San Pablo Avenue Berkeley, CA 94702 © 2010–2021 Meyer Sound Laboratories, Incorporated. All rights reserved meyersound.com MM-10 Operating Instructions PN 05.199.005.01 C T: +1 510 486.1166...

This manual is also suitable for:

Mm-10xpMm-10acMm-10acx
