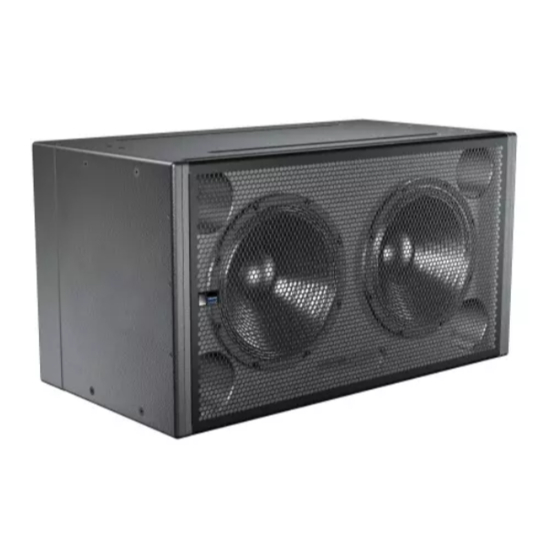

Concert series compact high-power subwoofer
Hide thumbs Also See for 600-HP:
Table of Contents

Advertisement

Quick Links

OPERATING INSTRUCTIONS
CONCERT SERIES
600-HP Compact High-Power Subwoofer
Keep these important operating instructions.
Check www.meyersound.com for updates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600-HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meyer Sound 600-HP

Summary of Contents for Meyer Sound 600-HP

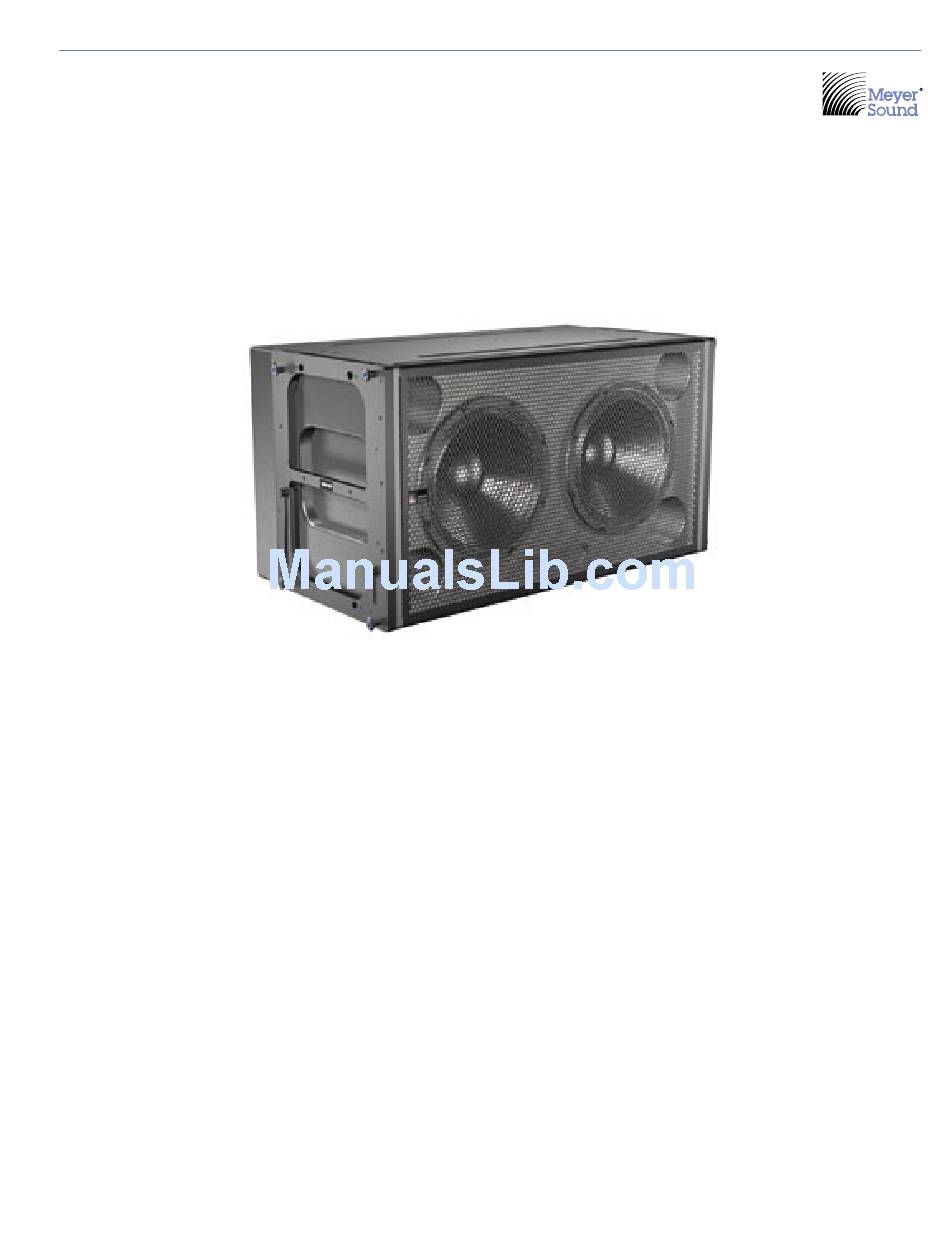

  • Page 1 OPERATING INSTRUCTIONS CONCERT SERIES 600-HP Compact High-Power Subwoofer Keep these important operating instructions. Check www.meyersound.com for updates.
  • Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.

  • Page 3: Important Safety Instructions

    2. Keep these instructions. 12. Use only with the caster rails or rigging specified by 3. Heed all warnings. Meyer Sound, or sold with the loudspeaker. Handles 4. Follow all instructions. are for carrying only. 5. Do not use this loudspeaker near water.

  • Page 4: Safety Summary

    Vuelva a conectar la alimentacion without using weather protection par du personnel qualifié et agréé de voltaje una vez efectuadas equipment from Meyer Sound. par le constructeur. todas las interconexiones de Do not allow water or any señalizacion de audio.

  • Page 5: Table Of Contents

    CONTENTS INTRODUCTION How to Use this Manual CHAPTER 1: Introducing the 600-HP Compact High-Power Subwoofer High Power and High Performance Versatile Configuring and Rigging Features & Benefits Applications CHAPTER 2: Power Requirements AC Power Voltage Requirements AC Power Distribution Current Requirements...
  • Page 6 CHAPTER 7: QuickFly Rigging and Ground-stacking ® Flying the 600-HP Subwoofer GuideALink™ Rigging Frame 600-HP to 600-HP Flown Ground-stacked 600-HP to MICA Flown Ground-stacked The MG-MICA Multipurpose Grid Flown Configuration Ground-Stacked Configuration The Optional MDTL-MICA Downtilt Link MCF-MICA Caster Frame MDB-600 Dolly Board APPENDIX A: Amplifier Replacement and Optional Rain Hood...

  • Page 7: Introduction

    Chapter 3: Amplification and Audio will help you under- stand and harness the power of the 600-HP amplifier and offers a helpful tip relevant to the topic audio systems. Amplifier specifications, connectivity, limit- at hand.
  • Page 8 INTRODUCTION...

  • Page 9: Chapter 1: Introducing The 600-Hp Compact High-Power Subwoofer

    fitted with the optional QuickFly MRF-600 rigging frame. damage to the enclosure. The versatility of the 600-HP also allows it to be used with a variety of other Meyer Sound self-powered loudspeakers The three available side-panel options are: —...

  • Page 10: Features & Benefits

    CHAPTER 1 Figure 1.3. Flown array with MICA loudspeakers and 600-HP subwoofers Figure 1.5. In transport on MCF-MICA caster frame FEATURES & BENEFITS ■ Efficient, high-power, high-excursion cone drivers ■ Extremely low distortion for low-frequency clarity ■ Very high peak power yields excellent transient reproduction ■...

  • Page 11: Chapter 2: Power Requirements

    600-HP subwoofer. from Line to Ground in the above example). AC POWER The 600-HP subwoofer uses a NEMA L6-20P, an IEC 309 male power connector, a PowerCon connector, or a multi- When AC power is applied to the 600-HP subwoofer, the pin VEAM connector and complies with worldwide product Intelligent AC™...

  • Page 12: Current Requirements

    Make sure that even with the AC voltage drop the AC voltage always stays in the operating windows. If the 600-HP subwoofer shuts down due to either low or high voltage, its power supply automatically turns on again after three seconds if the voltage has returned to either nor- mal operating range.

  • Page 13: Power Connector Wiring Conventions

    (green/yellow) POWER CONNECTOR WIRING CONVENTIONS Figure 2.4. IEC 309 power connector pin-out The 600-HP subwoofer requires a grounded outlet. It is very important that the system be properly grounded in order to line (brown) operate safely and properly. Figures 2.2, 2.3, 2.4, and 2.5 illustrate correct wiring for the creation of power cables and distribution systems.

  • Page 14: Electrical Safety Issues

    Pay close attention to these important electrical and safety issues. CAUTION: Do not use a power cord adapter to drive the 600-HP subwoofer from a standard three-prong Edison outlet since that connector is rated for only 15 amps (NEMA 5-15R; 125 V AC max.).

  • Page 15: Chapter 3: Amplification And Audio

    Make sure that pin 1 (shield) is in any system design. This chapter will help you under- always connected on both ends of the cable. Telescoping stand and harness the power of the 600-HP amplifier and grounding schemes are not recommended. audio systems.

  • Page 16: 600-Hp Interconnections

    600-HP cabinets are stacked in an array. and AC power for the source of the problem. A ring fitting is provided on the rear of the 600-HP loudspeaker to act as a strain relief for cabling. Using this Meyer Sound LD-1A, LD-2, and LD-3 line drivers and...

  • Page 17: 600-Hp Amplifier Cooling System

    The primary fan draws air in The 600-HP’s left and right 15-inch cone drivers are pow- through ducts on the front of the cabinet, over the heatsink, ered by separate amplifier channels, each with a power and out the rear of the cabinet.
  • Page 18 600-HP shuts down again after cooling and re- applying AC power, contact Meyer Sound for repair information. Despite the 600-HP’s filtering, extensive use or a dusty op- erating environment can allow dust to accumulate along the path of the airflow, preventing normal cooling. To prevent this, you should periodically remove the grille frame, air-in- take foam and amplifier module and use compressed air to...

  • Page 19: Chapter 4: Rms Remote Monitoring System (Optional)

    Pressing the “service” button on the 600-HP loudspeaker’s powered loudspeakers with a Windows-based PC at the RMS module will help quickly identify the 600-HP in the sound mix position or other desired location. Optional RMS RMS software window; an icon corresponding to its Node software delivers extensive status and system performance Name will appear on screen.

  • Page 20: Service Button

    Figure 4.4. The RMS application’s user interface the 600-HP itself — unless MUTE or SOLO is enabled on the RMS module and from the If the installation pattern changes completely, a new screen RMS software.

  • Page 21: Chapter 5: System Integration

    flown array of mid-high loudspeakers can create a smoother full-range frequency image The ideal ratio of 600-HP subwoofers with respect to other because the subwoofers are not separated by the loudspeakers in the system depends on: distance from the flown array to the floor.

  • Page 22: 600-P Used With Concert And Ultraseries Loudspeakers

    CHAPTER 5 The 600-HP subwoofers should be placed as close as pos- sible to the other loudspeakers so that the relative distanc- es between them are the same at all listening positions. NOTE: When 600-HP subwoofers are used with Concert Series or UltraSeries loud- speakers in their full-range configuration (e.g.,...

  • Page 23: Adding An Ld-3 Compensating Line Driver

    Using the LD-3’s filters helps to easily integrate and opti- mize a MICA or other M Series array with the 600-HP sub- Digital Signal Processors woofers. The use of high-pass filters (HPF) augments aray headroom by removing lower frequencies near the array Full-range signals may be applied to Meyer Sound’s self-...
  • Page 24 DSP and delay systems, and compensation for acoustical condi- tions all come into play, measurement and correc- tion tools are a must. Meyer Sound’s SIM 3 audio analyzer system and Galileo 616 (or a combination of LD-1A/LD-2/LD-3 line drivers, CP-10 parametric equalizers, VX-1 program equalizers, and signal delays) are highly recommended.

  • Page 25: Chapter 6: System Design And Integration Tools

    CHAPTER 6 CHAPTER 6: SYSTEM DESIGN AND INTEGRATION TOOLS Meyer Sound offers two comprehensive tools to assist you NOTE: To use MAPP Online Pro, you will with the acoustical and functional requirements of system need to register by clicking the “Apply for design and optimization.

  • Page 26: Sim ® Measurement System

    SIM 3 Delay Finder function MAPP Online Pro client software is upgraded continually in Applications order to add new Meyer Sound products to the database and enhance user features. Most upgrades are downloaded The main application of the SIM 3 audio analyzer is automatically when logging on to a MAPP Online Pro loudspeaker system testing and alignment.

  • Page 27: Chapter 7: Quickfly Rigging And Ground-Stacking

    QuickFly rigging system with rugged, reliable and simple components. QuickFly facilitates deploying the loudspeak- ers in a variety of applications. The 600-HP is designed to be rigged using professional components, and its custom front and rear GuideALinks™ rigidly couple the individual Figure 7.1.

  • Page 28: 600-Hp To 600-Hp

    MICA enclosures lower in the array. Figure 7.4. 600-HP at 0 degrees (left) and at -3 degrees Figure 7.3. Front GuideALInks set at 0° and +3° NOTE: Not all mechanically possible com-...

  • Page 29: Ground-Stacked

    Front Angle for MICA MICA grid, while introducing the desired angle to the MICA 0° array using the GuideALinks on the lowest 600-HP enclo- 0.5° uptilt sure — without needing to adjust the angle of the remaining 1° uptilt 600-HPs or the MG-MICA grid.

  • Page 30: The Mg-Mica Multipurpose Grid

    600-HP subwoofers equipped with the optional MRF-600 rigging frame can be linked directly to the MG-MICA grid to form flown and ground-stacked arrays. Figure 7.8. Using the MG-MICA to fly a 600-HP array CAUTION: The weight of the 600-HP fitted with rigging is 215 lbs (97.52 kg).

  • Page 31: Ground-Stacked Configuration

    05.147.034.01) MCF-MICA CASTER FRAME The heavy-duty MCF-MICA caster frame (Figure 7.11) al- lows you to transport stacks of up to three 600-HP sub- woofers fitted with MRF-600 rigging frames. The 600-HP’s GuideALinks are fully compatible with the optional MCF- MICA caster frame and connect the enclosures securely, allowing the convenient transport of straight stacks of subwoofers.
  • Page 32 600-HPs. Figure 7.13. The 600-HP stack should only be moved sideways when being transported on the MCF-MICA caster frame In order to transport stacks of 600-HP subwoofers as safely as possible, the MCF-MICA has two positions —...

  • Page 33: Mdb-600 Dolly Board

    HP subwoofers. Figure 7.16. MDB-600 dolly board CAUTION: Do not exceed three 600-HP subwoofers high on a block to avoid tipping over the stack. Figure 7.16. The MG-MICA grid can be installed on top of a 600-HP ground-stack for transport...
  • Page 34 Other rigging accessories as well as a range of rugged protective transport covers are also available. For more information, please visit www.meyersound.com. Figure 7.17. Three 600-HP on the MDB-600 with strap NOTE: For safety reasons and to avoid any damage to the enclosures, use straps (as shown in Figure 7.17) when transporting a stack, es-...

  • Page 35: Appendix A: Amplifier Replacement And Optional Rain Hood

    3. Press in and twist the remaining four clips on the sides and top of the rain hood. Replacing the HP-2/600 Amplifier To replace the amplifier, do the following: 1. Gently slide the amplifier partially back into 600-HP and connect the loudspeaker connector. TIP: Avoid pinching wires behind the fans;...
  • Page 36 APPENDIX A...

  • Page 37: Appendix B: 600-Hp Specifications

    APPENDIX B APPENDIX B: 600-HP SPECIFICATIONS ACOUSTICAL Operating frequency range 36 Hz - 150 Hz Note: Recommended maximum operating frequency range. Response depends upon loading conditions and room acoustics. Frequency response 39 Hz - 130 Hz ±4 dB Note: Free field, measured with 1/3 octave frequency resolution at 4 meters.
  • Page 38 APPENDIX B AC POWER AC power connector 250 V NEMA L6-20 (twist lock), IEC 309 male inlet, PowerCon, or VEAM Voltage selection Automatic, two ranges, each with high-low voltage tap � Safety agency rated 95 V AC - 125 V AC; 208 V AC - 235 V AC; 50/60 Hz operating voltage Turn on/turn off points 85 V AC - 134 V AC;...
  • Page 40 Meyer Sound Laboratories Inc. 2832 San Pablo Avenue Berkeley, CA 94702 www.meyersound.com © 2006 Meyer Sound Laboratories Inc. T: +1 510 486.1166 F: +1 510 486.8356 05.149.005.01 A...
