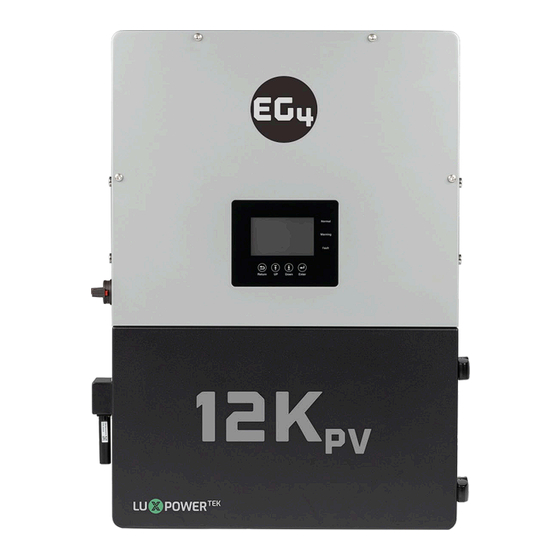

E G 4 ® 1 2 k P V H Y B R I D I N V E R T E R
C O N N E C T I O N S & P A R A L L E L I N G G U I D E
This document contains information to guide the end-user through the connections and
overview for both inverter and battery paralleling.
©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED.
VERSION 1.2.2 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
MODEL #: IV-8000-HYB-AW / IV-8000-HYB-AW-00
