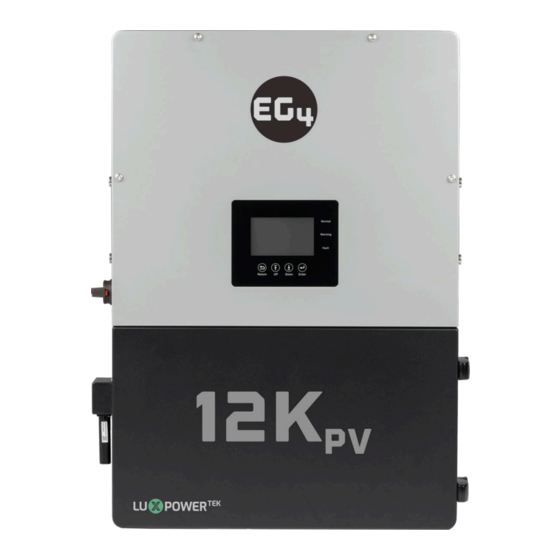

EG4 IV-8000-HYB-AW Connections
12 kpv hybrid inverter
Hide thumbs
Also See for IV-8000-HYB-AW:
- Quick start manual (44 pages) ,
- Connection manual (23 pages) ,
- Connections (20 pages)
Advertisement

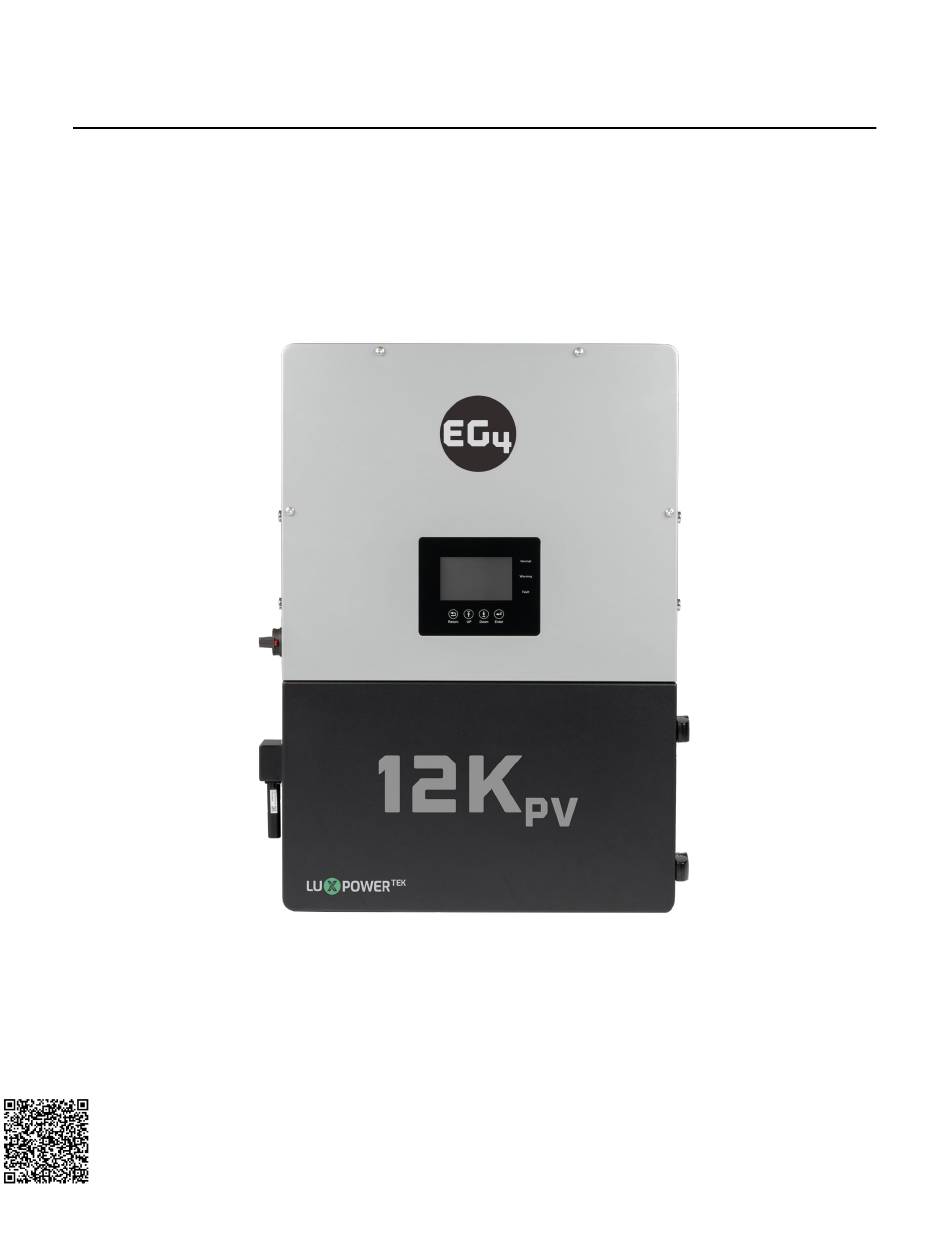

E G 4 ® 1 2 k P V H Y B R I D I N V E R T E R
F I R M W A R E C H A N G E L O G & U P D A T E
This document's purpose is to both educate the end-user on the firmware update process for
the 12kPV hybrid inverter and to provide a changelog for the latest firmware versions.
©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED.
VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
MODEL #: IV-8000-HYB-AW / IV-8000-HYB-AW-00
G U I D E
Advertisement
Table of Contents
Related Manuals for EG4 IV-8000-HYB-AW
Summary of Contents for EG4 IV-8000-HYB-AW
- Page 1 This document’s purpose is to both educate the end-user on the firmware update process for the 12kPV hybrid inverter and to provide a changelog for the latest firmware versions. ©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED. VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS ..........................1 SAFETY ..................................3 SAFETY INSTRUCTIONS ..........................3 IMPORTANT SAFETY NOTIFICATIONS ...................... 3 FIRMWARE UPDATES ............................... 5 FIRMWARE UPDATE VIA EG4 ELECTRONICS APP.................. 5 FIRMWARE UPDATE VIA MONITOR CENTER (WEBSITE) ..............6... -
Page 3: Technical Specifications
1. TECHNICAL SPECIFICATIONS AC INPUT DATA 120/240VAC; 120/208VAC (L1/L2/N required) NOMINAL AC VOLTAGE 50/60Hz FREQUENCY 12000W MAX. AC INPUT POWER >5000W MIN. GENERATOR SIZE 80A | 80A MAX. GEN | GRID PASSTHROUGH CURRENT AC GRID OUTPUT DATA 33.3A@240VAC | 38.5A @208VAC MAX. - Page 4 Surge Protection Device, integrated PV disconnect STANDARDS AND CERTIFICATIONS UL1741 SB CSA C22.2#107.1:2016 CSA C22.2#330:2017 ED 1 HECO SRD-IEEE-1547.1:2020 ED 2 RAPID SHUT DOWN (RSD) NEC 2020:690.12 FCC PART 15, CLASS B (PENDING) *See EG4 Warranty Registration for terms and conditions...
-
Page 5: Safety
2. SAFETY SAFETY INSTRUCTIONS International safety regulations have been strictly observed in the design and testing of the inverter. Before beginning any work, carefully read all safety instructions, and always observe them when working on or with the inverter. The installation must follow all applicable national or local standards and regulations. - Page 6 During operation, only the LCD and buttons should be touched. DISCLAIMER EG4 reserves the right to make changes to the material herein at any time without notice. Please refer to www.eg4electronics.com...
-
Page 7: Firmware Updates
(see the Connections & Paralleling Guide for Wi-Fi Dongle connection steps) for the inverter before performing the following steps. Step 1: Open the EG4 Electronics app on the mobile phone and select the “DOWNLOAD FIRMWARE” button. Step 2: Choose the correct firmware file (contact the distributor for most up to date files) and select “DOWNLOAD”... -
Page 8: Firmware Update Via Monitor Center (Website)
3.2 FIRMWARE UPDATE VIA MONITOR CENTER (WEBSITE) Step 1: Distributors and installers can update the firmware for their inverters by using the EG4 Electronics website monitoring system. Please contact EG4 to confirm the correct files. Step 2: Log into the EG4 Electronics Monitor System. Select “Maintenance,” and then select “Remote Update.”... - Page 9 C H A N G E L O G Version 1.0 • First version completed...
- Page 10 CONTACT US support@eg4electronics.com (903) 609-1988 www.eg4electronics.com...
