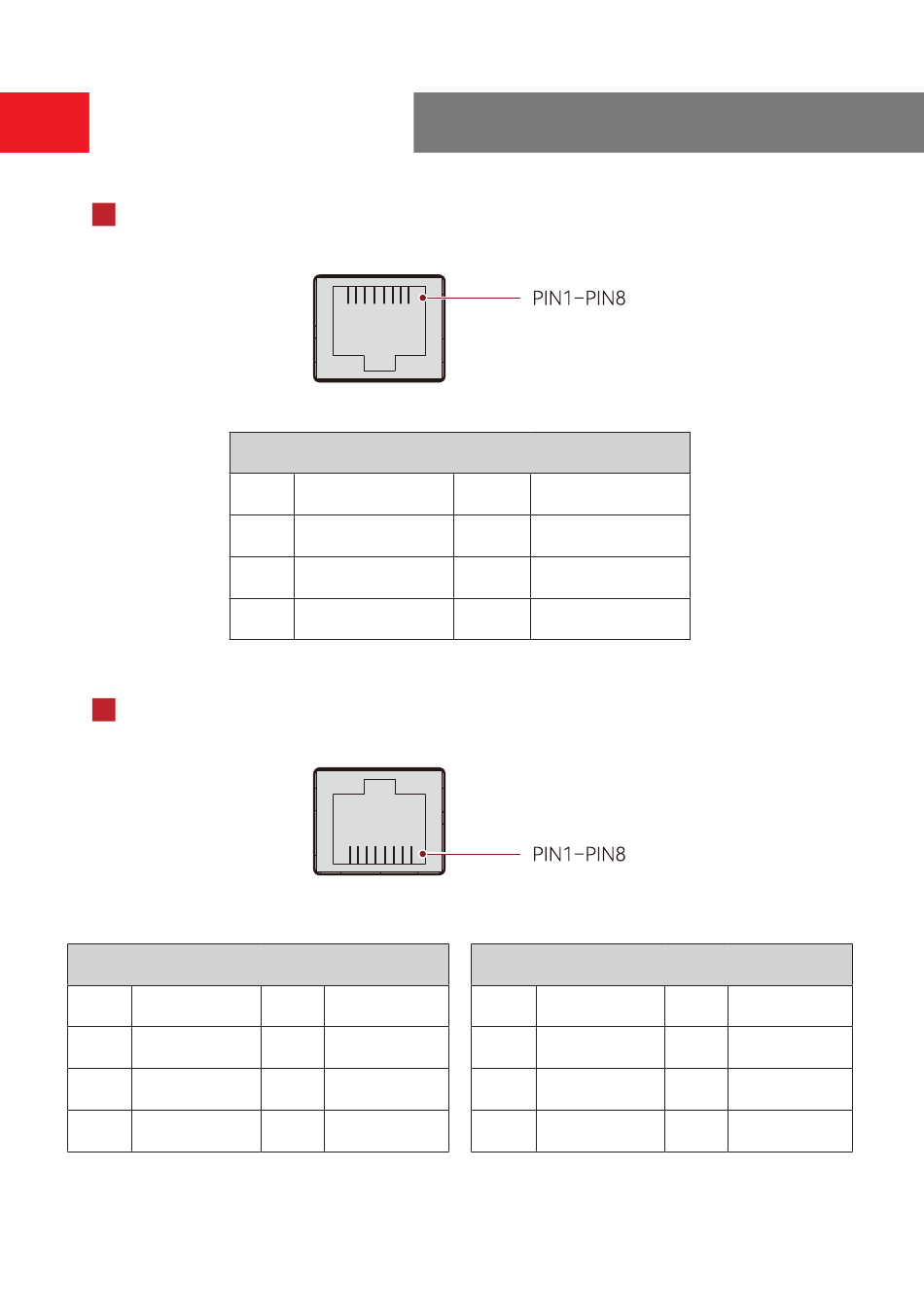

Pinout Introduction
RJ45 1/2 Pinout
PIN1
PIN2
PIN3
PIN4
RJ45 3 Pinout
Standard Pinout
PIN1
GND
PIN2
GND
PIN3
AUDIO IN+
PIN4
AUDIO OUT+
RJ45
Standard Pinout
Transceive Data+
Transceive Data-
Receive Data+
Not connected
4 WIRE
PIN5
AUDIO OUT-
PIN6
AUDIO IN-
PIN7
GND
PIN8
GND
PIN5
Not connected
PIN6
Receive Data-
PIN7
Not connected
PIN8
Not connected
Crossover Pinout
PIN1
GND
PIN2
GND
PIN3
AUDIO OUT+
PIN4
AUDIO IN+
5
PIN5
AUDIO IN-
PIN6
AUDIO OUT-
PIN7
GND
PIN8
GND
