Orei UHD-44MVW User Manual

4x4 seamless hdmi matrix video wall w/ multiview function
Hide thumbs
Table of Contents

Advertisement

Quick Links

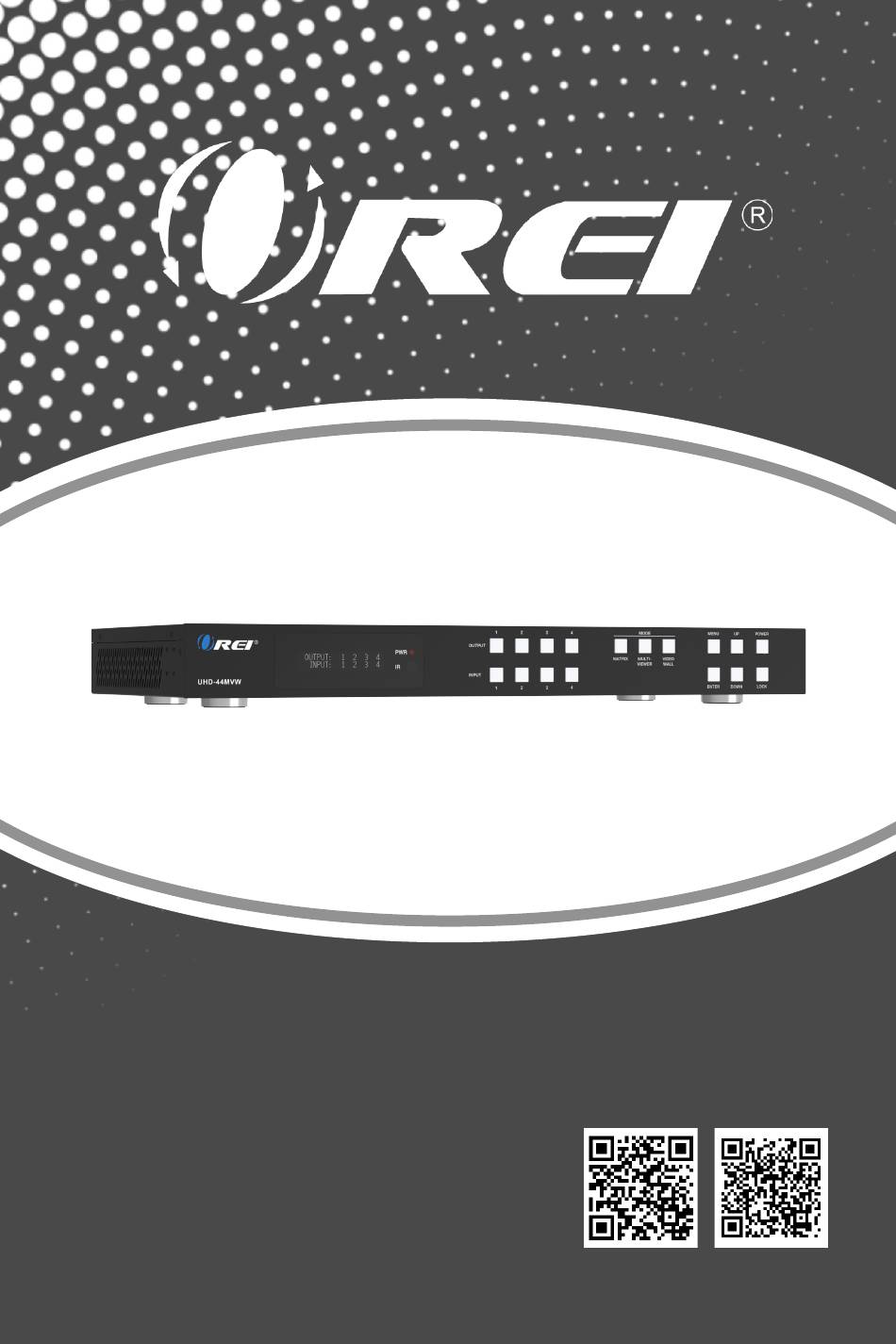

UHD-44MVW
4x4 Seamless HDMI Matrix
Video Wall w/ Multiview
Follow us on Youtube and
Facebook
Function
U S E R M A N U A L
www.orei.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHD-44MVW and is the answer not in the manual?

Questions and answers

Related Manuals for Orei UHD-44MVW

Summary of Contents for Orei UHD-44MVW

  • Page 1 UHD-44MVW 4x4 Seamless HDMI Matrix Video Wall w/ Multiview Follow us on Youtube and Facebook Function U S E R M A N U A L www.orei.com Page 1...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote IR Pin Definition IR Control System Video Wall Multi-Viewer EDID Management Web GUI User Guide RS-232 Control Command Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product.

  • Page 3: Registration Page

    OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.

  • Page 4: Introduction

    Introduction The UHD-44MVW is a powerful matrix device that can take 4 inputs to 4 out- puts and allows you to switch between them with ease. It supports resolu- tions up to 4K@60Hz with 18Gbps video bandwidth. The device features both Video Wall and Multiviewer functionality making it useful in a wide range of applications.

  • Page 5: Features

    7. Control via front panel, included remote, RS-232, and WebGUI 8. HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Package Contents UHD-44MVW 1pcs 12V/2.5A Locking Power Adapter 1pcs 12V IR Wideband Receiver Cable (1.5m) 5pcs IR Blaster Cable (1.5m)

  • Page 6: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080P@50/60Hz, 2K@24/30/60Hz, 4K@24/30/60Hz IR Level 12Vp-p IR Frequency Wideband 20K-60KHz Color Depth 8/10/12bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 HDMI Audio For- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- mats 96/24, DTS High Res, DTS-HD Master Audio...
  • Page 7 Specifications Mechanical Housing Metal Enclosure Color Black Dimensions 440mm [L] × 203mm [W] × 44.5mm [H] Weight 2.55kg / 5.62lbs Input: AC 100-240V 50/60Hz, Power Supply Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) Power Consumption 25W (Max) Operating 32 - 104°F / 0 - 40°C Temperature Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity...

  • Page 8: Operation Controls And Functions

    Operation Controls and Functions Front Panel MODE MENU POWER OUTPUT MATRIX MULTI- VIDEO VIEWER WALL INPUT ENTER DOWN LOCK Name Function Description Displays the Matrix switching status, input/output routing, LCD screen EDID, Baud rate, IP address, etc. The LED will light up green indicating stable power and POWER LED light up red when on standby.

  • Page 9: Audio Input

    Operation Controls and Functions Rear Panel AUDIO OUT 1 AUDIO OUT 2 AUDIO OUT 3 AUDIO OUT 4 OPTICAL AUDIO OPTICAL AUDIO OPTICAL AUDIO OPTICAL AUDIO TCP/IP RS-232 AUDIO INPUT HD 1 HD 2 HD 3 HD 4 HD 1 HD 2 HD 3 HD 4...

  • Page 10: Hdmi Output

    Operation Controls and Functions Name Function Description HDMI OUTPUT Connect a display device such as a TV, monitor, etc. ports (1~4) DC 12V Power input port. Connected to the included power adapter. Connect the housing to the ground. Note: 1. You can restore the device to factory settings via the front panel, Web GUI, or RS-232 commands.

  • Page 11: Video Mode

    IR Remote Power on the Matrix or set it to standby mode. INFO: Press to check the serial baud rate and IP address. It will be displayed in the top right corner of the screen, and disappear in five seconds. INPUT 1/2/3/4: Press these buttons to select input sources.
  • Page 12 IR Remote You can select the inputs and outputs by using the IR remote. There are two ways to receive the IR remote signal. The first way: The IR window accepts the IR remote signal. Using the IR re- mote, the furthest distance is 8 meters when the IR remote is directly facing to the matrix, and 5 meters when the using angle is ±...

  • Page 13: Ir Pin Definition

    IR Pin Definition & IR Control System IR Pin Definition IR Blaster Grounding Blaster Signal IR BLASTER IR Receiver Receiver Signal Grounding Power IR RECEIVER IR Control System This product supports one-way IR control. When the matrix is connected to IR receiver cable and IR blaster cable, you can control the corresponding input source devices through IR signal transmission remotely at the side of display devices.

  • Page 14: Video Wall

    Video Wall & Multi-Viewer Video Wall The matrix supports 10 categories of display modes as below. User can select display modes via front panel buttons, Web GUI, and RS-232 commands. 2x1-2 1x2-2 Group 1 Group 2 Group 3 Group 4 Matrix Multi-Viewer The matrix supports multiple display modes:...

  • Page 15: Edid Management

    EDID Management This Matrix has 12 factory defined EDID settings, 2 user-defined EDID modes and 4 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-panel button operation: On the initial LCD display screen, press “MENU”...
  • Page 16 EDID Management Web GUI Operation: Please check the EDID management in the “Input page” of “Web GUI User Guide”. The defined EDID setting list of the product is shown as below: EDID Mode EDID Description EDID Mode EDID Description 4K60, 2.0CH WUXGA, 2.0CH 4K60, 5.1CH 768P, 2.0CH...

  • Page 17: Web Gui User Guide

    Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP ad- dress in two ways: The first way: You can get the IP address via the included remote.
  • Page 18 Web GUI User Guide Select the Language from the drop-down list to choose English or Simple Chi- nese. Select the Username from the drop-down list and enter the password. The default passwords are: Username User Admin Password user admin After entering the password, click the “LOGIN” button and the following Status page will appear.
  • Page 19 Web GUI User Guide ■ Input Page You can do the following operations on the Input page: ① Inputs: Displays the Input channel of the device. ② Active: It indicates whether the channel is connected to a media source. It is green if connected, and gray if not connected. ③...
  • Page 20 Web GUI User Guide ④ EDID: You can set the current channel’s EDID. Check the drop-down list to select other EDIDs. ⑤ Load EDID to user memory: Set EDID for the User. Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file, then you can check the name of the selected file.
  • Page 21 Web GUI User Guide ⑥ Download EDID to your computer: If you want to download the existing EDID, click the drop-down box of “Select EDID File” to select the input channel you want, and then click “Download” to save the corresponding EDID file to your computer. ■...
  • Page 22 Web GUI User Guide ④ Output Resolution: Set the video resolution for current output. Click the dropdown menu and set the resolution you need. There are 16 options to select from. If you select AUTO, it will output the proper video resolution according to the EDID of the display device.
  • Page 23 Web GUI User Guide ⑥ HDCP: Set the HDCP version that the current output port supports. There are four options to be selected: • 1.4: HDCP 1.4 compliant. • 2.2: HDCP 2.2 compliant. • Follow Sink: HDCP version follows the corresponding display device. •...
  • Page 24 Web GUI User Guide ① Input Control: Select the input source on the left, and then click on the icons to power on, power off, return, switch, pause, fast-forward, rewind, mute, unmute, etc. ② Output Control: Select the output on the left, and then click on the icons to control the operation of the display, such as power on/off, volume +/-, etc.
  • Page 25 Web GUI User Guide ① Matrix: Click to select Matrix mode. In matrix mode, you can select an output (1~4) first, and then select an input source (1~4) which will appear on the selected output area. One route of vid- eo output configuration is completed.
  • Page 26 Web GUI User Guide In video wall mode, you can select a window (1~4) first, and then select an input source (1~4) which will appear on the selected output area. Click +/- to adjust the corresponding Horizontal/Vertical Bezel (0-10). Set the output res- olution for current output by clicking the drop-down list.
  • Page 27 Web GUI User Guide If a user-defined mode is selected, you can do the following operations: • The four windows are all displayed by default. • Each window can be dragged and zoomed at will. • Drag and drop the input source to any window. •...
  • Page 28 Web GUI User Guide You can select any input audio source from an HDMI input internal audio or embedded audio. For example, if "HDMI 1 Original" is selected, the audio source is from the internal audio of HDMI Input 1; if "Embed 1" is selected, the audio source is from the Embed 1 audio.
  • Page 29 Web GUI User Guide Bind to Output: The AUDIO OUT (1~4) follows the HDMI OUTPUT (1~4). For example, if HDMI INPUT 2 is assigned to HDMI OUTPUT 1, the audio of AUDIO OUT 1 is from HDMI INPUT 2; if HDMI INPUT 3 is assigned to HDMI OUTPUT 1, the audio of AUDIO OUT 1 is from HDMI INPUT 3.
  • Page 30 Web GUI User Guide You can do the following operations on the Network page: ① Modify Network Setting: Modify the IP Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, and then it will come into effect. If the Mode is “Static”, you can set manually the IP Address/Gateway/Subnet/ Telnet Port as required.
  • Page 31 Web GUI User Guide Note: Input rules for changing passwords: (1) The password can’t be empty. (2) New Password can’t be the same as Old Password. (3) New Password and Confirm Password must be the same. ③ Set the Default Network: Click “Set Network Defaults”, there will be a prompt, as shown in the following figure: Click “OK”...
  • Page 32 Web GUI User Guide You can do the following operations on the System page: ① Panel Lock: Click “ON/OFF” to lock/unlock panel buttons. “ON” indicates that panel buttons are unavailable; “OFF” indicates panel buttons are available. ② Beep: Turn on/off the beep. ③...

  • Page 33: Rs-232 Control Command

    RS-232 Control Command The product also supports RS-232 control. You will need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 34 RS-232 Control Command Command Code Function Description Example Feedback Default System Setting r power! Get current power state r power! power on /power off Enable/disable buzzer beep on s beep z! function, z=0~1 (z=0 beep off, s beep 1! beep off beep off z=1 beep on) r beep!
  • Page 35 RS-232 Control Command Command Code Function Description Example Feedback Default Output Setting Set output display mode (x=0~2) s display s display mode x! x=0 matrix mode display mode: matrix matrix mode 0! x=1 video wall mode x=2 multi-viewer mode r display r display mode! Get output display mode display mode: matrix...
  • Page 36 RS-232 Control Command Command Code Function Description Example Feedback Default Output Setting Set output y color space (y=0~4, x=1~4) y=0. output all y=1. output 1 y=2. output 2 s output s output y csc x! y=3. output 3 output 1 csc: rgb444 rgb444 1 csc 1! y=4.
  • Page 37 RS-232 Control Command Command Code Function Description Example Feedback Default Output Setting Get output y h mirror (y=0~4, x=0,1) y=0. output all output 1 h mirror off y=1. output 1 s output y s output 1 output 2 h mirror off y=2.
  • Page 38 RS-232 Control Command Command Code Function Description Example Feedback Default Output Setting Set output no signal background display mode (x=1~6) x=1. black screen s output bg output background: s output bg x! x=2. blue screen black screen black screen x=3. color bar x=4.
  • Page 39 RS-232 Control Command Command Code Function Description Example Feedback Default EDID Setting Get input x edid mode (x=0~4) x=0. all input r input 1 input 1 r input x edid! x=1. input1 edid! edid:4k60,2.0ch x=2. input2 x=3. input3 x=4. input4 Video Matrix Setting Route input source to output y (y=0~4, x=1~4)
  • Page 40 RS-232 Control Command Command Code Function Description Example Feedback Default Video Wall Setting Set tv wall horizontal s tw h bezel tv wall horizontal bezel: tv wall horizontal s tw h bezel x! bezel (x=0~10,+,-) bezel: 0 tv wall horizontal bezel: r tw h bezel! Get tv wall row bezel r tw h bezel!
  • Page 41 RS-232 Control Command Command Code Function Description Example Feedback Default Video Wall Setting Set tv wall resolution (x=1~15) 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, 5. 3840x2160p30, 6. 1920x1080p60, tv wall resolution: 3840x2160p60 s tw res x! 7. 1920x1080p50, s tw res 3! 3840x2160p60 8.
  • Page 42 RS-232 Control Command Command Code Function Description Example Feedback Default Multi-viewer Setting r multiview! Get multi-viewer display mode r multiview! single screen Select one input for one window for the current multiview mode (x=1~4, y=0~4) y=0. window all y=1. window 1 y=2.
  • Page 43 RS-232 Control Command Command Code Function Description Example Feedback Default Multi-viewer Setting Set windows display aspect ratio (x=1~2) aspect: quad 2 aspect: full s aspect x! s aspect 1! 1. full screen full screen screen 2. 16:9 aspect: quad 2 r aspect! Get windows display aspect ratio r aspect!
  • Page 44 RS-232 Control Command Command Code Function Description Example Feedback Default Embedded Audio Setting Set input x audio selected source hdmi or embed analog audio (x=0~4, z=0~1) x=0. all input input 1 select hdmi hdmi original s input x as z! x=1.
  • Page 45 RS-232 Control Command Command Code Function Description Example Feedback Default Ext-audio Setting Set output ext-audio mode(x=0~2) s output exa s output exa output ext-audio x=0. bind to input mode bind to output mode x! mode 0! moe: bind to input x=1.
  • Page 46 RS-232 Control Command Command Code Function Description Example Feedback Default CEC Setting Set input x menu input 1 menu down s cec in x down! down operation by cec, s cec in 1 down! operation x=0~4(0=all input) Set input x menu input 1 menu left s cec in x left! left operation by cec,...
  • Page 47 RS-232 Control Command Command Code Function Description Example Feedback Default CEC Setting Set hdmi output y power s cec hdmi out y s cec hdmi out off by cec, y=0~4 (0=all hdmi output 1 power off off! 1 off! hdmi output) Set hdmi output y s cec hdmi out y s cec hdmi out...
  • Page 48 RS-232 Control Command Command Code Function Description Example Feedback Default Network Setting r ip addr! Get network ip address r ip addr! ip address:192.168.0.100 set subnet mask: 255.255.255.0 (please use "s net reboot!" s subnet xxx.xxx. Set network subnet s subnet command or repower device xxx.xxx! mask...

  • Page 49: Application Example

    Application Example IR Receiver Amplifier 2.0 Speakers Blu-ray Player AUDIO OUT 1 AUDIO OUT 2 AUDIO OUT 3 AUDIO OUT 4 OPTICAL AUDIO OPTICAL AUDIO OPTICAL AUDIO OPTICAL AUDIO TCP/IP RS-232 AUDIO INPUT HD 1 HD 2 HD 3 HD 4 HD 1 HD 2 HD 3...

  • Page 50: Faqs & Troubleshooting
