Orei UHD44-EXB400R-K User Manual

18gbps 4 x 4 hdbaset (150m) matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

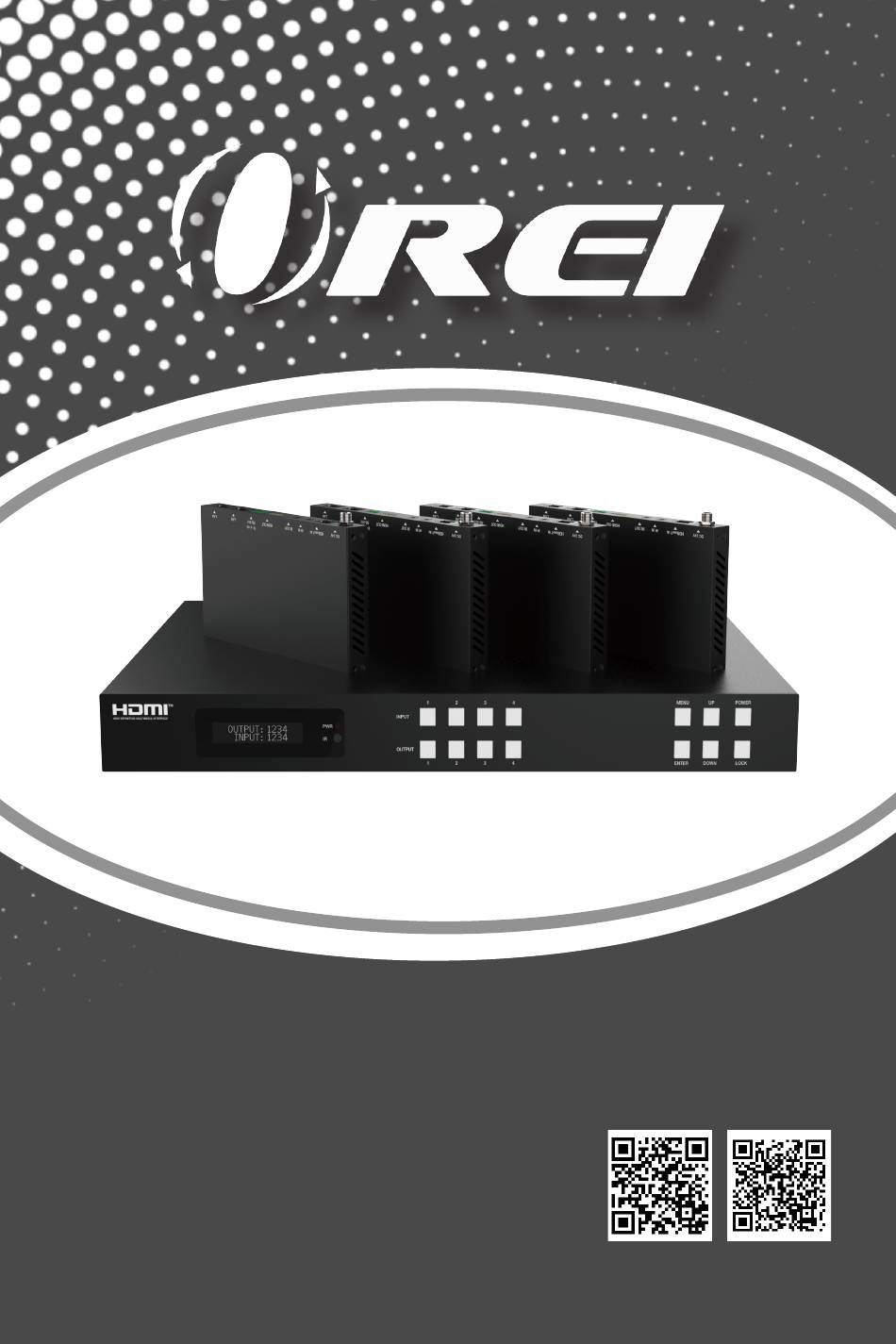

UHD44-EXB400R-K
18Gbps 4 x 4 HDBaseT
Follow us on Youtube
and Facebook
(150M) Matrix
U S E R M A N U A L
www.orei.com
page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHD44-EXB400R-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orei UHD44-EXB400R-K

Summary of Contents for Orei UHD44-EXB400R-K

  • Page 1 UHD44-EXB400R-K 18Gbps 4 x 4 HDBaseT Follow us on Youtube and Facebook (150M) Matrix U S E R M A N U A L www.orei.com page 1...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote IR Control System IR Cable Pin Assignment EDID Management Web GUI User Guide RS-232 Control Command Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct.
  • Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momen- tarily.

  • Page 4: Introduction

    Introduction The UHD44-EXB400R-K can connect up to 4 HDMI sources and output to 8 displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports transmission of video with resolutions up to 4K@60Hz 4:4:4.

  • Page 5: Package Contents

    Advanced EDID management and CEC control are supported 24V POC on all HDBaseT ports 1U rack mounted design with front panel OLED display Control via front panel buttons, IR remote, RS-232, LAN and Web GUI Package Contents UHD44-EXB400R-K 1pcs IR Remote 1pcs HDBaseT Receiver...

  • Page 6: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 HDR 10, HDR 10+, Dolby Vision, HLG LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, HDMI Audio Formats...
  • Page 7 Specifications Connection Inputs: 1 × HDBT IN [RJ45, 8-pin female] Outputs: 1 × HDMI Type A [19-pin female] 1 × AUDIO OUT [3.5mm Stereo Mini-jack] HDBaseT Receiver Controls: 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] 1 ×...

  • Page 8: Operation Controls And Functions

    Operation Controls and Functions Front Panel MENU POWER OUTPUT INPUT ENTER DOWN LOCK Name Function Description Display matrix switching status, input / output port, EDID, Baud rate, IP OLED screen Address. The Power LED will light up green when the product is working nor- Power LED mally, and red when the product is on standby.
  • Page 9 Operation Controls and Functions Rear Panel AUDIO OUT IR IN IR OUT COAX 1 COAX 2 COAX 3 COAX 4 OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TCP/IP RS-232 100-240V AC 50/60HZ HDMI HDBT HDMI HDBT INPUT HDMI HDBT HDMI HDBT CONTROL...
  • Page 10 Operation Controls and Functions HDBaseT Receiver Panel SERVICE HDMI OUT AUDIO OUT IR IN IR OUT Name Function Description Power LED Red LED will be on when the receiver is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. Note: The Matrix supports PoC function, it means that either transmitter DC 24V or receiver is powered on by the 24V/1A power adapter, the other one...

  • Page 11: Ir Remote

    IR Remote Name Function Description AUDIO OUT Analog audio output port. The audio is extracted from HDMI signal. Connect the IR receiver cable, and the IR signal will be sent to the “IR IR IN OUT” port of the Matrix. Connect the IR blaster cable, and the IR signal is received from the “IR IN”...

  • Page 12: Ir Control System

    IR Control System The product is not only a matrix switch but also an extender. It supports bi-direction- al IR control. When the Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, you can control remote display device (HDBaseT) or input source device (Matrix) through IR signal transmission.
  • Page 13 IR Control System At HDBaseT receiver (Remote end): IR signal follows video switch to change. For exam- ple, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so IR input signal of the HDBaseT Receiver 1 will be emitted to IR OUT 2 port of the Matrix.

  • Page 14: Ir Cable Pin Assignment

    IR Cable Pin Assignment IR Cable Pin Assignment IR RECEIVER IR BLASTER EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through on-panel button, RS-232 control or Web GUI.
  • Page 15 EDID Management RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial Command tool on PC to send ASCII command “s edid in x from z!” to set EDID. For details, please refer to “EDID Setting” in the ASCII command list of “RS-232 Control Command”.

  • Page 16: Web Gui User Guide

    Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via panel buttons.
  • Page 17 Web GUI User Guide Step 3. Enter the current IP address of Matrix into your browser on the PC to enter the Web GUI page. There will be a Login page as below: Select the Username from the list and enter the password. The default passwords are: Username User Admin Password user admin After entering the password, click the “LOGIN”...
  • Page 18 Web GUI User Guide ■ Video Page You can do the following operations on the Video page: ① Output: The current device’s OUTPUT port. You can select a signal source for it. ② Input: You can click the drop-down menu to select a signal source for the corre- sponding OUTPUT port .
  • Page 19 Web GUI User Guide You can do the following operations on the Input page: ① Inputs: Input channel of the device. ② Active: It indicates whether the channel is connected to a signal source. ③ Name: The input channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box (Chinese name is unsupported).
  • Page 20 Web GUI User Guide ■ Output Page You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Name: The current output channel’s name. You can modify it by entering the corresponding name (max length: 12 characters) in the input box (Chinese name is unsupported).
  • Page 21 Web GUI User Guide You can perform CEC management on this page: ① Input Control: You can control the operation of each input source by pressing the icons on the page. (You can control multiple inputs simultaneously.) ② Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
  • Page 22 Web GUI User Guide Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed. Modify User Password Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, and then click “Save”.
  • Page 23 Web GUI User Guide Modify Network Setting Modify the Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, and click “Save” to save the settings. Then it will come into effect. After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.

  • Page 24: Rs-232 Control Command

    RS-232 Control Command The product also supports RS-232 control. You need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 25 RS-232 Control Command Command Function Description Example Feedback Default Code System Setting help! List all commands help! r type! Get device model r type! HDP-MXB44H150 Get the unit all status: power, beep, lock, in/out connection, video/ r status! Get device current status r status! audio crosspoint, edid, scaler,hdcp,...
  • Page 26 RS-232 Control Command Command Function Description Example Feedback Default Code Set LCD screen remain on lcd on 30 s lcd on time z! time, z=0~4 (0:off, 1:always s lcd on time 1! lcd always on seconds on, 2:15s, 3:30s, 4:60s) Get the backlight status of r lcd mode! r lcd mode!
  • Page 27 RS-232 Control Command Command Function Description Example Feedback Default Code enable hdmi output 1 stream Set hdmi output y stream s hdmi 1 disable hdmi output 1 s hdmi y on/off, stream 1! stream enable stream z! y=0~4(0=all) z=0~1 s hdmi 0 enable hdmi all outputs (0:disable,1:enable) stream 1!
  • Page 28 RS-232 Control Command Command Function Description Example Feedback Default Code EDID Setting Set input x EDID from default EDID z, x=0~4(0=all),z=1~31 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
  • Page 29 RS-232 Control Command Command Code Function Description Example Feedback Default EDID: 00 FF FF Get the EDID data of the hdmi r edid data r edid data hdmi y! FF FF output y port, y=1~4 hdmi 1! FF FF 00 ……… EDID: 00 FF FF Get the EDID data of the hdbt r edid data...
  • Page 30 RS-232 Control Command Command Code Function Description Example Feedback Default set hdbt output y power s cec hdbt out s cec hdbt out hdbt output 1 off by CEC, y=0~4(0=all hdbt y on! 1 off! power off output) set hdmi output y volume s cec hdmi hdmi output s cec hdmi out y...
  • Page 31 RS-232 Control Command Command Function Description Example Feedback Default Code Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 Get the Current IP r ipconfig! r ipconfig! Gateway: 192.168.1.1 Configuration TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Get network MAC Mac address: r mac addr! r mac addr!
  • Page 32 RS-232 Command Command Code Function Description Example Feedback Default Subnet Mask: r subnet! Get network subnet mask r subnet! 255.255.255.0 Set gateway: 192.168.1.1 Please use “s net reboot!” com- mand or repower s gateway s gateway Set network gateway device to apply xxx.xxx.xxx.xxx! 192.168.1.1! new config!
  • Page 33 RS-232 Command Command Code Function Description Example Feedback Default Set the baudrate of x hdbt uart , x=0-4, y=1-8, 1: s uart x bau- 115200(Default) s uart 1 hdbt uart1 bau- drate y! 2: 57600 3: 56000 4:38400 baudrate 1! drate is 115200 5:19200 6:14400 7:9600 8:4800...

  • Page 34: Application Example

    Application Example Amplifier 2.0 Speakers Power Supply AUDIO OUT IR IN IR OUT COAX 1 COAX 2 COAX 3 COAX 4 OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TCP/IP RS-232 100-240V AC 50/60HZ HDMI HDBT HDMI HDBT INPUT HDMI HDBT HDMI HDBT...
  • Page 35 18Gbps 4 x 4 HDBaseT (150M) Matrix UHD44-EXB400R-K www.orei.com © 2023 page 35...
