Orei UHD-808 User Manual

18gbps 8x8 hdmi matrix with arc function
Hide thumbs
Table of Contents

Advertisement

Quick Links

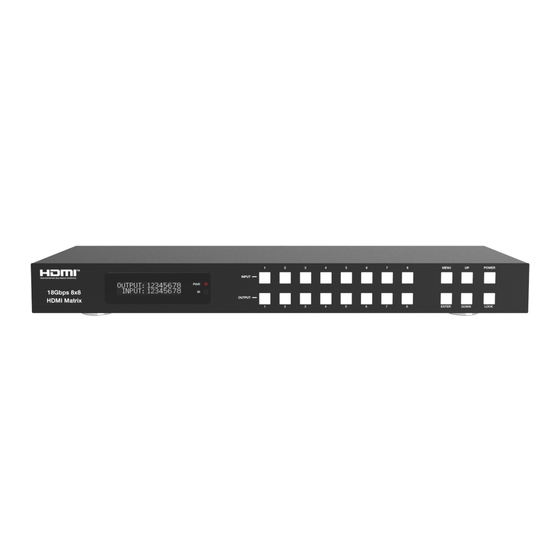

UHD-808
18Gbps 8x8 HDMI Matrix
Follow us on Youtube and
Facebook
with ARC Function
U S E R M A N U A L
www.orei.com
page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHD-808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orei UHD-808

Summary of Contents for Orei UHD-808

  • Page 1 UHD-808 18Gbps 8x8 HDMI Matrix Follow us on Youtube and Facebook with ARC Function U S E R M A N U A L www.orei.com page 1...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote IR Pin Definition EDID Management Web GUI User Guide RS-232 Command Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
  • Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momen- tarily.

  • Page 4: Introduction

    Introduction The UHD-808 Matrix supports the transmission of video (up to 4K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports.

  • Page 5: Package Contents

    Package Contents UHD-808 1pcs 12V/5A Power Adapter 1pcs IR Remote 1pcs IR Receiver Cable (1.5m) 1pcs RS-232 Serial Cable (1.5m, male to female head) 1pcs Mounting Ear 2pcs User Manual 1pcs Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4...
  • Page 6 Specifications Connection 8 × HDMI Type A [19-pin female] Inputs 1 × IR EXT [3.5mm Stereo Mini-jack] 8 × HDMI Type A [19-pin female] Outputs 8 × Coax Audio (RCA) 8 × L/R Audio [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45] Control 1 ×...

  • Page 7: Operation Controls And Functions

    Operation Controls and Functions Front Panel MENU POWER INPUT 18Gbps 8x8 OUTPUT HDMI Matrix ENTER DOWN LOCK Name Function Description Display matrix switching status, input / output port, EDID, Baud rate, OLED screen IP Address. The LED will light up green when the product is connected to power Power LED supply, and red when the product is on standby.
  • Page 8 Operation Controls and Functions Rear Panel COAX L / R IR EXT OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 RS-232 TCP/IP OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8...

  • Page 9: Ir Remote

    IR Remote Power on or Standby: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8: Input Press these buttons to select the input source. ◀ ▶: Select the last or next signal input channel. Output OUTPUT 1/2/3/4/5/6/7/8: Press these buttons to select the signal output channel.

  • Page 10: Ir Pin Definition

    IR Remote The second way: If the IR receiver window of the Matrix is blocked or the Matrix is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal. The furthest distance of using the IR remote is 7 meters and the IR remote is directly faced to the IR receiver head.

  • Page 11: Edid Management

    EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-panel button operation: On the initial OLED display screen, press “MENU”...
  • Page 12 EDID Management The defined EDID setting list of the product is shown as below: EDID Mode EDID Description EDID Mode EDID Description 1080p, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 1080p, Dolby/DTS 5.1 4K2K60_444, HD Audio 7.1 1080p, HD Audio 7.1 4K2K60_444, Stereo Audio 2.0 HDR 1080i, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 HDR...

  • Page 13: Web Gui User Guide

    Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via panel buttons.
  • Page 14 Web GUI User Guide Select the Username from the drop-down list and enter the password. The default passwords are: Username User Admin Password user admin After entering the password, click the “LOGIN” button and the following Status page will appear. ■...
  • Page 15 Web GUI User Guide ① Output: The current device’s OUTPUT port. You can select signal source for it. You can do the following operations on the Video page: ② Input: You can click the drop-down menu to select signal source for the correspond- ③...
  • Page 16 Web GUI User Guide Set EDID for the User Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file, then you can check the name of the selected file. Select “User 1”...
  • Page 17 Web GUI User Guide You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Cable: It indicates the connection status of output ports. When the output port is connected to the display, it shows green, otherwise, it shows gray. ③...
  • Page 18 Web GUI User Guide ■ Network Page You can do the following operations on the Network page: Modify Network Setting Click “Set Network Defaults”, there will be a prompt, as shown in the following figure: page 18...
  • Page 19 Web GUI User Guide Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed. Modify Username Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”.
  • Page 20 Web GUI User Guide Modify Network Setting Modify the Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, then it will come into effect. After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.

  • Page 21: Rs-232 Command

    Web GUI User Guide You can do the following operations on the System page: ① Panel Lock: Click to lock/unlock panel buttons. “ON” indicates that panel buttons are unavailable; “OFF” indicates panel buttons are available. ② Beep: Click to turn on/off the beep. ③...
  • Page 22 RS-232 Command ASCII Commands Serial port protocol: Baud rate: 115200(default) Data bits: 8 Stop bits: 1 Check bit: 0 x - Parameter 1; y - Parameter 2; ! - Delimiter Command Function Description Example Feedback Default Code Power Power on/off the de- Power on vice,z=0~1 System Initializing...
  • Page 23 RS-232 Command Command Function Description Example Feedback Default Code Enable/Disable buzzer function, beep on s beep z! s beep 1! beep on z=0~1(z=0 beep off, z=1 beep off beep on) r beep! Get buzzer state r beep! beep on / beep off Lock/Unlock front panel panel button,...
  • Page 24 RS-232 Command Command Function Description Example Feedback Default Code Get the serial port baud r baud rate! r baud rate! Baudrate:115200 rate of RS02 module Set the control ID of the s id z! s id 888! id 888! product, z=000~999 Output Setting Set input x to output y, s in x av out y!
  • Page 25 RS-232 Command Command Function Description Example Feedback Default Code EDID Setting Set input x EDID from default EDID z, x=0~8(0=all),z=1~31 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
  • Page 26 RS-232 Command Command Function Description Example Feedback Default Code Audio Setting hdmi output 1 arc on Turn on/off ARC of HDMI s hdmi y s hdmi 1 arc 1! hdmi output 1 arc off output y, y=0~8(0=all) arc z! s hdmi 0 arc 1! hdmi all outputs arc on z=0~1(z=0,off,z=1 on) hdmi all outputs arc off...
  • Page 27 RS-232 Command Command Function Description Example Feedback Default Code CEC Setting s cec in x set input x volume mute by CEC, s cec in 1 input 1 volume mute mute! x=0~8(0=all input) mute! s cec in x set input x volume down by CEC, input 1 volume s cec in 1 vol-! vol-!
  • Page 28 RS-232 Command Command Function Description Example Feedback Default Code Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 Get the Current IP Config- r ipconfig! r ipconfig! Gateway: 192.168.1.1 uration TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address: r mac addr! Get network MAC address r mac addr! 00:1C:91:03:80:01...
  • Page 29 RS-232 Command Command Function Description Example Feedback Default Code Network Setting Set gateway: 192.168.1.1 Please use “s net s gateway reboot!” command s gateway xxx.xxx.xxx. Set network gateway or repower device to 192.168.1.1! xxx! apply new config! DHCP on, Device can’t config gateway, set DHCP off first.
  • Page 30 RS-232 Command Command Function Descrip- Example Feedback Default Code tion Network Setting set ip address: 192.168.0.100 (please use “s net reboot!” s ip addr Set network ip s ip addr command or repower device xxx.xxx.xxx. address 192.168.0.100! to apply new config!) xxx! dhcp on, device can’t config static address, set dhcp off first.

  • Page 31: Application Example

    Application Example Amplifier 2.0 Speakers COAX L / R IR EXT OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 RS-232 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 TCP/IP...
  • Page 32 18Gbps 8x8 HDMI Matrix with ARC Function www.orei.com © 2023 page 32...
