Summary of Contents for Orei UHD-404

  • Page 1 18Gbps 4x4 HDMI Follow us on Youtube and Facebook Matrix U S E R M A N U A L www.orei.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Front Panel Rear Panel Remote Control Application Example Thank you for purchasing this product For optimum performance and safety, please read these instructions care-fully before connecting, operating or adjusting this product. Please keep this manual for future reference.
  • Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Sup- port Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
  • Page 4: Introduction

    Introduction The 4x4 HDMI Matrix supports the transmission of video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs. Each output supports downscaler functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source).
  • Page 5: Features

    Features HDCP 2.2 compliant Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4 HDR, HDR10, HDR10+, Dolby Vision passthrough Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio ☆ Support 4K -> 1080P Downscaler Support advanced EDID management Flexible control via panel or IR remote control Package Contents 4×4 HDMI Matrix 1pcs...
  • Page 6: Specifications

    Specification Technical HDCP Compliant HDCP 2.2 / 1.x Video Bandwidth 594MHz / 18Gbps Video Resolution 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) HDMI Audio Formats LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master...
  • Page 7 Specification Mechanical Housing Metal Enclosure Color Black Dimensions 220mm(W)×205mm(D)×19mm(H) Weight 535g Power Supply Input: AC100~240V 50/60Hz Output: DC 12V/2.5A(US/EU standard, CE/FCC/ UL certified) Power Consumption 11.04W Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) page 07...
  • Page 8: Operation Controls And Functions

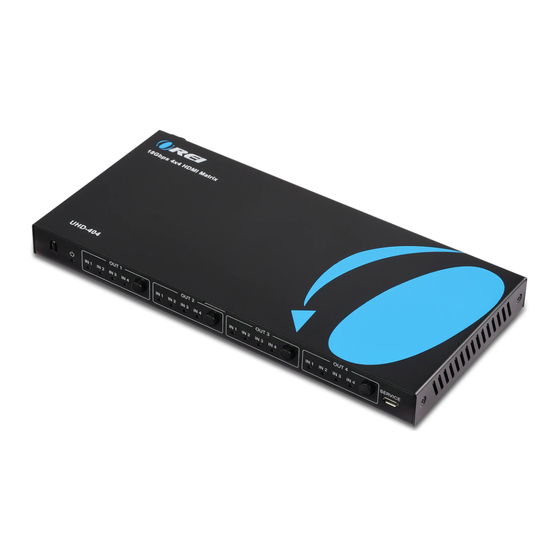

    Operation controls and functions 5.1 Front Panel Name Function/Description TIR receive window POWER LED The red LED illuminates when the device is working or on standby. OUT 1 Button: Short press to switch the input selected by OUT 1; Long press for 3s to turn on/off the downscaler corresponding to OUT 1. LED: When switching to the corresponding input source, the correspongding input LED illuminates green;...
  • Page 9: Rear Panel

    Operation controls and functions 5.2 Rear Panel Name Function/Description INPUT Connect to HDMI source device such as DVD player or PC. OUTPUT Connect to HDMI display device such as TV or Projector. EDID EDID SWITCH control. 0000 1080P, Stereo Audio 2.0 0001 1080P, Dolby/DTS 5.1 0010...
  • Page 10: Remote Control

    Remote Control Power button: Press this button to power on 1/2/3/4: Press buttons 1~4 to select the the device or put it into standby mode. required source for Output1. SD: Press this button to turn on / off the down- Select the last or next input channel among scaler function.
  • Page 11: Application Example

    Application Example page 11...
  • Page 12 Application Example page 12...
  • Page 13 Application Example page 13...
  • Page 14 Application Example page 14...
  • Page 15 page 15...
  • Page 16 18Gbps 4x4 HDMI Matrix www.orei.com © 2020...
