- Page 1 Audi e-tron Foil 600W Battery Charger...
-
Page 3: Table Of Contents
Table of Contents 1 Overview 2 Safety 2.1 Intended Use ........5 2.2 Safety and Warning Instructions for Use . -
Page 4: Overview

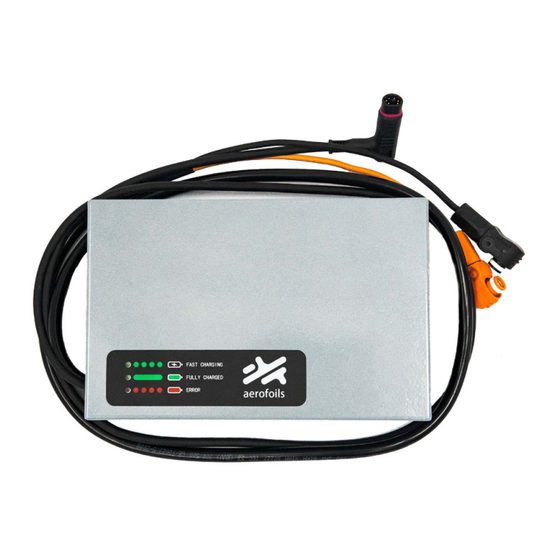

1 Overview HG Power 600W Data connector Power lines LED Display "Fully Charged" LED lights "Error" LED lights up in up as soon as the battery the event of a malfunc- is fully charged. tion. "Fast Charging LED" flas- hes as soon as the batte- ry is connected. -
Page 5: Safety
2 Safety 2.1 Intended Use The HG Power charger is only suitable for charging the batte- ry of the Audi e-tron foil. Other batteries must not be charged with this charger. The charger may only be used if it is in per- fect working order. - Page 6 battery when it is dry and in a fire-safe place. Be careful when touching the charger during charging. » Wear protective gloves. The charger can become very hot, especially at high ambient temperatures. Keep the charger out of the reach of children. »...
-
Page 7: Charging
3 Charging 3.1 Fast Charging Plug the charger into the socket. A running light now » appears over all the LEDs on the charger. First, plug the orange and black power contacts on to » the matching sides on the battery. Now connect the data plug to the battery. -
Page 8: Charging To Storage Voltage
3.3 Charging to Storage Voltage If the battery is to be stored for a longer period of time (>4 weeks), it should be charged to the storage voltage. Both a ful- ly charged battery and an empty battery will shorten the life of the battery if stored for a longer period of time (see Chapter 8.6 - Operating Instructions). -
Page 9: Cleaning And Maintenance
4 Cleaning and Maintenance Danger Risk of electric shock. Disconnect the charger from the main power before » cleaning. Improper handling of the charger can lead to injuries. » Water which has entered the housing of the charger can cause a short circuit and damage the charger. Do not immerse the charger, cable, terminals, or plug »... -
Page 10: Technical Data
5 Technical Data Model HG Power 600W Charging Capacity 600 W IP-Protection Level IP21 Weight 2.44 kg Dimensions 230mm x 150mm x 85mm Charging Times 0%-80% 2h 40min 0%-100% 3h 30min 0%-100% 5h 30min (slow charging) aerofoils... -
Page 11: Storage
6 Storage Store the charger in a dry place, away from sunlight » and free of any dirt. The ambient temperature should be between -5 °C » and +40 °C. 7 Disposal The charger is a recyclable material. It must be dispo- »... -
Page 12: Self-Help / Troubleshooting
8 Self-Help / Troubleshooting The charger LED does not light up after connecting the char- ger to the power outlet. Check the plugs and cables. » Make sure that the power socket is switched on. » The battery does not charge after plugging it into the charger. Check the plugs and cables on the battery. -
Page 13: Manufacturer
9 Manufacturer Delta-Q Technologies Corp. 3755 Willingdon Ave Burnaby, BC Canada aerofoils...
