Truflo — UltraFlo
®
Clamp-On Ultrasonic Flow Meter Sensor

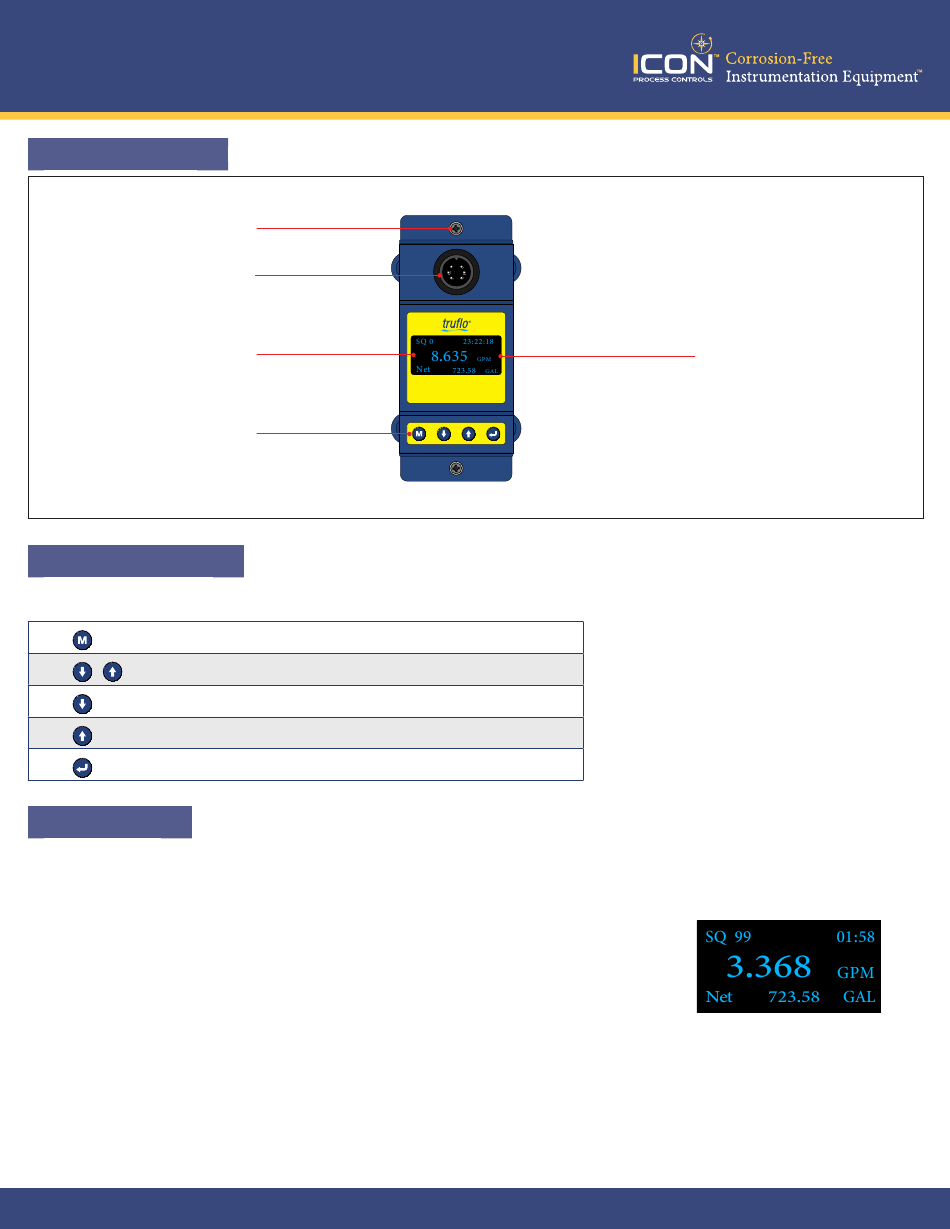

Display Example

Keypad Functions

Follow these guide lines when using the Flow Meter Keypad :
Press to Enter Setup Menu or to Return to previous menu during programming.
Press | to Select system options.
Press to Move to the Next Digit.
Press to Modify Digits (0-9).
Press to Display Different System Options or to Confirm Selection.
Powering ON
When connected to a VDC Power Supply, the UltraFlo
Signal Quality (SQ Value)
SQ value is short form for Signal Quality. It indicates the level of the signal detected.
SQ value is indicated by numbers from 0-99.
"00" is the minimum signal that could be detected and "99" represents the maximum.
Normally, the transducer position should be adjusted repeatedly and coupling compound
should be checked frequently until the signal quality detected is as strong as possible.
24-0498 © Icon Process Controls Ltd.
UF-500
®
Mounting Screw
M12 Connector
UltraFlo-500
www.iconprocon.com
Bright OLED Display
UltraFlo-500
Keypad
UF-500 will begin to run a self-diagnosis program.
®
See Page 8 for
Main Display Layout
