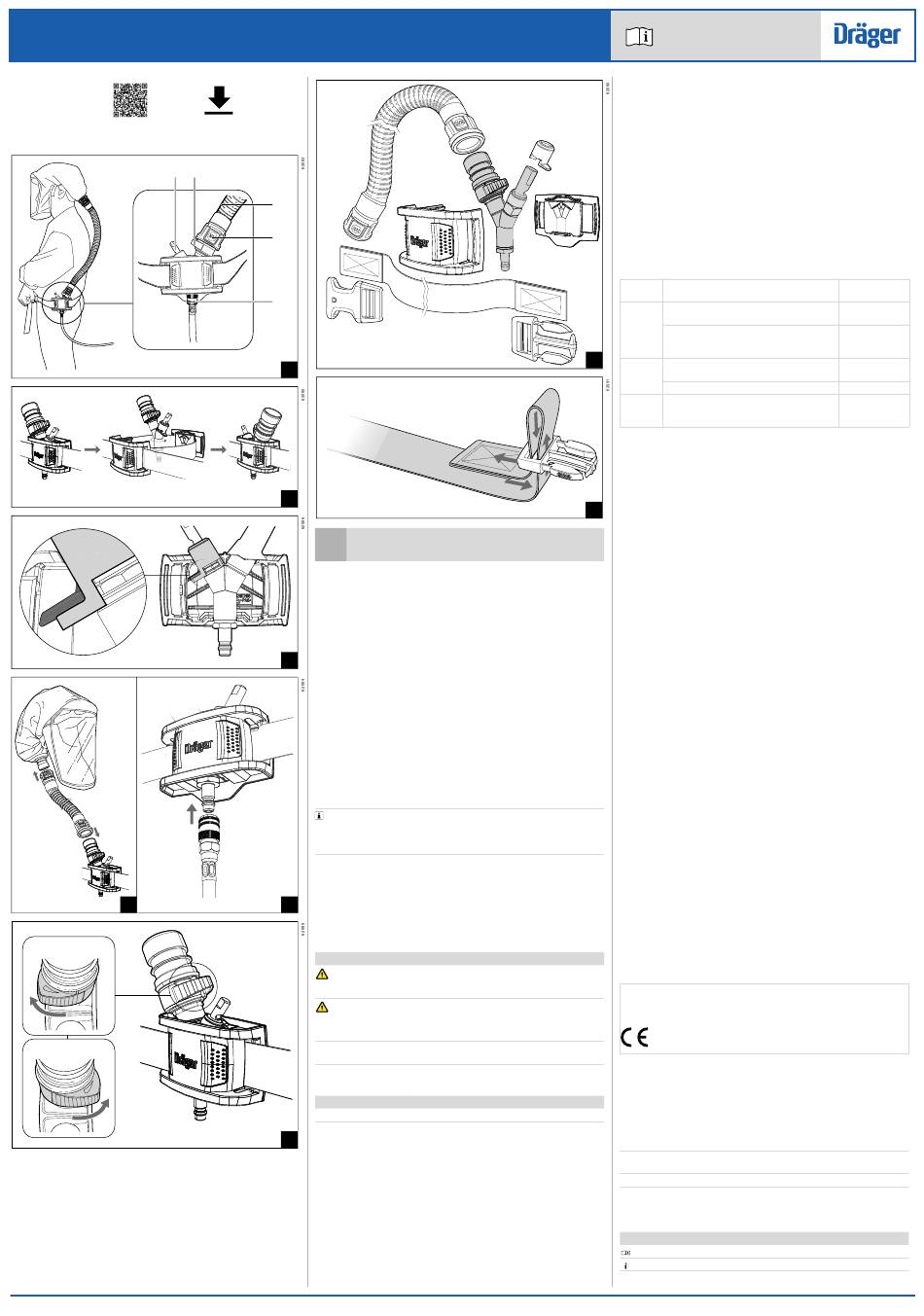

Dräger X-plore 9300 Instructions For Use

X-plore ® 9300
Airline belt manifold
fr da lv sl hu
es fi lt sk el
pt no pl cs tr
it sv ru bg zh
nl et hr ro ja
https://www.draeger.com/ifu?SearchTerm=9301062
1
D
2
3
4
5
A
B
Airline belt manifold X-plore Instruction s for use ® 9300 Instructions for use
en
X-plore
Airline belt manifold
1 Safety-related information
– Before using this product, carefully read these instructions for use
and those of the associated products.
– Strictly follow the instructions for use. The user must fully understand
and strictly observe the instructions. Use the product only for the
purposes specified in the intended use section of this document.
– Do not dispose of the instructions for use. Ensure that they are stored
C
and used appropriately by the user.
– Only trained and competent users are permitted to use this product.
– Comply with all local and national rules and regulations associated
with this product.
– Only trained and competent personnel are permitted to inspect, repair
and service the product. Dräger recommend a Dräger service
contract for all maintenance activities and that all repairs are carried
out by Dräger.
– Use only genuine Dräger spare parts and accessories. Otherwise, the
proper functioning of the product may be impaired.
– Do not use a faulty or incomplete product. Do not modify the product.
– Notify Dräger in the event of any component fault or failure.
Both the latest edition and other languages of these instructions for
use can be downloaded in the Technical Documentation database
(www.draeger.com/ifu). Due to product actualisations, Dräger
recommend always using the latest edition of the instructions for use.
2 Conventions in this document
2.1 Meaning of the warning notices
E
The following warning notices are used in this document to alert the user
to potential hazards. The meanings of the warning notices are defined as
follows:
Warning sign Signal word
2.2 Trademarks
Trademark
X-plore ®
The following webpage lists the countries in which Dräger's trademarks
F
are registered: www.draeger.com/trademarks.
3 Description
3.1 Product overview
The airline belt manifold X-plore 9300 (Fig. A) is a belt-mounted manifold
that connects an external breathing air supply (airline) with a facepiece
worn by the user. The manifold has an input connection (5) for
connecting the airline and an output connection (4) for connecting the
facepiece by means of a corrugated hose (3) with a quick connect
® 9300
Classification of the warning notice
WARNING Indicates a potentially hazardous situ-
ation. If not avoided, it could result in
death or serious injury.
CAUTION Indicates a potentially hazardous situ-
ation. If not avoided, it could result in
physical injury. It may also be used to
alert against unsafe practices.
NOTICE Indicates additional information on
how to use the product.
Trademark owner
Dräger
Instructions for use
coupling at each end. The manifold is equipped with a sound dampener
pressed onto the upper part of the output connection. It serves to reduce
the ventilation noise in the facepiece.
During use, a pressure reducer in the manifold delivers a steady flow of
air from the airline into the facepiece. The air flow lies within the safe limit
values required by the facepiece. The airline belt manifold is available
with or without an adjustable regulator valve (2). Once installed, the
regulator valve lets the wearer of the device adjust the flow of air within
the preset limit values.
The warning whistle (1) is a warning device for low input pressure. The
warning whistle will sound during use to alert the wearer in the event that
the pressure of the breathing air supply falls below the level necessary for
a sufficient supply.
The airline belt manifold is used with the facepiece of the Dräger X-
plore 8000 along with hoods and protective helmets. The compatible
Dräger hoods and Dräger helmets are classified according to the
following table.
Product Facepiece
type
Helmets Helmet L1Z (3710775), Helmet L3Z
(3710785)
Helmet HL1 (3729120), Helmet L2Z
(3710780), Helmet L2T2 (3710790), Helmet
L3T4 (3710795)
G
Hoods R59800, R59810, R59820, R59830,
R59840, R59850, R59860, R59870
Hood T2 (3710776), Hood T4 (3710774)
Visors Welding visor standard (3728190), Welding
visor premium (3728195), face shield
(3710810)
For a complete description of the facepiece, see the instructions for use
supplied with the facepiece.
This device is available with optional radio frequency identification (RFID)
to facilitate electronic management and location of devices by means of a
radio frequency reader. When fitted, the passive RFID tag is positioned
inside the manifold casing.
H
3.1.1 Breathing air supply
The breathing air supply (supply from an airline) is an external breathing
air source that is fed from a breathing air cylinder or a compressor unit;
the breathing air supply delivers the specified air quality with the required
pressure and required flow rate.
3.2 Intended use
The airline belt manifold is designed for use with approved Dräger
compressed air respiratory protection equipment and protects the
breathing system from the effects of harmful substances. The equipment
is only suitable for use with a compressed air line.
The compressed air respiratory protection equipment and other
accessories used with this device must be certified Dräger components
that are used in the approved configuration. Failure to comply with this
requirement can impair the operation of the device. Contact Dräger for
further information.
Use in potentially explosive atmospheres
The suitability for use in potentially explosive atmospheres depends on
the components used. Approval information is specified on the
component name plates. The component with the lowest zone
determines the suitability of the system.
Contact Dräger for more information.
3.3 Limitations on use
The device is not suitable for CBRN hazard situations (chemical,
biological, radiological and nuclear hazard situations).
3.4 Approvals
This product is approved per:
– EN 14594:2018
– (EU) 2016/425
Declarations of conformity: see www.draeger.com/product-certificates
Important notice regarding the Pressure Equipment Directive (German:
DGRL): The airline belt manifold is intended for exclusive use with air line
breathing apparatuses. It is classified as safe pressure equipment
according to the DGRL under the requirement of good engineering
practice. The equipment cannot be DGRL-certified.
Notified body involved in type approval and quality control:
DEKRA Testing and Certification GmbH
Handwerkstrasse 15
70565 Stuttgart
0158
3.5 Markings
The product type is specified on the label on the manifold casing. The
product's serial number is located on the manifold.
Medium-pressure hose markings:
F compressed air supply can be used in situations where flamma-
hose bility may be a risk
H heat resistant hose resistant to damage from contact with hot
surfaces and boiling water
S antistatic hose
electric resistance >10
3.6 Explanation of symbols
Type label
Symbol Declaration
Strictly follow the Instructions for Use
Temperature range of storage conditions
+55°C
-10°C
Class per
EN 14594:2018
3B
4A/3B
3B
4A/3B
4A/3B
3 Ω and <10 8 Ω
9301061 (A3-D-P) Page 1/4
