Deriving Access Point IP Address

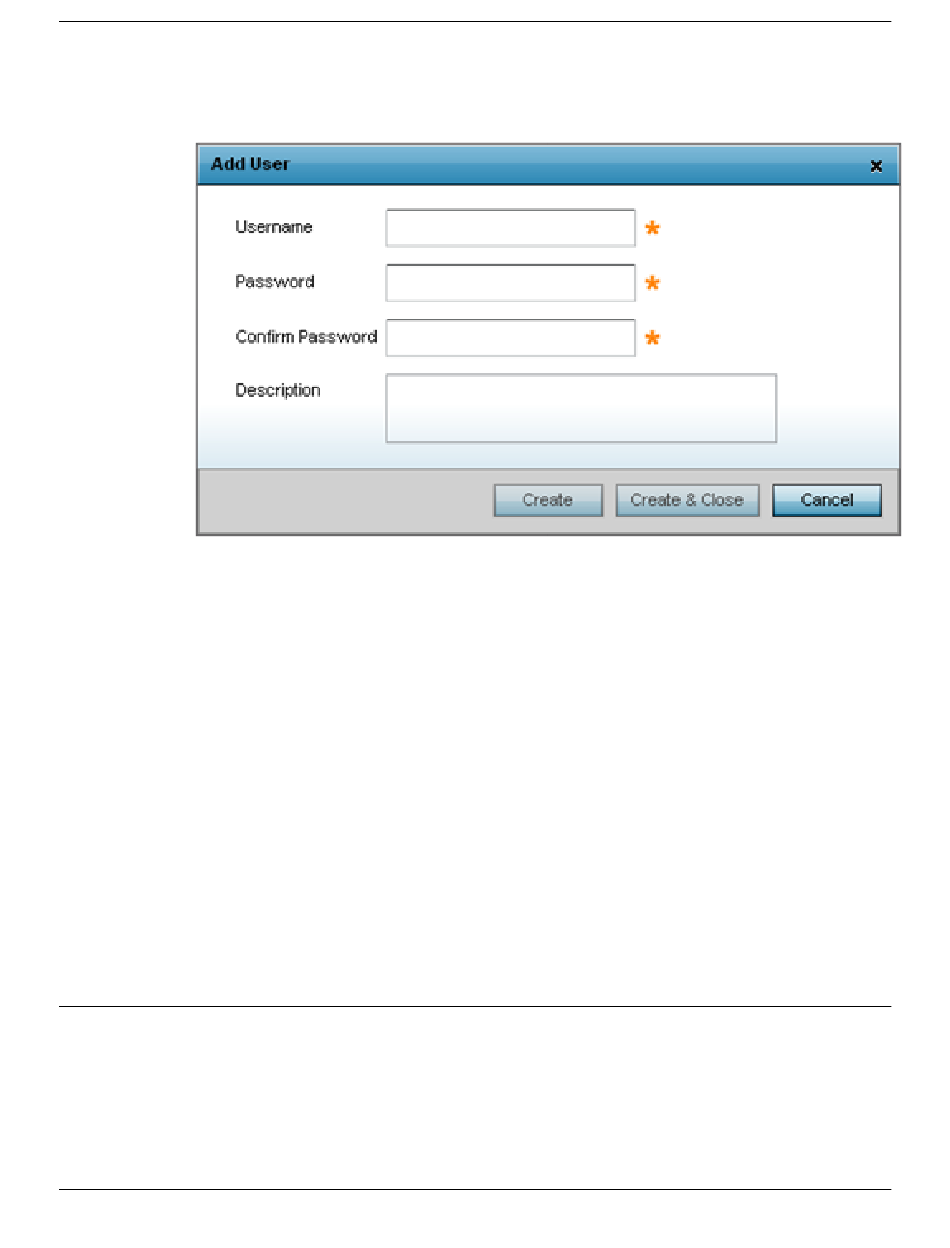

2. Click Add User to display the dialog to enter user information to add to the RADIUS
server user database.
3. Enter the following user information:
•
Username - Provide a user name to authenticate the user.
•
Password - Provide a password to authenticate the user.
•
Confirm Password - Confirm the password by entering the same password
entered in the Password field.
•
Description - Provide a description to identify the user created in the RADIUS
server database.
4. Click Create to create the entry in the RADIUS server database and add another
user. Select Create & Close to create an entry in the RADIUS server database and
close the Add User dialog.
5. Click Modify User within the RADIUS Server Configuration screen to modify
information for an existing user
The Username cannot be modified with this dialog.
6. Click Delete User on the RADIUS Server Configuration screen to remove information
for an existing user.
7. Click Yes to verify the removal.
8. Click Cancel to revert to the last saved configuration.
Deriving Access Point IP Address
About This Task
The Access Point's IP address is optimally provided using DHCP. A zero config IP
address can also be derived if DHCP resources are unavailable. Using zero config, the
last two octets in the IP address are the decimal equivalent of the last two bytes in the
Access Point's hardcoded MAC address.
