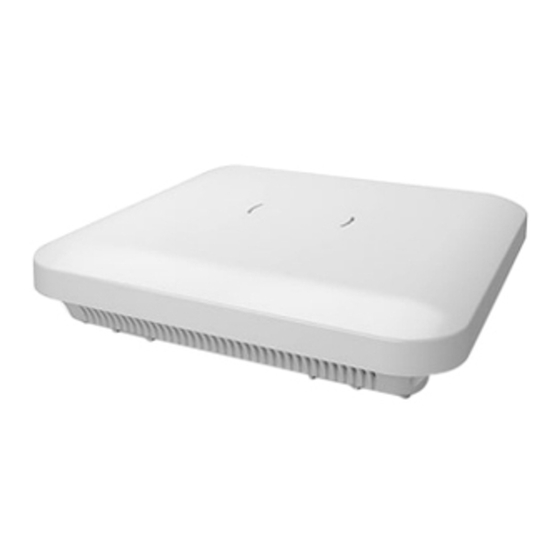

Extreme Networks ExtremeWireless WiNG AP-8533 Installation Manual

Hide thumbs Also See for ExtremeWireless WiNG AP-8533:
Table of Contents

Advertisement

Quick Links

Download this manual
ExtremeWireless WiNG™ AP-8533
Installation Guide
9035160
August 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExtremeWireless WiNG AP-8533 and is the answer not in the manual?

Questions and answers

Related Manuals for Extreme Networks ExtremeWireless WiNG AP-8533

Summary of Contents for Extreme Networks ExtremeWireless WiNG AP-8533

  • Page 1 ExtremeWireless WiNG™ AP-8533 Installation Guide 9035160 August 2017...

  • Page 2: Legal Notice

    Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.

  • Page 3: Table Of Contents

    Table of Contents Preface.............................. 5 Text Conventions....................................5 Providing Feedback to Us................................6 Getting Help......................................6 Extreme Networks Documentation............................. 7 Open Source Declarations..............................7 Overview............................8 Package Contents....................................8 Features........................................8 AP-8533 Antennas....................................9 US/Taiwan......................................9 Canada......................................10 EU..........................................11 LED Indicators...................................... 12 Hardware Installation Instructions..................15 Warnings........................................
  • Page 4 Table of Contents Avertissement................................... 42 2.4 GHz Only....................................42 Warnings for Use of Wireless Devices..........................42 Potentially Hazardous Atmospheres - Vehicle Installation..............42 Potentially Hazardous Atmospheres - Fixed Installations..............42 Safety in Aircraft..................................42 Safety in Hospitals..................................43 RF Exposure Guidelines................................43 Reduce RF Exposure - Use Properly........................43 International....................................43 Europe......................................

  • Page 5: Preface

    Preface This section discusses the conventions used in this guide, ways to provide feedback, additional help, and other Extreme Networks publications. Text Conventions The following tables list text conventions that are used throughout this guide. Table 1: Notice Icons Icon Notice Type Alerts you to...

  • Page 6: Providing Feedback To Us

    You can also email us directly at documentation@extremenetworks.com. Getting Help If you require assistance, contact Extreme Networks using one of the following methods: • GTAC (Global Technical Assistance Center) for Immediate Support Phone: 1-800-998-2408 (toll-free in U.S. and Canada) or +1 408-579-2826. For ◦...

  • Page 7: Extreme Networks Documentation

    Preface Extreme Networks Documentation Extreme Networks Documentation To find Extreme Networks product guides, visit our documentation pages at: Current Product Documentation www.extremenetworks.com/documentation/ Archived Documentation (for earlier www.extremenetworks.com/support/documentation- versions and legacy products) archives/ Release Notes www.extremenetworks.com/support/release-notes Open Source Declarations Some software files have been licensed under certain open source licenses. More information is available at: www.extremenetworks.com/support/policies/open-source-...

  • Page 8: Overview

    Overview Package Contents on page 8 Features on page 8 AP-8533 Antennas on page 9 LED Indicators on page 12 The AP-8533 external antenna and internal antenna Access Points are high-tier Access Points for dependable and efficient network performance. The AP-8533 is a tri-radio Wave 2 802.11ac Access Point utilizing one 5GHz 802.11ac radio, one 2.4GHz 802.11n radio and a dual-band unlock 2.4GHz/5GHz 802.11ac radio for sensor functionality.

  • Page 9: Ap-8533 Antennas

    Overview AP-8533 Antennas • Wave 2 • Baud rate: 115200 The GE1/POE accepts 802.3at or 802.3af compliant power from an external source. Note When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable is recommended for Gigabit operation. The equipment is to be connected only to PoE networks.

  • Page 10: Canada

    Canada Overview An AP-8533 internal antenna Access Point supports the following dual band antenna: Table 4: Dual Band 2.4 GHz / 5 GHz Internal Antennas - US/Taiwan Antenna Type 2.4 GHz Gain (dBi) 5 GHz Gain (dBi) Elevation Gain (dBi) Mono pole •...
  • Page 11 Overview Table 6: Dual Band 2.4 GHz / 5 GHz Wifi Antennas - Canada (continued) Part Number Antenna Type 2.4 GHz Gain 5 GHz Gain (dBi) Impedance (dBi) (Ohms) ML-2452- Polarized Panel 6.92 7.23 SEC5M4-N36 ML-2452- Patch PTA4M4-036 An AP-8533 internal antenna Access Point supports the following dual band antenna: Table 7: Dual Band 2.4 GHz / 5 GHz Internal Antennas - Canada Antenna Type 2.4 GHz Gain (dBi)

  • Page 12: Led Indicators

    LED Indicators Overview An AP-8533 external antenna Access Point supports the following dual band antenna options: Table 9: Dual Band 2.4 GHz / 5 GHz Wifi Antennas - EU Part Number Antenna Type 2.4 GHz Gain 5 GHz Gain (dBi) Impedance (dBi) (Ohms) ML-2452-...
  • Page 13 Overview LED Indicators ExtremeWireless WiNG™ AP-8533 Installation Guide...
  • Page 14 LED Indicators Overview The LEDs display error conditions, transmission, and network activity for the 5 GHz 802.11ac (amber) radio, the 2.4 GHz 802.11n (green) radio, sensor radio (white), and the BLE radio (blue). Table 12: AP-8533 LED Indicators State 5 GHz Activity 2.4 GHz Activity LED (Blue) LED (White)

  • Page 15: Hardware Installation Instructions

    Hardware Installation Instructions Warnings on page 15 Site Preparation on page 15 Access Point Placement Guidelines on page 15 Power Injector System on page 16 Installing the AP-8533 Access Point on page 19 Warnings • Read all installation instructions and site survey reports, and verify correct equipment installation before connecting the AP-8533 Access Point.

  • Page 16: Power Injector System

    Power Injector System Hardware Installation Instructions create dark areas. Uniform antenna placement in an area (like even placement of a light bulb) provides even, efficient coverage. Install the Access Point at an ideal height of 10 feet from the ground. To maximize the Access Point’s radio coverage area, ExtremeNetworks recommends conducting a site survey to define and document radio interference obstacles before installing the Access Point.
  • Page 17 Hardware Installation Instructions Power Injector System adapter supplied power and a change to the AP’s operating configuration is warranted, the Access Point needs to be manually rebooted. Caution The Access Point supports any standards-based compliant power source. However, using the wrong solution (including a POE system used on a legacy Access Point) could either limit functionality or severely damage the Access Point and void the product warranty.

  • Page 18: Installing The Power Injector

    Installing the Power Injector Hardware Installation Instructions Table 13: AP-8533 Power Management (continued) AP-8533 Installing the Power Injector About This Task The Power Injector can be installed free standing, on an even horizontal surface, or wall mounted using the Power Injector's wall mounting key holes. The following guidelines should be adhered to before cabling the power injector to an ethernet source and an access point: •...

  • Page 19: Installing The Ap-8533 Access Point

    Hardware Installation Instructions Installing the AP-8533 Access Point Installing the AP-8533 Access Point About This Task Before installing an AP-8533 Access Point, verify the following: • You are using the correctly rated power solution for the AP-8533 (either the AP-PSBIAS-2P3-ATR Power Injector or the PWR-BGA48V45W0WW external power supply).

  • Page 20: Wall Mount Instructions

    Wall Mount Instructions Hardware Installation Instructions 4. Connect a CAT-5 or better Ethernet cable to a compatible 802.3at or 802.3af power source and run the cable to the installation site. Ensure there is sufficient slack on the cable to perform the installation steps. Note When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable is recommended for Gigabit operation.
  • Page 21 Hardware Installation Instructions Wall Mount Instructions 3. At each point, drill a hole in the wall and attach the mounting bracket. ExtremeWireless WiNG™ AP-8533 Installation Guide...

  • Page 22: Suspended Ceiling T-Bar Mount Instructions

    Suspended Ceiling T-Bar Mount Instructions Hardware Installation Instructions 4. Place the access point on the mounting bracket. 5. To cable the access point using the Power Injector solution (AP-PSBIAS-2P3-ATR), Cabling the Access Point using Power Injector on page 25. 6. To cable the access point using the approved AP-8533 power supply (PWR- BGA48V45W0WW), seeCabling the Access Point using Power Adapter on page 26.
  • Page 23 Hardware Installation Instructions Suspended Ceiling T-Bar Mount Instructions Procedure 1. Install the mounting bracket on the T-bar, then attach the mounting bracket using the mounting slots on the Access Point. 2. To cable the access point using the Power Injector solution (AP-PSBIAS-2P3-ATR), Cabling the Access Point using Power Injector on page 25.
  • Page 24 Suspended Ceiling T-Bar Mount Instructions Hardware Installation Instructions 3. To cable the access point using the approved AP-8533 power supply (PWR- BGA48V45W0WW), seeCabling the Access Point using Power Adapter on page 26. Caution If not using an AP-PSBIAS-2P3-ATR Power Injector, ensure only the AP-8533’s designated power supply (PWR-BGA48V45W0WW) is used to supply power to the Access Point.

  • Page 25: Cabling The Access Point Using Power Injector

    Hardware Installation Instructions Cabling the Access Point using Power Injector 9. Rotate the Access Point chassis 45 degrees counter-clockwise. The clips click as they fasten to the T-bar. The Access Point is ready to configure. Cabling the Access Point using Power Injector About This Task For Power Injector installations: ExtremeWireless WiNG™...

  • Page 26: Cabling The Access Point Using Power Adapter

    Cabling the Access Point using Power Adapter Hardware Installation Instructions Procedure 1. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the Power Injector Data & Power Out connector and the Access Point’s GE1/POE port. 2. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply (host) and the Power Injector Data In connector.

  • Page 27: Configuring The Access Point

    Configuring the Access Point Configuring using the Typical Setup Wizard on page 29 Configuring RADIUS Server Users on page 35 Deriving Access Point IP Address on page 36 You can access the AP-8533 management functions once it is installed and powered About This Task Procedure 1.
  • Page 28 Configuring the Access Point 5. Click Login to load the management interface. Note When logging in for the first time, you’re prompted to change the password to enhance device security in subsequent logins. Note If you get disconnected when running the wizard, you can connect again with the Access Point’s actual IP address (once obtained) and resume the wizard.

  • Page 29: Configuring Using The Typical Setup Wizard

    Configuring the Access Point Configuring using the Typical Setup Wizard 6. Use the Choose One type to Setup the Access Point field options to select the type of wizard to run. The Typical Setup is the recommended wizard. This wizard uses the default parameters for most of the configuration and sets a working network with the least amount of manual configuration.
  • Page 30 Configuring using the Typical Setup Wizard Configuring the Access Point feature set supported by the WiNG operating system. The guide is available at www.extremenetworks.com/support/. To configure the Access Point using the Typical Setup Wizard: Procedure 1. Click Typical Setup from the Choose One type to Setup the Access Point field on the Initial Setup Wizard.
  • Page 31 Configuring the Access Point Configuring using the Typical Setup Wizard 4. Click Next to set the Access Point’s network mode. The Typical Setup Wizard displays the Network Topology screen to define how the Access Point manages network traffic. 5. Choose an Access Point Mode from the available options. Router mode is recommended in a deployment supported by just a single Access Point.
  • Page 32 Configuring using the Typical Setup Wizard Configuring the Access Point 6. Click Next. The Typical Setup Wizard displays the LAN Configuration screen to set the Access Point's LAN interface configuration. 7. Set the following DHCP and Static IP Address/Subnet information for the LAN interface: Use DHCP Select the checkbox to enable an automatic network address configuration using...
  • Page 33 Configuring the Access Point Configuring using the Typical Setup Wizard DNS Forwarding Select this option to allow a DNS server to translate domain names into IP addresses. If this option is not selected, a primary and secondary DNS resource must be specified. DNS forwarding is useful when a request for a domain name is made but the DNS server, responsible for converting the name into its corresponding IP address, cannot locate the matching IP address.
  • Page 34 Configuring using the Typical Setup Wizard Configuring the Access Point through the network. Select this option to use a Web page (either internally or externally hosted) to authenticate users before access is granted to the network. PSK authentication, WPA2 encryption Configures a network that uses PSK authentication and WPA2 encryption.

  • Page 35: Configuring Radius Server Users

    Configuring the Access Point Configuring RADIUS Server Users 12. If additional changes are warranted based on the summary, either select the target page from the Navigational Panel, or use the Back and Next buttons to go to the target screen. Configuring RADIUS Server Users About This Task Use the RADIUS Server Configuration screen in the Typical Setup Wizard to configure...

  • Page 36: Deriving Access Point Ip Address

    Deriving Access Point IP Address Configuring the Access Point 2. Click Add User to display the dialog to enter user information to add to the RADIUS server user database. 3. Enter the following user information: • Username - Provide a user name to authenticate the user. •...
  • Page 37 Configuring the Access Point Deriving Access Point IP Address For example: MAC address - 00:C0:23:00:F0:0A Zero-config IP address - 169.254.240.10 To derive the Access Point’s IP address using its MAC address: Procedure 1. Open the Windows calculator by selecting Start > All Programs > Accessories > Calculator.

  • Page 38: Ap-8533 Access Point Specifications

    AP-8533 Access Point Specifications Electrical Characteristics • Operating Current & Voltage 48 VDC, 0.5A (AUX input voltage) • 48VDC PWR-BGA48V45W0WW Power Supply • 48VDC, 0.5A (POE) • 802.3at AP-PSBIAS-2P3-ATR Power Injector Physical Characteristics Dimensions • 8.25 in. L x 8.25 in. W x 1.8 in. H •...
  • Page 39 AP-8533 Access Point Specifications Radio Characteristics Network Standards • IEEE 802.11a/b/g/n/ac, Wave 2 • 802.11d and 802.11i WPA2 • WMM and WMM-UAPSD Transmit Power Adjustment 1 dB increments ExtremeWireless WiNG™ AP-8533 Installation Guide...

  • Page 40: Regulatory Information

    This device is only to be used with an Extreme Networks Wireless Switch. For use only with Extreme Networks approved and UL Listed mobile computers, Extreme Networks approved, and UL Listed/Recognized battery packs.

  • Page 41: Bluetooth Wireless Technology

    Regulatory Information Bluetooth Wireless Technology Bluetooth Wireless Technology This is an approved Bluetooth® product. For more information or to view the End Product Listing, visit https://www.bluetooth.org/tpg/listings.cfm. Wireless Country Approvals Note This section is applicable only to WW/WR configurations. Regulatory markings are applied to the device signifying the radio(s) are approved for use in the following countries and continents: United States, Canada, Japan, China, South Korea, Australia, Europe and Taiwan.

  • Page 42: Industry Canada Statement

    Industry Canada Statement: Regulatory Information Industry Canada Statement: Caution The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-Channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.

  • Page 43: Safety In Hospitals

    Regulatory Information Safety in Hospitals Safety in Hospitals Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. Wireless devices transmit radio frequency energy and may affect medical electrical equipment.

  • Page 44: Europe

    Europe Regulatory Information "International" human exposure to electromagnet fields refer to #unique_40/ unique_40_Connect_42_SECTION_DOC_EU. The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. Europe Remote and Standalone Antenna Configurations To comply with EU RF exposure requirements, antennas that are mounted externally at remote locations or operating near users at stand-alone desktop of similar configurations must operate with a minimum separation distance of from all persons.

  • Page 45: Radio Frequency Interference Requirements

    Regulatory Information Radio Frequency Interference Requirements Radio Frequency Interference Requirements Radio Frequency Interference Requirements - FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 46: Canada

    Canada Regulatory Information Canada For RLAN Devices The use of 5 GHz RLANs, for use in Canada, have the following restrictions: • Restricted Band This device complies with RSS 247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not causeharmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 47: Ce Marking And European Economic Area (Eea)

    Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 - 2.4835 GHz. Statement of Compliance Extreme Networks hereby declares that this radio equipment is in compliance with Directive 2011/65/EU and 1999/5/EC or 2014/53/EU (2014/53/EU supersedes 1999/5/EC from 13th June 2017). A Declaration of Conformity may be obtained from www.extremenetworks.com.

  • Page 48: Other Countries

    Other Countries Regulatory Information Other Countries Australia Use of 5 GHz RLANs in Australia is restricted in the following band: . Brazil (UNWANTED EMISSIONS - ALL PRODUCTS) Regulatory declarations for AP-8533I, AP-8533 - BRAZIL For more information consult the website www.anatel.gov.br. Nota: A marca de certificação se aplica ao Transceptor, modelo AP-8533.

  • Page 49: China

    Regulatory Information China Conforme a Resolución 755 parte j.1), se ajustará el dispositivo a operar en interiores en las siguientes bandas con una potencia máxima radiada no superior a 150 mW: • 2.400 hasta 2.483,5 MHz • 5.150 hasta 5.250 MHz •...

  • Page 50: Turkey

    Turkey Regulatory Information Turkey Bu cihaz Türkçe karakterlerin tamam?n? ihtiva eden ETSI TS 123.038 V8.0.0 (veya sonraki sürümün kodu) ve ETSI TS 123.040 V8.1.0 (veya sonraki sürümün kodu) teknik özelliklerine uygundur. Ukraine Regulatory Statement Thailand Eurasian Customs Union Waste Electrical and Electronic Equipment In accordance with Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE): 1.

  • Page 51: End-User Software License Agreement

    End-User Software License Agreement This document is an agreement (“Agreement”) between You, the end user, and Extreme Networks, Inc., on behalf of itself and its Affiliates (“Extreme”) that sets forth your rights and obligations with respect to the “Licensed Materials”. BY INSTALLING SOFTWARE AND/ OR THE LICENSE KEY FOR THE SOFTWARE (“License...
  • Page 52 End-User Software License Agreement Regulatory Information products and services purchased, acquired or licensed hereunder from Extreme either directly or indirectly. 2. TERM. This Agreement is effective from the date on which You accept the terms and conditions of this Agreement via click-through, commence using the products and services or upon delivery of the License Key if applicable, and shall be effective until terminated.
  • Page 53 Regulatory Information End-User Software License Agreement use during a subscription period as defined in Your applicable Ordering Documentation. • Capacity. Under the terms of this license, the license granted to You by Extreme authorizes You to use the Licensed Materials up to the amount of capacity or usage as defined in the Ordering Documentation.
  • Page 54 End-User Software License Agreement Regulatory Information lease, transfer, sublicense, dispose of, or otherwise make available the Licensed Materials or any portion thereof, to any other party. b. You further acknowledge that in the event of a breach of this Agreement, Extreme shall suffer severe and irreparable damages for which monetary compensation alone will be inadequate.
  • Page 55 Regulatory Information End-User Software License Agreement 10. DEFAULT AND TERMINATION. In the event that You shall fail to keep, observe, or perform any obligation under this Agreement, including a failure to pay any sums due to Extreme, or in the event that you become insolvent or seek protection, voluntarily or involuntarily, under any bankruptcy law, Extreme may, in addition to any other remedies it may have under law, terminate the License and any other agreements between Extreme and You.
  • Page 56 End-User Software License Agreement Regulatory Information FIRM ARE VOID. IN NO EVENT WILL EXTREME OR ANY OTHER PARTY WHO HAS BEEN INVOLVED IN THE CREATION, PRODUCTION OR DELIVERY OF THE LICENSED MATERIALS BE LIABLE FOR SPECIAL, DIRECT, INDIRECT, RELIANCE, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING LOSS OF DATA OR PROFITS OR FOR INABILITY TO USE THE LICENSED MATERIALS, TO ANY PARTY EVEN IF EXTREME OR SUCH OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 57 Should You have any questions regarding this Agreement, You may contact Extreme at the address set forth below. Any notice or other communication to be sent to Extreme must be mailed by certified mail to the following address: Extreme Networks, Inc. 6480 Via Del Oro San Jose, CA 95119, USA...

  • Page 58: Glossary

    Glossary ad hoc mode An 802.11 networking framework in which devices or stations communicate directly with each other, without the use of an AP. Address Resolution Protocol is part of the TCP/IP suite used to dynamically associate a device's physical address (MAC address) with its logical address (IP address). The system broadcasts an ARP request, containing the IP address, and the device with that IP address sends back its MAC address so that traffic can be transmitted.
  • Page 59 WEP keys. Unlike EAP-TLS, EAP-TTLS requires only server-side certificates. PEAP (Protected Extensible Authentication Protocol) .) (See also ESRP Extreme Standby Router Protocol is an Extreme Networks-proprietary protocol that provides redundant Layer 2 and routing services to users. Extreme Access Control...
  • Page 60 Glossary EAC, formerly NAC™, featuring both physical and virtual appliances, is a pre- and post-connect solution for wired and wireless LAN and VPN users. Using Identity and Extreme Access appliances and/or Identity and Access Virtual Appliance with the Management Center software, you can ensure only the right users have access to the right information from the right place at the right time.
  • Page 61 Glossary ExtremeWireless products and solutions offer high-density WiFi access, connecting your organization with employees, partners, and customers everywhere they go. The family of wireless products and solutions includes APs, wireless appliances, and software. Learn more about ExtremeWireless at http://www.extremenetworks.com/ products/wireless/. ExtremeXOS ExtremeXOS, a modular switch operating system, is designed from the ground up to meet the needs of large cloud and private data centers, service providers,...
  • Page 62 Glossary Card (EAP-GTC) or Microsoft Challenged Handshake Protocol Version 2 (MSCHAP V2). EAP-TLS/EAP-TTLS .) (See also Secure Socket Layer is a protocol for transmitting private documents using the Internet. SSL works by using a public key to encrypt data that is transferred over the SSL connection.

  • Page 63: Index

    Index conventions notice icons 5 text 5 documentation feedback 6 location 7 guidelines, RF Explosure 43 Open Source Declaration 7 requirements, RF Interference 45 , see technical support support technical support contacting 6 ExtremeWireless WiNG™ AP-8533 Installation Guide...
