1.0
Introduction
This quick start guide assists the user to connect and use the YROTATE-IT-RX111 motor control kit for the first
time. The RX111 microcontroller flash memory is pre-programmed with a motor control project. Please check
the contents of the kit using the supplied package contents list and notify your supplier if any are missing.
Note: PLEASE DO NOT CONNECT THE BOARD TO THE HOST PC BEFORE INSTRUCTED
2.0

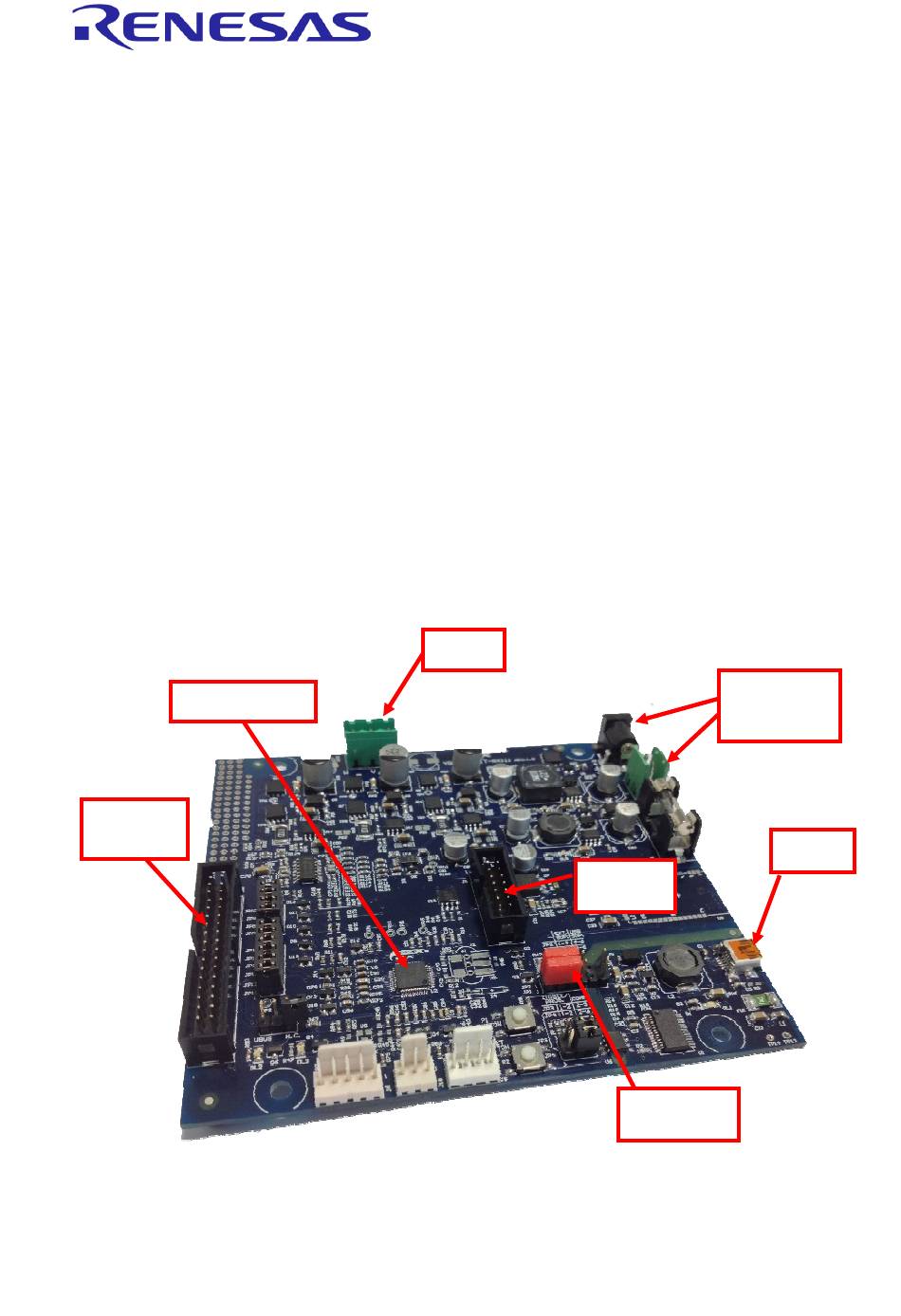

Board Layout
RX111
Motor Control MCU
J6: External
Power Stage
Connector
For further board details, please refer to the YROTATE-IT-RX111 User Manual.
YROTATE-IT-RX111 Quick Start Guide
J7: Motor
Connector
D013602-11-S01
J3-J4: External
Power Supply
Connectors
[24V MAX]
J5: E1
Connector
Power Supply
Selection
JP1, JP2
1
1
2
3
4
4
7
7
J1: USB
Connector
1
