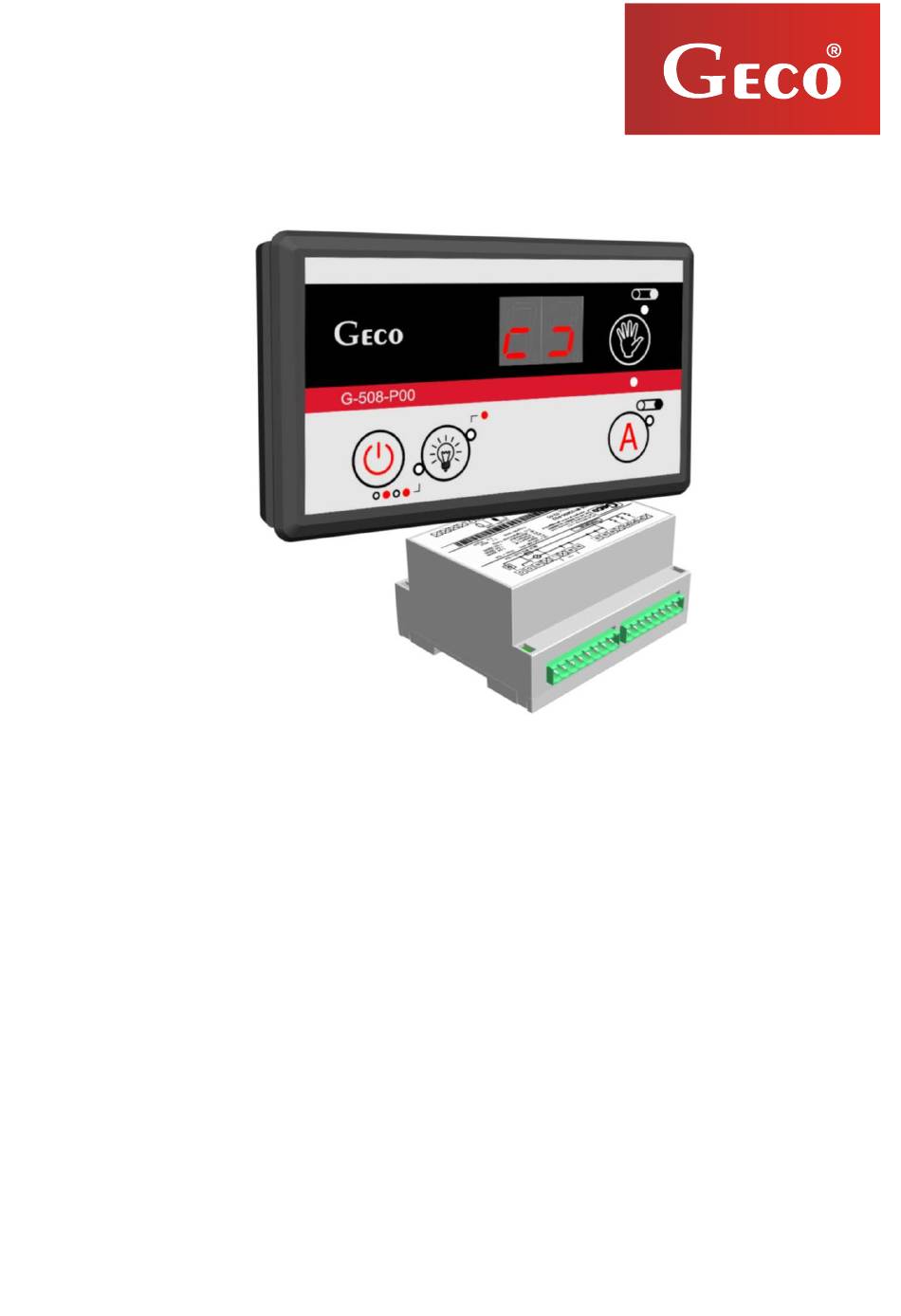

OPERATING AND MAINTENANCE MANUAL
FOR CONTROLLER BLOCK TYPE
(CHECK-OUT COUNTER)
G-508-P00
Firmware Version 02a
Please read and understand the manual very carefully before connecting and starting any of our
devices. In case of any doubts, please contact us during working hours (8 am to 4 pm).
Note!!! The date of the last revision can be found at the bottom of every of the following pages,
please always use the latest available manual that can be received free of charge upon order.
Advertisement
Table of Contents
Related Manuals for Geco G-508-P00
Summary of Contents for Geco G-508-P00
- Page 1 OPERATING AND MAINTENANCE MANUAL FOR CONTROLLER BLOCK TYPE (CHECK-OUT COUNTER) G-508-P00 Firmware Version 02a Please read and understand the manual very carefully before connecting and starting any of our devices. In case of any doubts, please contact us during working hours (8 am to 4 pm).
-
Page 2: Table Of Contents
General Features ...................... 4 Technical Specifications ..................5 Electrical System and Rules of Connection ............5 Operating the Controller G-508-P00 ..............5 5.1. Switching On the device and calibration of the touch keyboard ....... 5 5.2. STANDBY mode ........................6 5.3. -
Page 3: Connections Diagram
G - 5 0 8 - P 0 0 N s : 0 0 0 0 D a t a P r o d . : 0 4 - 0 9 “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... -
Page 4: General Features
- photocell input (transmitter, receiver) - remote control foot pedal input - emergency switch input. The G-508-P00 Controller is also equipped with outputs allowing direct connection to devices operating at 230V AC, such as: - main feeder motor - light. -
Page 5: Technical Specifications
On/Off status, therefore before performing ANY MAINTENANCE ACTIVITIES, please make sure the device is fully disconnected from power!!! 5. Operating the Controller G-508-P00 5.1. Switching On the device and calibration of the touch keyboard After connecting the controller to the power supply, the controller for about 4 seconds calibrates the touch keyboard. -
Page 6: Standby Mode
- Dot off – photocell covered (transmitter and receiver “cannot see each other”). The LED display shows the feeder symbol indicating the current status of the main feeder (standstill or movement). “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... -
Page 7: Photocell
“c8” / 4 seconds, for example for “c8” = 6 the time is 1.5 seconds. NOTE!!! When the emergency stop switch is activated, the motor stops immediately regardless of the “c8” setting. “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... -
Page 8: Main Feeder Motor Maximum Speed
If no button is pressed for at least 20 seconds, the device automatically exits the Programming mode (and returns to the STANDBY mode), and the last edited setting is not saved. “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... - Page 9 - When the device programming and start-up is complete, verify its operation and the values of the device settings. “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14...
-
Page 10: Device Settings
Main feeder motor minimum speed. Motor soft stop duration (when = “0” – no 4 (1s) soft stop). Main feeder motor maximum speed. Value of “99” means full motor speed. Photocell filter. “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... -
Page 11: Information Regarding Marking And Collection Of Waste Electronic And Equipment
The obligation of selective equipment collection rests on the user who should deliver the equipment to a collection point. “PPUH GECO” Sp. z o.o. Revision II Valid from 2016-11-14... - Page 12 P.P.U.H. “Geco” Spółka z o. o. 32-060 Liszki, Cholerzyn 376 Poland T: 012 6369811, 6361290 F: 012 6362002...
