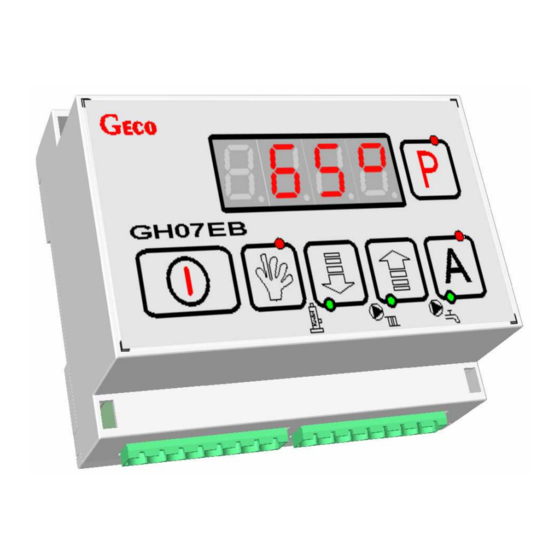

Heating controller GH07EB
For electrode (ion) boilers
User manual
Attention
We strongly recommend that you familiarise yourself fully with the contents of this
manual before installing and using any of our devices. If you have any questions, please
contact us between 08:00 and 16:00. At the bottom of every page is the date of latest
publication. Please always use the latest version of the instructions, which you can obtain, post
free, upon request.
Advertisement
Table of Contents
Related Manuals for Geco GH07EB
Summary of Contents for Geco GH07EB
- Page 1 Heating controller GH07EB For electrode (ion) boilers User manual Attention We strongly recommend that you familiarise yourself fully with the contents of this manual before installing and using any of our devices. If you have any questions, please contact us between 08:00 and 16:00. At the bottom of every page is the date of latest publication.
-
Page 2: Table Of Contents
Table of contents DESCRIPTION OF CONTROLLER........................3 TECHNICAL DETAILS............................4 REQUIREMENTS FOR ELECTRICAL INSTALLATION ..................4 GRAPHIC AND TEXT DESCRIPTION OF CONTROLLER INSTALLATION ............. 5 CONTROLLER MODES ............................6 5.1............................... 7 TANDBY MODE 5.2............................7 UTOMATIC MODE 5.3. -
Page 3: Description Of Controller
1. Description of controller. The GH07EB controller is a device used to control water heating installations using electrode furnaces. The GH07EB controller is a microprocessor-based device manufactured using Surface Mount Technology (SMT). This controller controls the domestic hot water (DHW circuit), and provides support for the main heating circuit (CO). -
Page 4: Technical Details
2. Technical details. Resistance Power supply 230V +10% -15% characteristics of NTC Operating temperature od +5°C do +40°C sensor Resistance Temp. Humidity od 20% do 80% RH Ω °C Sensor type 7174.89 NTC 2.2kΩ Temperature sensor NTC: 0°C÷100°C 4374.83 operating range 2747.10 1774.91 1172.09... -
Page 5: Graphic And Text Description Of Controller Installation
52-53 boiler/Room sensor NTC2.2k 54-55 Description of controller inputs – room thermostat Type of room Type of input Controller designation thermostat GECO-GA01HC room panel dedicated for RS485 58-59-60-61 GH07EB Standard thermostat Relay 55-56 Description of controller outputs – technological equipment... -
Page 6: Controller Modes
Schematic diagram for controller installation: ONLY A QUALIFIED WIRING TECHNICIAN MAY CONNECT DEVICES TO THE GH07EB CONTROLLER 5. Controller modes This controller can operate in four modes: • Standby – the controller returns to the state it was in before the loss of power supply. The control algorithm is not implemented, and the previous settings and chosen installation are stored. -
Page 7: Standby Mode
5.1. Standby mode. After installation as described in the previous chapter, the GH07EB controller goes into standy mode. In this mode the screen displays four lit dashes. When the controller is in standby mode, it is possible to go to manual mode using button . -
Page 8: Manual Mode
5.3. Manual mode. In manual mode, the controller does not activate the algorithm, and the number and type of attached devices are dependent on the user, who takes responsibility for the correct operation of the equipment. The system temperature is displayed on the main screen. On entering manual mode, all connected devices are stopped automatically. -
Page 9: Controller Fascia Panel
6.1. Controller fascia panel. Manual mode signal User parameter programme signal Automatic mode signal DHW pump signal Electrode boiler signal CH pump signal Button Description action Controller on/off Temperature is shown on the main screen This button is used in automatic mode to All devices are turned off. -
Page 10: Overview Of Temperature Settings
6.2. Overview of temperature settings On pressing button the display shows the temperature of the water returning to the boiler. It is also possible to see the temperature of the water flowing from the boiler. Previewing DHW temperature is possible, providing additional hot water pumping is activated (⇒... -
Page 11: Edit User Parameters
The hot water pump is only accessible if it has been selected for use in the service parameters ( Ch.13, P.21) ⇒ When in manual mode the controller can work for a limited time with the electrode boiler and pump turned off, to protect against the risk of boiler temperature rising. -
Page 12: Description Of Additional Functions
7. Description of additional functions 7.1. DHW priority The GH07EB controller allows DHW to be set as priority mode. In this mode of operation, heating hot water becomes priority and CH takes a secondary position. This is available only in the second heating configuration. To enable, set the value „1” in user parameter U8. - Page 13 - Signals that the anti-legionella function is active. This function is available only in the second heating configuration. The anti-legionella function takes priority over all others, meaning that it is performed by the controller first. When this function is enabled, the temperature of the water in the boiler is raised to 70°C and this temperature is maintained for ten minutes.
-
Page 14: Operating System Installations
Installation nr 1 – Assignment of inputs Input Description 50-51 Temperature sensor - water returning to boiler Temperature sensor – water flowing from 52-53 boiler/Room temperature 54-55 55-56 Room temperature GA01HC - GECO room panel dedicated for 58-59-60-61 GH07EB Page 14 Edition I 03.12.2012... -
Page 15: Heating Installation Nr 2
Input Description 50-51 Temperature sensor - water returning to boiler Temperature sensor - water flowing from 52-53 boiler/Room temperature 54-55 DHW temperature sensor 55-56 Room thermostat GA01HC - GECO room panel dedicated for 58-59-60-61 GH07EB Page 15 Edition I 03.12.2012... -
Page 16: Heating Installation Nr 3
Installation nr 3 – Assignment of inputs Wejście Description 50-51 Temperature sensor - water returning to boiler Temperature sensor - water flowing from 52-53 boiler/Room temperature 54-55 55-56 Room thermostat GA01HC - GECO room panel dedicated for 58-59-60-61 GH07EB Page 16 Edition I 03.12.2012... -
Page 17: Alarms
10. Temperature limiter (STB). An additional independent temperature limiter (STB) can be connected to the GH07EB controller, via terminals 15-16 (⇒ p.6). This provides additional mechanical protection against excessive temperature rises in the heating system. If the temperature limiter disconnects the contacts due to rising temperature from the boiler, disconnect the electrode boiler from the power supply. -
Page 18: Power Failure
Correct connection with the controller is signalled by a lit LED behind icon on the GA01HC room panel If the GH07EB electrode boiler controller is connected to the GA01HC-01 room panel, this will be detected automatically by the controller and activation does not require any additional steps or settings from the user. -
Page 19: Room Thermostat
Fig. 12.1 Schematic diagram for connecting the GA01HC room panel to the GH07EB controller 12.2 Room thermostat. It is possible to connect an external thermostat to the GH07EB controller (⇒ p.6), which, when activated, will close output contacts and lock the boiler. The room thermostat can lock the boiler by overriding the driver input that supports the thermostat (when the thermostat is active). - Page 20 P.P.U.H. „Geco” Sp. z o. o. 32-060 Liszki, Polska Cholerzyn 376 tel. 012 6369811, 6361290 fax. 012 6362002 http://www.geco.pl...
