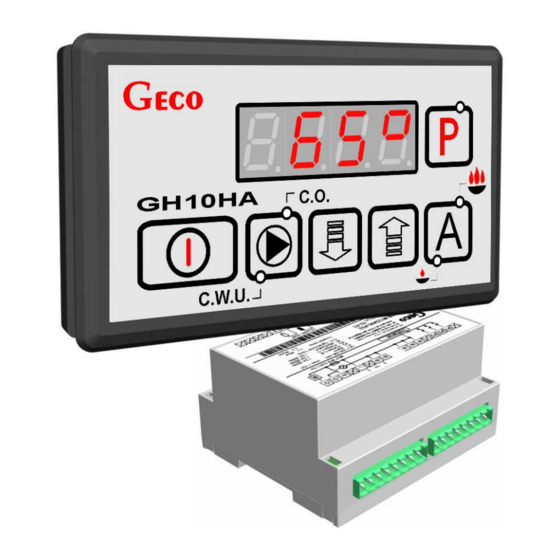

Geco GH10HA User Manual

For controlling holzgas forced circulation wood central heating boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

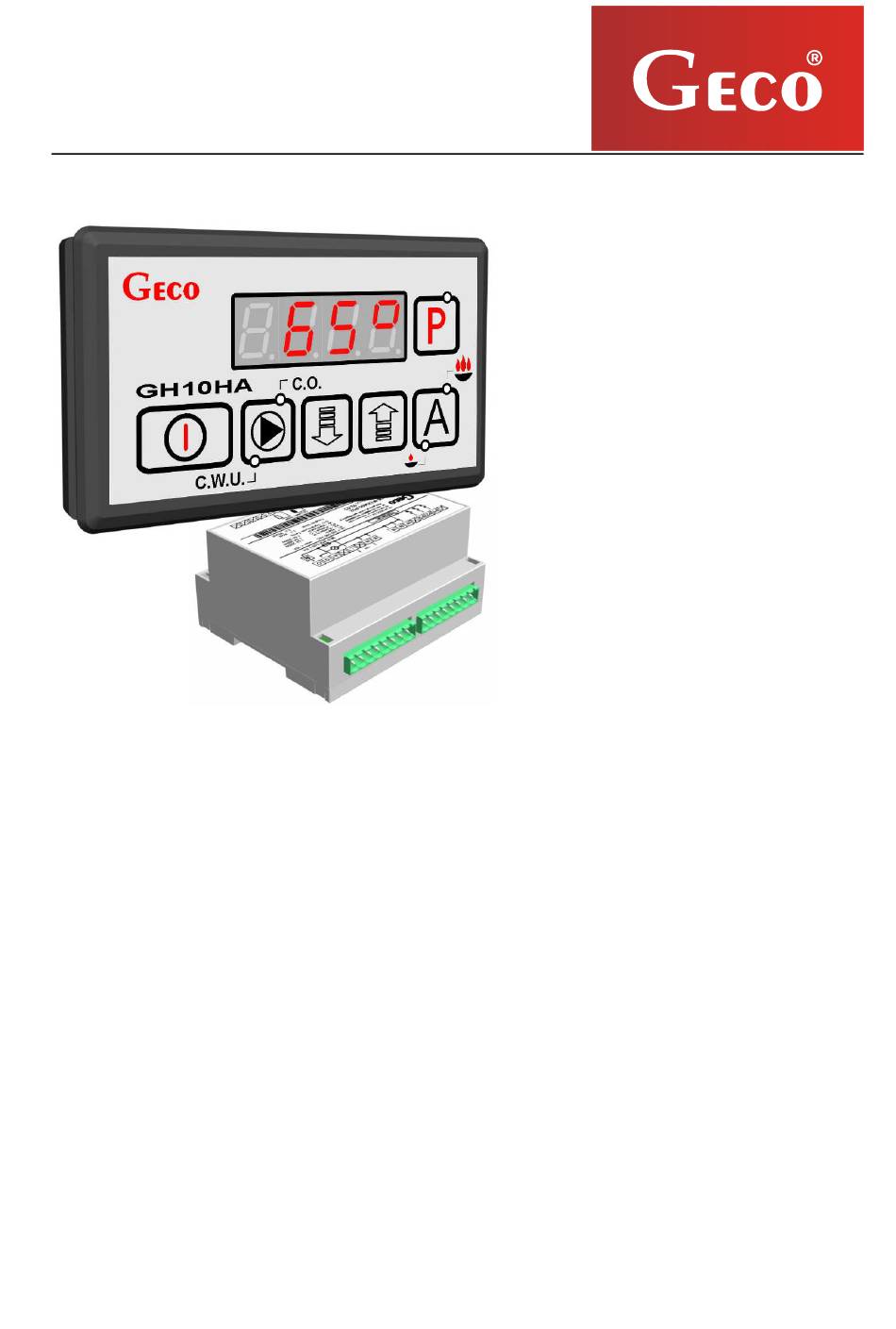

MANUAL
FOR CONTROLLER
GH10HA
For controlling Holzgas forced
circulation wood central heating
boiler
Program version: 01
USER MANUAL
We request that users carefully study applicable Instructions before connecting andstarting up any of our
products. Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH10HA and is the answer not in the manual?

Questions and answers

Related Manuals for Geco GH10HA

Summary of Contents for Geco GH10HA

  • Page 1 MANUAL FOR CONTROLLER GH10HA For controlling Holzgas forced circulation wood central heating boiler Program version: 01 USER MANUAL We request that users carefully study applicable Instructions before connecting andstarting up any of our products. Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.

  • Page 2: Table Of Contents

    RIORITY 8.4..........................15 UMMER ROOM THERMOSTAT ........................15 TEMPERATURE LIMITER (STB) ...................... 16 CONNECTION DEVICES TO THE GH10HA CONTROLLER ..............17 INFORMATION ON LABELLING AND COLLECTION OF WORN OUT ELECTRICAL AND ELECTRONIC EQUIPMENT ..........................18 Issue I APRIL 2013...

  • Page 3: Introduction

    GH10HA USER MANUAL PAGE 3 INTRODUCTION 1.1. Graphic symbols Symbols intended to indicate and at the same time emphasise the importance of text containing information that warns against dangerous situation have the following graphic forms: Warning This symbol is used when it is necessary in described instructions to follow the sequence of carried out operations.

  • Page 4: General Features

    GH10HA USER MANUAL PAGE 4 GENERAL FEATURES The GH10HA Controller is a microprocessor-based device manufactured using the Surface Mount Technology (SMT). It is designed to control the processes of Hot Utility Water (HUW) heating and the main Central Heating (CH) water circuit. Control parameters can be adjusted to the current operating conditions and boiler type.

  • Page 5: Technical Data

    GH10HA USER MANUAL PAGE 5 TECHNICAL DATA Power supply 230V AC +10% -15% PT1000 sensor NTC sensor resistance resistance Operating temperature characteristics +5°C to +40°C characteristics range Temp. Resistance Temp. Resistance Humidity 20% to 80% RH °C Ω °C Ω...

  • Page 6: Quick Start

    GH10HA USER MANUAL PAGE 6 QUICK START To quickly start the GH10HA Controller, perform the following actions: 1. Connect the device to the 230V AC power system (put the plug in the power outlet). ⇒ 2. Turn the Controller ON by pressing .

  • Page 7: The Gh10Ha Operation

    THE GH10HA OPERATION 6.1. Operated Heating System 6.1.1. Central Heating cycle + HUW cycle INPUTS OUTPUTS T1 – Boiler temp. P1 – HUW pump T2 – HUW temp. P2 – CH pump T3 – Flue gas temp. P3 – Fan 6.1.2.

  • Page 8: Automatic Operation Mode

    GH10HA USER MANUAL PAGE 8 6.2. Automatic operation mode. The controller may work in one of two available automatic operation modes – the AUTOMAT mode or the MAINTAIN mode. When outlet water temperature is lower than preset one, the controller works in the AUTOMAT mode. If outlet water temperature is higher or equal to preset temperature, the controller works in the MAINTAIN mode.
  • Page 9 GH10HA USER MANUAL PAGE 9 6.2.3. CH Pump Regardless of the configuration of additional pump 'F0', the CH pump: − is activated when the temperature of water leaving the boiler exceeds 85°C, and remains in operation regardless of other conditions (such as thermostat/room panel lock or DHW priority) until the outlet water temperature falls below 84 °...

  • Page 10: Manual Operation Mode

    GH10HA USER MANUAL PAGE 10 6.2.4. Maintain Operation Mode The Controller gets into that mode when the boiler temperature reaches the value set by the user in the U0 setting. This mode of operation is indicated by lighting the lower indicator on In the MAINTAIN mode the fan works with efficiency set in parameter F32 (when F32 <...

  • Page 11: Viewing Temperatures

    GH10HA USER MANUAL PAGE 11 6.4. Viewing Temperatures After pressing , the display shows water temperature at the boiler outlet. Viewing temperatures: flue gas and HUW/return is available in the AUTO and MAINTAIN modes, but only if the flue gas sensor or HUW/return sensor are properly enabled.

  • Page 12: Boiler Burnout Detection

    GH10HA USER MANUAL PAGE 12 6.7. Boiler Burnout Detection 6.7.1. No Fuel If during automatic operation the boiler outlet water temperature remains below the F08 setting for a period of time set in the F09 setting, then the Controller considers the boiler as “burned out” and enters the AL13 alarm condition.

  • Page 13: Fan Speed (U1)

    7.2. Settings are within the range of 35°C to 65°C. 7.4. Anti-Legionella Function (U3) The GH10HA controller is equipment in Anti-Legionella function which limit growth Legionella pneumophilia bacterium on HUW installation. This function is available for users when value F00 service parameter was adjust on „02”, „03”...

  • Page 14: Operating The Huw Boiler

    GH10HA USER MANUAL PAGE 14 OPERATING THE HUW BOILER The GH10HA Controller allows connection of an additional pump to control the Hot Utility Water (HUW) in the boiler. 8.1. Instalation and Connections To use the Hot Utility Water (HUW) heating option, perform the following actions:...

  • Page 15: Huw Priority

    04 – HUW pump summer mode 8.3. HUW Priority The GH10HA Controller allows to set operation of the HUW pump with priority. If you choose this mode of HUW pump operation, the hot utility water heating is a higher priority function in the Controller.

  • Page 16: Temperature Limiter (Stb)

    GH10HA USER MANUAL PAGE 16 10. TEMPERATURE LIMITER (STB) The GH10HA Controller can be equipped with an additional independent temperature limiter STB via terminals 15 and 16. WHEN THE TEMPERATURE LIMITER IS NOT USED, TERMINALS 15 AND 16 SHOULD BE SHORTED.

  • Page 17: Connection Devices To The Gh10Ha Controller

    Power Supply 230V — Power Supply 230V Fig. 1 Diagram of connection outputs and inputs devices and temperature sensor in the GH10HA controller. ANY ADDITIONAL EQUIPMENT MAY BE CONNECTED TO THE GH10HA CONTROLLER ONLY BY PERSON LICENSED TO PERFORM ELECTRICAL...

  • Page 18: Information On Labelling And Collection Of Worn Out Electrical And Electronic Equipment

    GH10HA USER MANUAL PAGE 18 12. INFORMATION ON LABELLING AND COLLECTION OF WORN OUT ELECTRICAL AND ELECTRONIC EQUIPMENT CAUTION! This symbol placed on the product or its packaging indicates the need for selective collection of worn out electrical and electronic equipment.
  • Page 20 P.P.U.H. „Geco” Sp. z o.o. Cholerzyn 376, 32-060 Liszki, Poland ph. 012/636-98-11, 636-12-90 fax. 012/636-20-02 http://www.geco.pl e-mail: geco@geco.pl...
