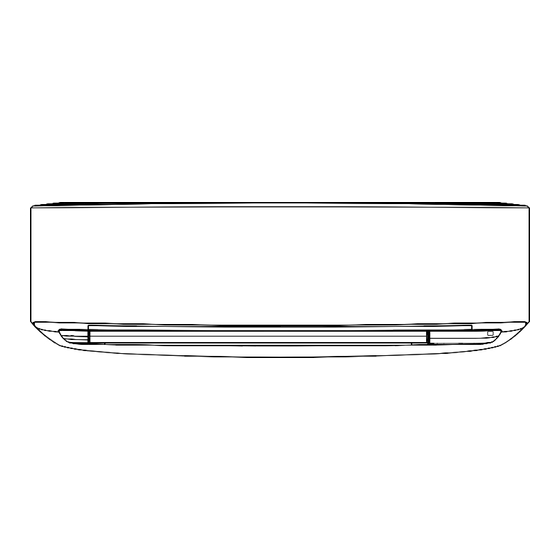

General ASY14-KE Operation Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

OPERATION MANUAL

MODEL:

* Write down the model name.

(Refer to the rating label.)

* Bitte schreiben Sie den Modellnamen auf.

(Siehe Typenschild)

* Veuillez écrire le nom du modèle.

(Consultez l'étiquette des spéciﬁ cations.)

* Anote el nombre de modelo.

(Consulte la etiqueta de caliﬁ cación).

* Annotare il nome del modello.

(Fare riferimento all'etichetta delle speciﬁ che).

* Καταγράψτε το όνομα μοντέλου.

(Ανατρέξτε στην ετικέτα τεχνικών στοιχείων.)

* Registe o nome de modelo.

(Consulte a etiqueta de classiﬁ cação.)

* Запишите название модели.

(См. на паспортной табличке.)

* Lütfen model adını not ed n z.

(Derece etiketine bakınız.)

PART No. 9387858167-03

AIR CONDITIONER (Wall-mounted type)

Before using this product, read these instructions thoroughly

and keep this manual for future reference.

BEDIENUNGSANLEITUNG

KLIMAANLAGE (Wandmontierter Typ)

Bevor Sie dieses Produkt verwenden, lesen Sie diese

Anweisungen sorgfältig durch und bewahren Sie diese

Anleitung für späteres Nachschlagen auf.

CLIMATISEUR (Type à montage mural)

Avant d'utiliser ce produit, veuillez lire attentivement ces

instructions. Conservez ce manuel pour référence future.

MANUAL DE FUNCIONAMIENTO

ACONDICIONADOR DE AIRE (Tipo montado en pared)

Antes de utilizar el producto, lea estas instrucciones detenida-

mente y conserve este manual para consultarlo en el futuro.

CONDIZIONATORE D'ARIA (Tipo montato a parete)

Prima di utilizzare l'apparecchio, leggere attentamente

le presenti istruzioni e conservare il manuale per poterlo

ΚΛΙΜΑΤΙΣΤΙΚΟ (Επιτοίχιος τύπος)

Προτού χρησιμοποιήσετε το προϊόν, διαβάστε προσεκτικά τις

παρούσες οδηγίες και φυλάξτε το παρόν εγχειρίδιο, ώστε να

μπορείτε να ανατρέχετε σε αυτό στο μέλλον.

MANUAL DE FUNCIONAMENTO

AR CONDICIONADO (Tipo mural)

Antes de utilizar este produto, leia atentamente estas instruções

e guarde este manual para referência futura.

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

КОНДИЦИОНЕР ВОЗДУХА (Настенного типа)

Перед эксплуатацией устройства внимательно

ознакомьтесь с данным руководством и сохраняйте его для

Bu ürünü kullanmadan önce ver len tal matları d kkatl ce okuyun

ve daha sonra tekrar faydalanmak üzere saklayın.

OPERATION MANUAL

MODE D'EMPLOI

MANUALE DI ISTRUZIONI

consultare il futuro.

ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

использования в будущем.

KULLANIM KILAVUZU

KLİMA (Duvara Monte t p)

Table of Contents

Need help?

Do you have a question about the ASY14-KE and is the answer not in the manual?

Questions and answers

Summary of Contents for General ASY14-KE

Page 1 OPERATION MANUAL OPERATION MANUAL AIR CONDITIONER (Wall-mounted type) Before using this product, read these instructions thoroughly and keep this manual for future reference. BEDIENUNGSANLEITUNG KLIMAANLAGE (Wandmontierter Typ) Bevor Sie dieses Produkt verwenden, lesen Sie diese Anweisungen sorgfältig durch und bewahren Sie diese Anleitung für späteres Nachschlagen auf.
Page 2: Table Of Contents
11. CLEANING AND CARE ........... 10 Improper installation or handling will cause leakage, 12. GENERAL INFORMATION ........12 electric shock, or ﬁ re. • In the event of a malfunction such as burning smell, 13.
Page 3: Preparation
WARNING CAUTION • This product is not intended for use by persons • Do not touch the aluminum ﬁ ns of the heat exchanger (including children) with reduced physical, sensory built-in this product to avoid personal injury when you or mental capabilities, or lack of experience and maintain the unit.
Page 4: Inserting Batteries
*1 : Before starting the operation, make sure that the intake grille is 3.1. Inserting batteries closed completely. Incomplete closing may aﬀ ect the proper function or performance of the product. Battery type: R03/LR03/AAA x 2 *2 : Indicator lamps light in the following conditions. It cannot see when the indicator lamp is oﬀ...
Page 5: Basic Operations
When you use the optional remote controller, the appearance [9] For Timer operations ....Refer to page 5. and the operation procedure may diﬀ er. For details, refer to the operation manual of each remote controller. Activates or deactivates the Weekly timer. : The setting must be done while the setting screen is displayed for each function.
Page 6: Airflow Settings
• In the Heating mode, NOTES: - set the temperature higher than the current room temperature. • Do not adjust the airﬂ ow direction louvers by hand. - at the beginning of the operation, the indoor unit fan rotates at a •...
Page 7: On Timer Or Off Timer
Example 2: You can specify temperature settings using the On timer in 4. Press to choose the timer operation. the Weekly timer. (Without a timer) (On timer) (Oﬀ timer) 7:00 9:00 17:00 23:00 Program 1 Program 2 Program 3 Program 4 28°C 26°C 27°C...
Page 8: Energy Saving Operation
8.2. Outdoor Unit Low Noise operation 7. ENERGY SAVING OPERATION The Outdoor Unit Low Noise operation lowers noise from the outdoor 7.1. Economy operation unit. During this operation, the rotation number of the compressor decreases, and the outdoor unit fan rotates slowly. It saves more electricity than other operation modes by changing the set NOTE: In the multi-split connection, this function cannot be used.
Page 9: Usage Precautions
WPS for same-LAN Registration to control the temperature by themselves (For example, infants, children, those with physical disabilities, elderly or “AIRSTAGE Mobile” is a trademark of FUJITSU GENERAL LIMITED. sick persons.). Android and Google Play are registered trademarks of Google LLC.
Page 10: Setting To Use Wlan Control
NOTES: 9.2. Setting to use WLAN control • This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: Step 1. Mobile app installation (1) this device may not cause interference, and 1.
Page 11: Initialization (Reset)
3. Open the WLAN adapter cover until it snaps. Initialization (reset) Initialize (reset) the WLAN adapter in the following situations: • Changing the access point • Disposing of this product • Transferring this product to a third party Unregister the air conditioner Unregister the air conditioner by using the mobile app.
Page 12: Cleaning Air Filter
3. Remove the dust in either of the following ways. CAUTION • Cleaning with a vacuum cleaner. • Washing with mild detergent and warm water. After washing, dry the • Do not touch the aluminum ﬁ ns of the heat exchanger air ﬁ...
Page 13: General Information
13. OPTIONAL PARTS unit for 2 seconds or less. 13.1. Wired remote controller 12. GENERAL INFORMATION The optional wired remote controller can be used.  Heating performance You can use wired and wireless remote controllers together. This air conditioner operates on the heat-pump principle, absorbing heat However, some functions of the wireless remote controller are restricted.
Page 14: Multi-Split Type Air Conditioner
You can use wired remote controller and WLAN control. 14. TROUBLESHOOTING However, some operations from the mobile app are restricted. Multiple remote controller WARNING You can connect two wired remote controllers to one air conditioner. In the following events, immediately stop the operation of Either remote controller can control the air conditioner.
Page 15 Immediately stop operation and turn oﬀ the electrical breaker in Airﬂ ow is weak or stops. the following cases. Then consult authorized service personnel. □ <In the Heating mode> Is [ ] indicator blinking? • The problem persists even if you perform these checks or In this case, the Automatic defrosting operation is working.

This manual is also suitable for:

Asg12-ke Asg09-ke Asg07-ke Asg07mi-ke
