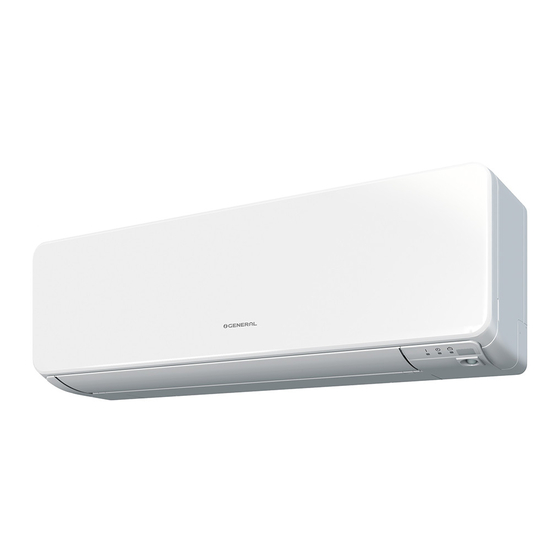

General ASHG07KGTA Service Manual

Split type room air conditioner wall mounted type
Hide thumbs

Advertisement

Table of Contents

Split type room air conditioner
Wall mounted type
Indoor unit
ASHG07KGTA
ASHG09KGTA
ASHG12KGTA
ASHG14KGTA
CO NT ENT S
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
PCB CIRCUIT DIAGRAM . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOHG07KGCA
AOHG09KGCA
AOHG12KGCA
AOHG14KGCA
1
3
5
7
8
10
11
19
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASHG07KGTA and is the answer not in the manual?

Questions and answers

Related Manuals for General ASHG07KGTA

Summary of Contents for General ASHG07KGTA

  • Page 1: Table Of Contents

    Split type room air conditioner Wall mounted type Indoor unit Outdoor unit ASHG07KGTA AOHG07KGCA ASHG09KGTA AOHG09KGCA ASHG12KGTA AOHG12KGCA ASHG14KGTA AOHG14KGCA CO NT ENT S SPECIFICATIONS....

  • Page 2: Specifications

    S P E C IFI CAT I ON S ELECTRICAL DATA FAN MOTOR AND FAN REVOLUTION NOISE LEVEL INDOOR UNIT MFD-Z30YA3N High 38 dB 40 dB ASHG07KGTA ASHG09KGTA INDOOR UNIT’S Discrimination MFE-W25VA2F Medium 33 dB 34 dB OUTDOOR UNIT AOHG07KGCA AOHG09KGCA OUTDOOR UNIT’S Discrimination...
  • Page 3 ELECTRICAL DATA FAN MOTOR AND FAN REVOLUTION NOISE LEVEL INDOOR UNIT MFD-U50XA3F High 40 dB 43 dB ASHG12KGTA ASHG14KGTA INDOOR UNIT’S Discrimination MFE-W25VA2F Medium 35 dB 36 dB OUTDOOR UNIT AOHG12KGCA AOHG14KGCA OUTDOOR UNIT’S Discrimination INDOOR UNIT Cooling 30 dB 30 dB POWER SOURCE 230 V 50 Hz Single phase...

  • Page 4: Dimensions

    D IM EN SI ON S INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA 834 mm 215 mm Drain hose 600 mm Diameter Outside Inside : 13.8 mm 2017.10.11...
  • Page 5 580 mm 109 mm OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA 799 mm 290 mm 19 mm 68 mm 16 mm 2017.09.21...

  • Page 6: Refrigerant System Diagram

    RE FRIGER A N T SY ST EM D IA GR A M Refrigerant direction Cooling ASHG07KGTA / AOHG07KGCA Heating ASHG09KGTA / AOHG09KGCA Heat exchanger (indoor unit) Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm)
  • Page 7 ASHG12KGTA / AOHG12KGCA Refrigerant direction ASHG14KGTA / AOHG14KGCA Heat exchanger Cooling (indoor unit) Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) Muffler 2-way valve 3-way valve Muffler Strainer Compressor 4-way valve Expansion valve Strainer Heat exchanger (outdoor unit) 2017.08.29...

  • Page 8: Circuit Diagram

    Thermistor Thermistor Thermistor Expansion (Pipe temp.) (Discharge (Outdoor pipe temp.) Fan motor temp. ) valve coil 4-Way valve coil CI RC UI T D I AG RAM 1 2 3 4 5 6 7 1 2 3 1 2 3 4 1 2 3 4 5 1 2 3 1 2 3 4 5 6 7...

  • Page 9: Pcb Circuit Diagram

    GREEN K16JS-1600HSE-CA0 2 TURNS DC12V UL1061 AWG26 WHITE UL1061 AWG26 WHITE MAIN PCB EARTH SM05B-SRSS-TB ASHG07KGTA : K16JQ-1600HSE-C1 WHITE 1 2 3 4 5 ASHG09KGTA : K16JQ-1601HSE-C1 INDICATOR PCB ASHG12KGTA : K16JQ-1602HSE-C1 UL1061 AWG28 DC5V UL1061 AWG28 WHITE K16JR-1600HSE-D0 FLASH...
  • Page 10 INVERTER ASSEMBLY AOHG07KGCA : EZ-0161RHUE AOHG09KGCA : EZ-0161SHUE AOHG12KGCA : EZ-0161THUE AOHG14KGCA : EZ-0161WHUE REACTOR AOYG07,09,12KGCA 13mH 8A DC Resistance 415.90m REACTOR AOYG14KGCA 15mH 10A EMI FILTER ESD-R-16C DC Resistance 323.23m TR-28-16-13 EMI FILTER EMI FILTER 1 TURN GRFC-9 W400 TO INDOOR UNIT GRFC-9 1 TURN...

  • Page 11: Error Detection

    Error display Error display OPERATION TIMER ECONOMY OPERATION TIMER ECONOMY Error code Description Error code Description lamp lamp lamp E R R O R DET EC TION lamp lamp lamp (green) (orange) (green) (green) (orange) (green) Serial communication error Display PCB microcomputers ●...

  • Page 12: Parts (Indoor Unit)

    PA R TS INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Ref. Description Part number Remote control (no brand) 9382108045 Remote control holder 9318912005 Bracket panel 9387480009 Electric filter holder 9332911008 Air clean filter assy 9317250009 2017.07.04...
  • Page 13 Wire cover assy INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Ref. Description Part number Screw cap 9387476002 Under cover L 9387477009 Under cover R 9387478006 Front panel total assy 9387596014 2017.10.11...
  • Page 14 INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Front panel total assy Grille clamper R Front panel Frontpanel Grille cover clamper L Ref. Description Part number Panel cover Air filter 9387473001 Front panel B Intake grille assy 9387756029 (GENERAL) 2017.10.11...
  • Page 15 INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Ref. Description Part number U/D louver assy 9387479003 Shaft cover 9332861006 Louver spring 9387471007 2017.09.28...
  • Page 16 INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Control box Control cover Ref. Description Part number Room thermistor holder 9387467000 Thermistor assy 9900627041 2017.08.25...
  • Page 17 Ref. Description Part number Main PCB (ASHG07) 9710782015 INDOOR UNIT Wi-Fi holder ASHG07KGTA Main PCB (ASHG09) 9710782022 ASHG09KGTA ASHG12KGTA Main PCB (ASHG12) 9710782039 ASHG14KGTA holder A Control box Main PCB (ASHG14) 9710782046 Terminal 9306489045 Display assy 9710858017 Indicato PCB 9710786013...
  • Page 18 Base total assy INDOOR UNIT ASHG07KGTA ASHG09KGTA ASHG12KGTA ASHG14KGTA Ref. Description Part number Cable guide Evaporator total assy (07, 09) 9387593006 Step motor holder assy Evaporator total assy (12, 14) 9387593013 Step motor Drain pan total assy 9387590005 holder Step motor 9900384241 2017.09.07...
  • Page 19 INDOOR UNIT ASHG07KGTA Base assy ASHG09KGTA ASHG12KGTA ASHG14KGTA Base total assy Motor cover assy Fan motor Ref. Description Part number Brushless motor (07, 09) 9603569013 Brushless motor (12, 14) 9603572013 Motor case Crossflow fan assy 9387055016 Motor cover assy Bearing D assy 9333628004 2017.08.28...

  • Page 20: Parts (Outdoor Unit)

    P A R T S OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA Ref. Description Part number Protective net assy 9322811011 Outdoor thermistor (07, 09) 9900565060 Outdoor thermistor (12, 14) 9900850012 Drain pipe 9322144003 2018.06.27...
  • Page 21 Ref. Description Part number OUTDOOR UNIT AOHG07KGCA Top panel assy 9322556028 AOHG09KGCA AOHG12KGCA Front panel assy 9322555014 AOHG14KGCA Blow grille 9322135001 Emblem 9319157009 Switch cover assy 9322570000 Cabinet right Assy 9322552020 Propeller Fan 9322136008 2017.08.28...
  • Page 22 OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA Ref. Description Part number Motor bracket assy 9322553010 Brushless motor 9603553005 Reactor assy (07, 09, 12) 9900583019 Reactor assy (14) 9900963019 Terminal 9900435028 2017.09.04...
  • Page 23 Shield panel OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA IPM spacer L PWB Holder Auxiliary plate spacer R Ref. Description Part number Service unit, Main PCB (07) 9709682104 Terminal Service unit, Main PCB (09) 9709682111 bracket assy Service unit, Main PCB (12) 9709682128 Service unit, Main PCB (14) 9709682135...
  • Page 24 Ref. Description Part number Hair pin Condenser total assy (07, 09) 9322274007 cushion Condenser total assy (12, 14) 9322275004 S-insulator B 9322535009 S-insulator F 9322536006 S-insulator H 9322537003 S-insulator V 9322731005 Hair pin cushion OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA 2017.08.30...
  • Page 25 OUTDOOR UNIT AOHG07KGCA AOHG09KGCA AOHG12KGCA AOHG14KGCA Muffler Ref. Description Part number Compressor assy (07, 09, 12) 9322427007 Compressor assy (14) 9322429001 Solenoid 9970195006 4-way valve assy 9322444004 3-way valve assy 9322475008 Expansion valve coil 9970095122 Pulse motor valve assy 9322463005 Rubber cushion 2-way valve assy...

  • Page 26: Accessories

    A C C E S SO R IE S INDOOR UNIT OUTDOOR UNIT Name and Shape Q’ty Name and Shape Q’ty Remote controller Drain pipe For outdoor unit drain piping work Remote controller holder Cloth tape Tapping screws (Large) Tapping screws (Small) Battery Wall hook bracket...
  • Page 27 1710G4652...
