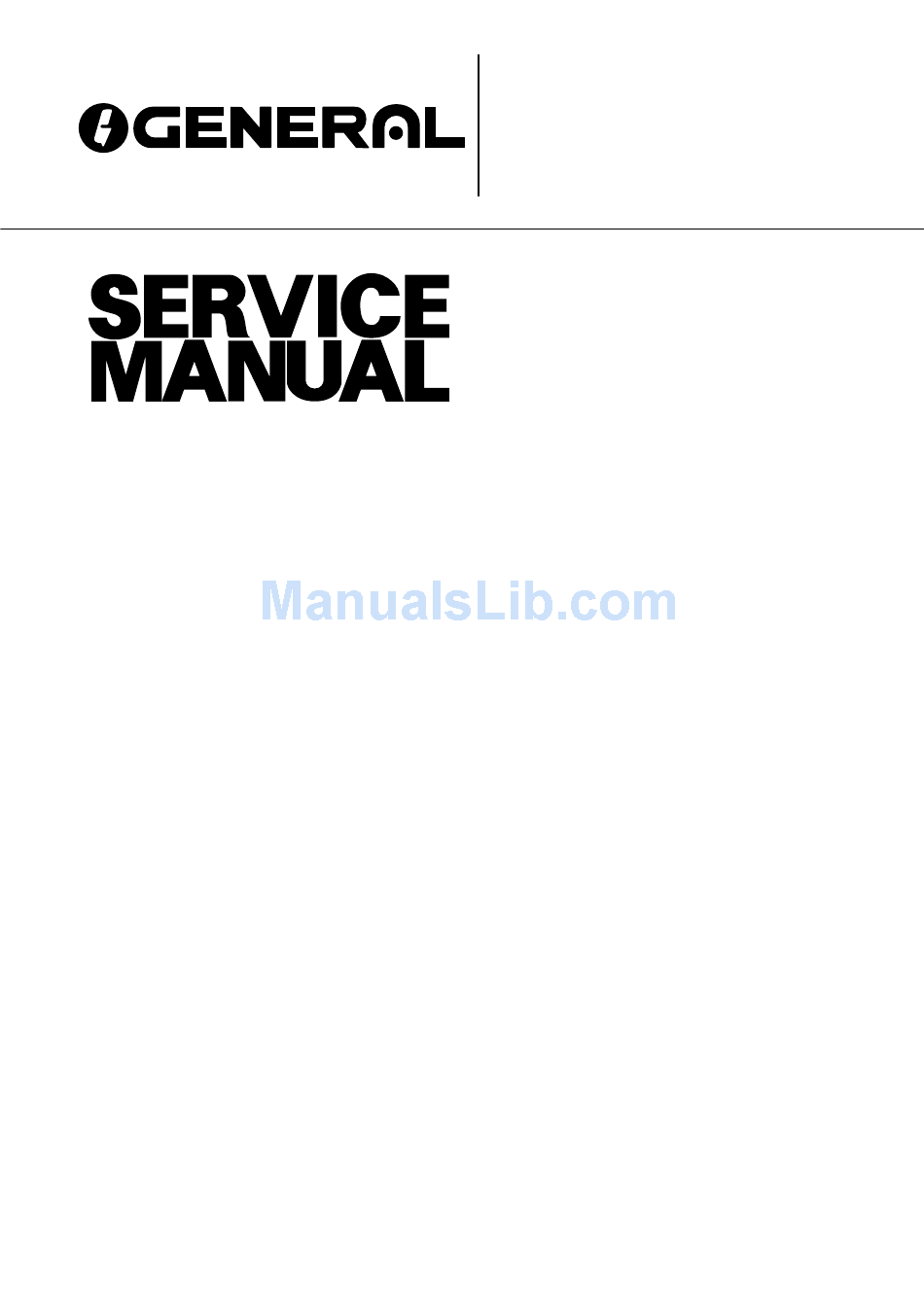

General ASG18ABAJ Service Manual

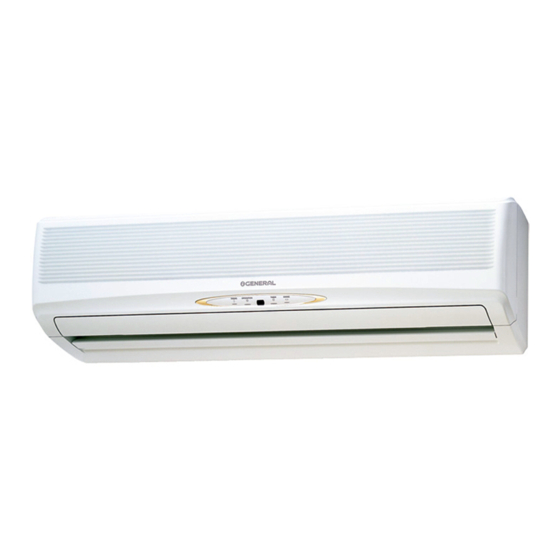

Split type room air conditioner, wall mounted type
Hide thumbs
Table of Contents

Advertisement

Quick Links

2004.10.19
SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED
Models
C O N T E N T S
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 4
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
ASG18ABAJ
AOG18ANAKH
AOG18ANAK
ASG18RBAJ
AOG18RNAKH
ASG24ABAJ
AOG24ANAKH
AOG24ANAK
ASG24RBAJ
AOG24RNAKH
ASG30RBAJ
AOG30RMADH
type

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASG18ABAJ and is the answer not in the manual?

Questions and answers

Юрий
May 31, 2025

Диаметры медных труб?

0
1 comments:
Mr. Anderson
May 31, 2025

The General ASG18ABAJ uses copper tubes with diameters of 15.88 mm (5/8") and 9.52 mm (3/8").

This answer is automatically generated

0

Related Manuals for General ASG18ABAJ

Summary of Contents for General ASG18ABAJ

  • Page 1 SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED type Models Indoor unit Outdoor unit ASG18ABAJ AOG18ANAKH AOG18ANAK ASG18RBAJ AOG18RNAKH ASG24ABAJ AOG24ANAKH AOG24ANAK ASG24RBAJ AOG24RNAKH ASG30RBAJ AOG30RMADH C O N T E N T S SPECIFICATIONS ........1 OUTLINE AND DIMENSIONS .
  • Page 2 S P E C I F I C A T I O N S INDOOR UNIT ASG18ABAJ ASG18RBAJ ASG24ABAJ ASG24RBAJ ASG30RBAJ OUTDOOR UNIT AOG18ANAKH AOG18RNAKH AOG24ANAKH AOG24RNAKH AOG30RMADH AOG18ANAK AOG24ANAK TYPE COOL COOL & HEAT COOL COOL & HEAT COOL & HEAT COOLING CAPACITY 5.40 - 5.50...
  • Page 3 O U T L I N E A N D D I M E N S I O N S INDOOR UNIT Models : ASG18ABAJ, ASG18RBAJ Unit : mm ASG24ABAJ, ASG24RBAJ ASG30RBAJ 1,120 - 2 - 2004.10.19...
  • Page 4 OUTDOOR UNIT Models : AOG18ANAKH, AOG18ANAK, AOG18RNAKH AOG24ANAKH, AOG24ANAK, AOG24RNAKH Air flow Bottom Model : AOG30RMADH - 3 - 2004.10.19...
  • Page 5 R E F R I G E R A N T S Y S T E M D I A G R A M Models : ASG18ABAJ / AOG18ANAKH INDOOR UNIT OUTDOOR UNIT Refrigerant pipe 2-Way Capillary Dryer 9.52mm(3/8") tube...
  • Page 6 Models : ASG18RBAJ / AOG18RNAKH INDOOR UNIT OUTDOOR UNIT Capillary tube Refrigerant pipe Check valve Dryer 2-Way Capillary 9.52mm(3/8") valve tube Distributor Strainer Compressor Condenser Evaporator Thermistor (Pipe) Accumulator Muffler Refrigerant pipe 3-Way 4-Way 15.88mm(5/8") valve valve Cooling Heating Models : ASG24ABAJ / AOG24ANAKH INDOOR UNIT OUTDOOR UNIT Refrigerant pipe...
  • Page 7 Models : ASG24ABAJ / AOG24ANAK INDOOR UNIT OUTDOOR UNIT Refrigerant pipe Capillary 2-Way Dryer 9.52mm(3/8") tube valve Distributor Evaporator Condenser Thermistor (Pipe) Refrigerant pipe 3-Way 15.88mm(5/8") Compressor valve Models : ASG24RBAJ / AOG24RNAKH INDOOR UNIT OUTDOOR UNIT Capillary tube Capillary Strainer tube Refrigerant pipe...
  • Page 8 Models : ASG30RBAJ / AOG30RMADH INDOOR UNIT OUTDOOR UNIT Capillary tube Capillary Dryer tube Refrigerant pipe Strainer Check valve 2-Way 9.52mm(3/8") valve Distributor Distributor Compressor Condenser Evaporator Thermistor (Pipe) Accumulator Refrigerant pipe Pressure 3-Way 4-Way check valve 15.88mm(5/8") valve valve Cooling Heating - 7 -...
  • Page 9 E R R O R C O N T E N T S Error The OPERATION, TIMER and SWING lamps operate as follows according to the error contents. Fast flashing Slow flashing Error display Error contents OPERATION TIMER SWING (RED) (GREEN) (ORANGE) Indoor unit circuit board error...
  • Page 10 < > Thermistor resistance values Indoor unit side 1) Room temperature thermistor (TH Room temperature 12.5 17.5 22.5 27.5 (°C) Resistance value 33.6 29.5 25.9 22.8 20.2 17.9 15.8 14.1 12.5 11.2 10.0 (kΩ) Room temperature 32.5 37.5 42.5 47.5 (°C) Resistance value...
  • Page 11 C I R C U I T D I A G R A M Models : ASG18ABAJ / AOG18ANAKH ASG24ABAJ / AOG24ANAKH DISPLAY BOARD FAN MOTOR TRANSFORMER CN201 CAPACITOR BLUE WHITE YELLOW GREEN BLACK WHITE WHITE BLACK CONTROL BOARD WHITE...
  • Page 12 Models : ASG18ABAJ / AOG18ANAK ASG24ABAJ / AOG24ANAK DISPLAY BOARD FAN MOTOR TRANSFORMER CN201 CAPACITOR BLUE WHITE YELLOW GREEN BLACK WHITE WHITE BLACK CONTROL BOARD WHITE CN10 CN11 GRAY GRAY GRAY INDOOR UNIT OUTDOOR UNIT THERMAL COMPRESSOR MOTOR PROTECTOR INTERNAL...
  • Page 13 Models : ASG18RBAJ / AOG18RNAKH ASG24RBAJ / AOG24RNAKH DISPLAY BOARD FAN MOTOR TRANSFORMER CN201 CAPACITOR BLUE WHITE YELLOW GREEN BLACK WHITE WHITE BLACK CONTROL BOARD WHITE CN10 CN11 GRAY BLUE BROWN GRAY GRAY INDOOR UNIT OUTDOOR UNIT COMPRESSOR INTERNAL OVERLOAD THERMAL PROTECTOR PROTECTOR...
  • Page 14 Models : ASG30RBAJ / AOG30RMADH DISPLAY BOARD FAN MOTOR TRANSFORMER CN201 CAPACITOR BLUE WHITE YELLOW GREEN BLACK WHITE WHITE BLACK CONTROL BOARD WHITE CN10 CN11 GRAY BLUE BROWN GRAY GRAY INDOOR UNIT OUTDOOR UNIT COMPRESSOR THERMAL INTERNAL PROTECTOR OVERLOAD PROTECTOR CONNECTOR TERMINAL SWITCH...
  • Page 15 C I R C U I T B O A R D C I R C U I T D I A G R A M Model : ASG18ABAJ CONTROLLER PCB ASSEMBLY ( MAIN PCB ) CN3 B3B-XASK-1-A THERMAL FUSE...
  • Page 16 Model : ASG24ABAJ INDICATOR PCB EZ-0018HSE-D CONTROLLER PCB ASSEMBLY ( MAIN PCB ) 10K <1/10W> B3B-XASK-1-A THERMAL FUSE EZ-003KWSE-C UL1430 GRAY 3 - 3 SW201 MANUAL AUTO R41 1.0K AWG26 EVQ-PAG-04K SWITCH <1/10W> 9 - 8 GRAY 201 - 8 GRAY 3 - 1 D2SB20...
  • Page 17 Models : ASG18RBAJ ASG30RBAJ CONTROLLER PCB ASSEMBLY ( MAIN PCB ) ASG18RBAJ : EZ-0034HSE-C CN3 B3B-XASK-1-A THERMAL FUSE ASG30RBAJ : EZ-0010CHSE-C UL1430 INDICATOR PCB GRAY SW201 10K x 2 AWG26 EVQ-PAG-04K EZ-0018HSE-D <1/10W> R41 1.0K <1/10W> GRAY 201-8 GRAY D2SB20 7805 R42 47 <1/10W>...
  • Page 18 Model : ASG24RBAJ INDICATOR PCB CONTROLLER PCB ASSEMBLY ( MAIN PCB ) EZ-0018HSE-D B3B-XASK-1-A THERMAL FUSE EZ-003YHSE-C 10K <1/10W> x 2 UL1430 CN3-3 GRAY SW201 R41 1.0K AWG26 EVQ-PAG-04K <1/10W> I C2 CN9-8 GRAY CN201-8 CN3-1 GRAY 7805 R42 47 <1/10W>...
  • Page 19 D I S A S S E M B L Y I L L U S T R A T I O N Models : ASG18ABAJ ASG18RBAJ ASG24ABAJ ASG24RBAJ 473-1 574-2 163-2 564-2 160-1 855-2 574-1 855-1 178-1 338-1 338-2...
  • Page 20 Model : ASG30RBAJ 473-1 146-2 574-2 163-2 146-1 160-1 855-1 574-1 855-2 338-1 178-1 69-1 338-2 178-1 963-1 69-2 - 19 - 2004.10.19...
  • Page 21 Models : ASG18ABAJ, ASG18RBAJ ASG24ABAJ, ASG24RBAJ ASG30RBAJ - 20 - 2004.10.19...
  • Page 22 Models : ASG18ABAJ, ASG18RBAJ ASG24ABAJ, ASG24RBAJ ASG30RBAJ - 21 - 2004.10.19...
  • Page 23 Models : ASG18ABAJ, ASG18RBAJ ASG24ABAJ, ASG24RBAJ ASG30RBAJ - 22 - 2004.10.19...
  • Page 24 Models : AOG18ANAK, AOG18ANAKH AOG18RNAKH, AOG24ANAK AOG24ANAKH, AOG24RNAKH - 23 - 2004.10.19...
  • Page 25 Model : AOG30RMADH - 24 - 2004.10.19...
  • Page 26 Model : AOG30RMADH - 25 - 2004.10.19...
  • Page 27 Models : AOG18ANAK, AOG18ANAKH AOG24ANAK, AOG24ANAKH 218-3 823-2 824-4 989-1 989-2 Models : AOG18RNAKH AOG24RNAKH 218-3 823-2 824-4 815-3 989-1 989-2 Model : AOG30RMADH 824-4 823-2 815-3 218-3 989-1 989-2 - 26 - 2004.10.19...
  • Page 28 Models : AOG18ANAK, AOG18ANAKH AOG18RNAKH, AOG24ANAK AOG24ANAKH, AOG24RNAKH Model : AOG30RMADH 355-1 - 27 - 2004.10.19...
  • Page 29 Model : AOG18ANAK 47-1 115-3 115-2 115-3 47-1 115-2 178-2 115-1 - 28 - 2004.10.19...
  • Page 30 Model : AOG18ANAKH 47-1 735-3 13-1 13-2 - 29 - 2004.10.19...
  • Page 31 Model : AOG18RNAKH 115-1 762-2 178-2 14-1 115-2 762-3 762-4 115-3 54-1 - 30 - 2004.10.19...
  • Page 32 Model : AOG24ANAK 762-1 115-1 115-2 47-1 115-2 115-3 178-2 - 31 - 2004.10.19...
  • Page 33 Model : AOG24ANAKH - 32 - 2004.10.19...
  • Page 34 Model : AOG24RNAKH 330-2 115-1 178-2 14-1 772-3 115-3 115-2 762-1 14-1 115-3 47-1 54-1 - 33 - 2004.10.19...
  • Page 35 Model : AOG30RMADH 762-1 330-1 82-1 762-1 18-4 384-2 808-1 47-1 54-2 14-1 348-4 54-1 - 34 - 2004.10.19...
  • Page 36 ASG18ABAJ, ASG18RBAJ ASG24ABAJ, ASG24RBAJ ASG30RBAJ P A R T S L I S T When you order parts, please make a photocopy of this page and fill the number of the parts in the "Order" column. INDOOR UNIT Ref. Part No.
  • Page 37 ASG18ABAJ, ASG18RBAJ ASG24ABAJ, ASG24RBAJ ASG30RBAJ When you order parts, please make a photocopy of this page and fill the number of the parts in the "Order" column. INDOOR UNIT (Continued) Part No. Ref. Ord. Description ASG18ABAJ ASG18RBAJ ASG24ABAJ ASG24RBAJ ASG30RBAJ...
  • Page 38 AOG18ANAKH, AOG18ANAK AOG18RNAKH, AOG24ANAKH AOG24ANAK, AOG24RNAKH AOG30RMADH When you order parts, please make a photocopy of this page OUTDOOR UNIT and fill the number of the parts in the "Order" column. Part No. Ref. Ord. Description Q'ty AOG18ANAKH AOG18ANAK AOG18RNAKH AOG24ANAKH AOG24ANAK AOG24RNAKH...
  • Page 39 AOG18ANAKH, AOG18ANAK AOG18RNAKH, AOG24ANAKH AOG24ANAK, AOG24RNAKH AOG30RMADH When you order parts, please make a photocopy of this page OUTDOOR UNIT (Continued) and fill the number of the parts in the "Order" column. Part No. Ref. Ord. Description Q'ty AOG18ANAKH AOG18ANAK AOG18RNAKH AOG24ANAKH AOG24ANAK...
  • Page 40 S T A N D A R D A C C E S S O R I E S OUTDOOR UNIT ACCESSORIES INDOOR UNIT ACCESSORIES (18,000 • 24,000BTU model) Name and Shape Part No. Name and Shape Part No. Wall hook bracket Drain pipe 9303029015 [Heat &...
  • Page 41 0404J2579 April 2004 Printed in Japan 2004.10.19...
